MAC Feeder Uncoiler Machine Leveling Feed Stamping Automation Equipment
MAC Feeder Uncoiler Machine Leveling Feed Stamping Automation Equipment
MAC Feeder Uncoiler Machine Leveling Feed Stamping Automation Equipment
MAC Feeder Uncoiler Machine Leveling Feed Stamping Automation Equipment
MAC Feeder Uncoiler Machine Leveling Feed Stamping Automation Equipment
MAC Feeder Uncoiler Machine Leveling Feed Stamping Automation Equipment
Specifications
Brand Name :
RUIHUI
Certification :
CE, ISO certification
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 Sets Per Month
Delivery Time :
30 work days
Packaging Details :
Wooden Box or Vacuum Packing
Stock Width(mm) :
50~600
Stock Thickness(mm) :
0.2~3.2
Line Speed(m/min) :
16~24
Coil Weight(Kg) :
3000/5000
Work Roll Number(Pcs) :
upper 6/lower 5
Main Motor(Kw) :
AC 4.5
Warranty Period :
12 Months
Description

Stamping automation equipment, MAC feeder, Ruihui leveling feed stamping

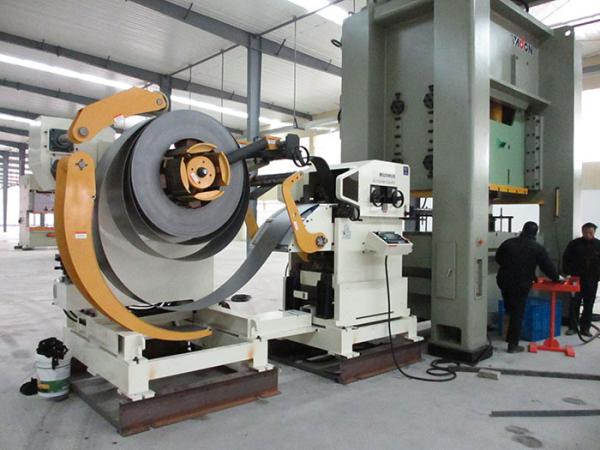

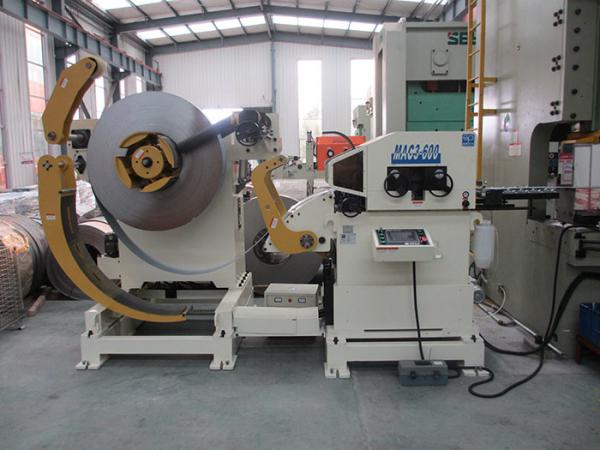

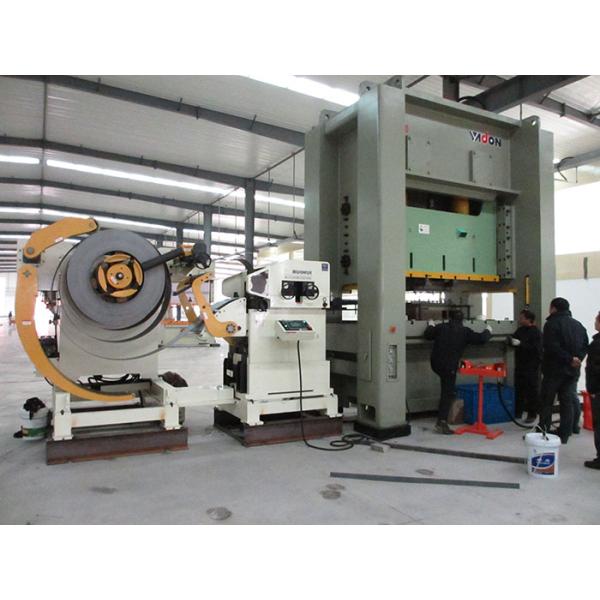

The three-in-one feeder has three functions: unwinding, leveling and feeding. It combines mechanical, hydraulic, electrical and automation technologies to represent the world's most advanced stamping automation equipment technology.

It has the advantages that many traditional split stamping production lines can't match, high leveling feeding precision, good synchronism, high production efficiency, high degree of automation, simple and convenient operation, excellent performance, easy maintenance and long service life.

MAC series three-in-one feeder has excellent product performance, new unwinding, leveling, feeding structure, new type of material, supporting material, folding device, full set of hydraulic power system, leveling and feeding integrated head The perfect automatic lubrication system is equipped with a stand-alone operation control platform.

It can be fully automated, easy to operate, high degree of automation, high production efficiency, good quality of stamping finished products, and very simple and convenient to maintain and unwind, feeding, feeding, leveling, feeding and debugging.
MAC Feeder Uncoiler Machine Leveling Feed Stamping Automation Equipment
Specification:

ModelMAC2-400MAC2-500MAC2-600MAC2-800
Stock Width(mm)50-40050-50050-60050-800
Stock Thickness(mm)0.3~3.20.3-3.20.3-3.2-3.2
Max.Coil Weight(kg)300030003000500050007000
Max.Coil O.D.(mm)120012001200
Coil I.D.(mm)88508508
Feed Length(mm)~500*~500*~500*~500*
Max. Line Speed(m/min)16-2416-2416-2416-24
Work Roll Number(pieces)upper 6
lower 5		upper 6
lower 5		upper 6
lower 5		upper 6
lower 5
Feed Roll Number(set)1111
Main Motor(kw)AC2.9AC2.9AC4.4AC4.4
Mandrel Expansionhydraulichydraulichydraulichydraulic
Reel Motor(kw)1.51.51.52.22.23.7
Power(V)3 Phase 220V/380V/50HZ
Operating Air(Mpa)0.490.490.490.49


Straigtening performance:

tock Thicknees (mm)Stock Width (mm)
0.3400500600800
0.4
0.6
0.8
1.0
1.2
1.4
1.6470470
1.8400400
2.0360360
2.3300300300300
2.5230230230230
2.8150150150150
3.2110110110110


*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi
MAC Feeder Uncoiler Machine Leveling Feed Stamping Automation Equipment
MAC Feeder Uncoiler Machine Leveling Feed Stamping Automation Equipment

1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.
2. After-Sales service:We have an efficient team to meet 24*7 all day service.
3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
4. Engineers can provide service machinery overseas.
