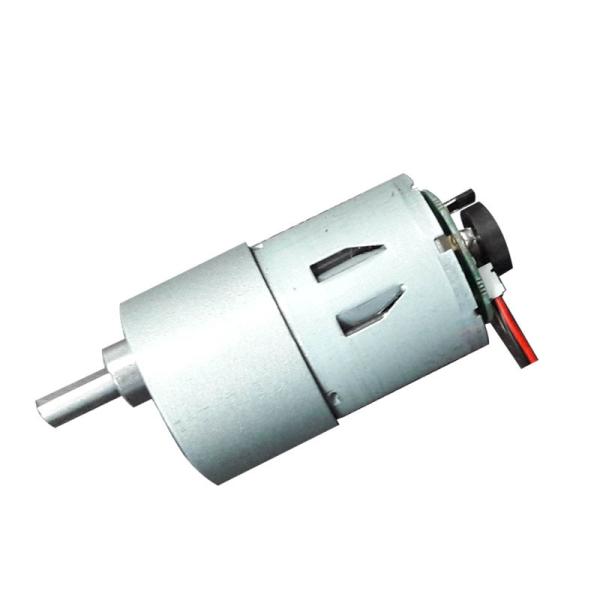

0.1 - 100.0W Output High Torque DC Motor Encoder 3V 6V 12V Robot Long lifespan
0.1 - 100.0W Output High Torque DC Motor Encoder 3V 6V 12V Robot Long lifespan
Specifications
Brand Name :
Hofon
Model Number :
GM37-3429SA+EN
Certification :
RoHS/ISO9001:2000/ISO14001/TS16949
Place of Origin :
ShenZhen China
MOQ :
2000PCS
Price :
Negotiation
Supply Ability :
5000KPCS/Month
Delivery Time :
35Days
Packaging Details :
Carton Box
Voltage Range :
6V Or Customized
Material :
Metal Gear High precision gear
Diameter :
37mm
No Load Speed :
14RPM
No Load Current :
50mA
Rated Load Torque :
4100g.cm
Rated Load Speed :
11RPM
Rated Load Current :
220mA
Gear Ratio :
286:1
Description

25mm With Hall Encoder 5V / 6V / 12V Metal Gear-box motor DC Gear Motor For Robot

  • All metal gear
  • With hall encoder, more accurate positioning
  • DC Worm Gear-Box Motor
  • Diameter : Φ25.0mm
  • Output : APPROX 0.1~1.0W
  • Noise Level : Less than 50dB
  • Low noise, stable performance, quality assurance


Typical Applications

  • Fully automatic electronic door lock

  • Office Automatic Equipments
  • Printer/paper Feeder
  • Bank Equipments Safe Box
  • Ad Equipment
  • Analysis Instrument/electronic
  • Game Machine
  • Household Appliances
  • Electronic Door Lock


Specifications

The following specifications are only representative of one of our models. Other performance parameters can be customized according to customer requirements

Reduction Ratio 1 : 9.6 1 : 26.9 1 :35 1 : 47 1 : 78 1 : 103 1:130 1:172 1:227 1:286 1:378 1:499

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A mN.m g.cm w mN.m g.cm A
GM25-370CH-16240-286+EN 5.0-8.0 6.0V 14 0.050 11 0.220 401 4100 0.480 2196.0 22400 0.93
　 　 　 　 　 　 　 　 　 　 　 　 　
　 　 　 　 　 　 　 　 　 　 　 　 　


Drawing


0.1 - 100.0W Output High Torque DC Motor Encoder 3V 6V 12V Robot Long lifespan


Product Details Show


0.1 - 100.0W Output High Torque DC Motor Encoder 3V 6V 12V Robot Long lifespan

Competitive Advantage

  • 16 years experience in manufacturing motor and gearbox motor
  • Experienced Staff: average 12 years experience in R&D , ODM & OEM
  • International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
  • Competitive Price
  • High Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 20-25 working days after payment
  • Quality Approvals
  • Small Orders Accepted
  • Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc

Quality Cotrol Test

  • Reliability Test & Laboratory
  • Noise Test
  • Water-proof Test
  • Life Test
  • Impact Test
  • Storage Test
  • Salt Spray Test
  • Environmental Related Substance
