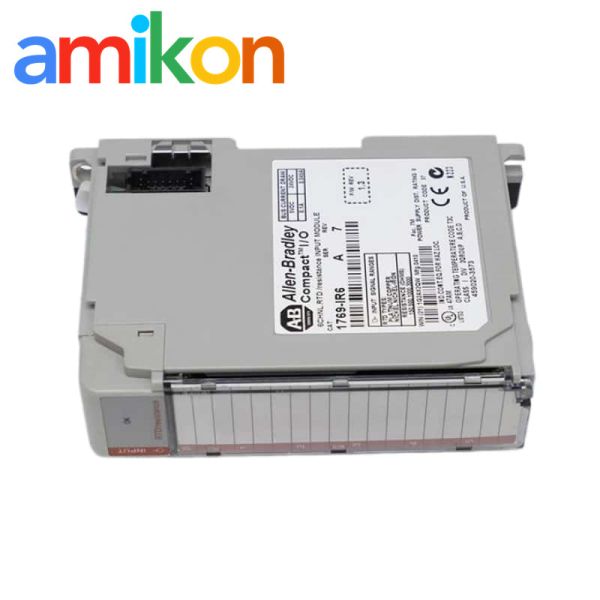

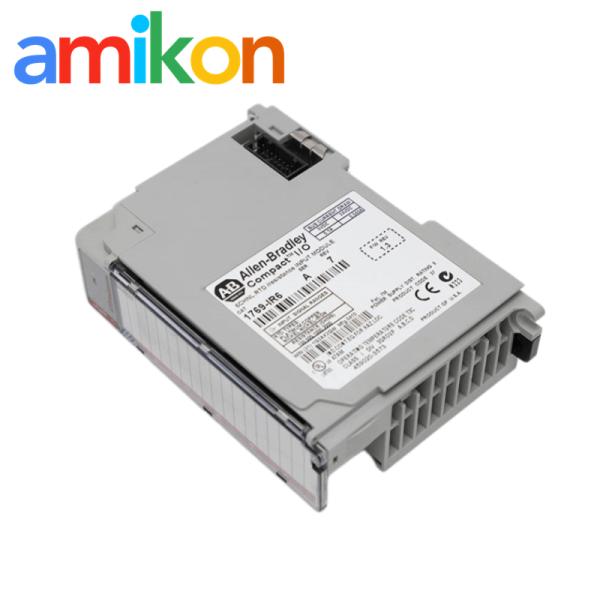

Allen Bradley 1769-IR6 Resistance Input Module with 6 RTD Inputs Sigma Delta Converter
Allen Bradley 1769-IR6 Resistance Input Module with 6 RTD Inputs Sigma Delta Converter
Allen Bradley 1769-IR6 Resistance Input Module with 6 RTD Inputs Sigma Delta Converter
Allen Bradley 1769-IR6 Resistance Input Module with 6 RTD Inputs Sigma Delta Converter
Allen Bradley 1769-IR6 Resistance Input Module with 6 RTD Inputs Sigma Delta Converter
Allen Bradley 1769-IR6 Resistance Input Module with 6 RTD Inputs Sigma Delta Converter
Specifications
Brand Name :
Allen Bradley
Model Number :
1769-IR6
Place of Origin :
USA
MOQ :
1
Price :
66USD
Payment Terms :
T/T
Supply Ability :
in stock
Delivery Time :
2-3 work days
Packaging Details :
Brand new and original
Current draw @ 5.1V :
100 mA
Current draw @ 24V :
35 mA
Heat dissipation, max :
1.5 W
Converter type :
Sigma Delta
Common mode voltage range :
±10V DC max
Nonlinearity :
±0.05%
Slot width :
1
Module location :
DIN rail or panel mount
Description
Allen Bradley 1769-IR6 Resistance Input Module
Allen Bradley 1769-IR6 Resistance Input Module with 6 RTD Inputs Sigma Delta Converter
The 1769-IR6 module receives and stores digitally converted analog data from RTDs or other resistance inputs, such as potentiometers. The module supports connections from any combination of up to 6 RTDs or other resistance inputs, their associated temperature ranges, and the analog input signal ranges that each channel supports. Each of the 6 input channels is individually configurable for a specific input device and provides open- or short-circuit and over- or under-range indication.
Hardware Components
Allen Bradley 1769-IR6 Resistance Input Module with 6 RTD Inputs Sigma Delta Converter

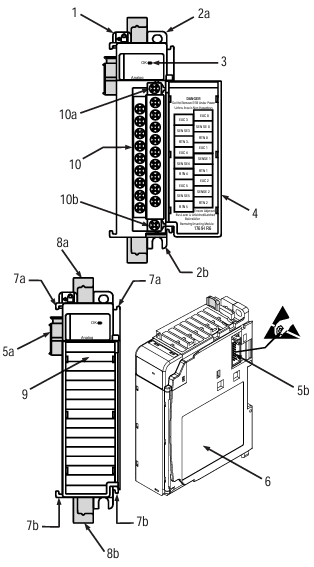

Item Description
1 Bus lever (with locking function)
2a Upper panel mounting tab
2b Lower panel mounting tab
3 Module status LED
4 Module door with terminal identification label
5a Movable bus connector with female pins
5b Stationary bus connector with male pins
6 Nameplate label
7a Upper tongue-and-groove slots
7b Lower tongue-and-groove slots
8a Upper DIN rail latch
8b Lower DIN rail latch
9 Write-on label (user ID tag)
10 Removable Terminal Block (RTB) with finger-safe cover
10a RTB upper retaining screw
10b RTB lower retaining screw
RTD Configuration Options
Allen Bradley 1769-IR6 Resistance Input Module with 6 RTD Inputs Sigma Delta Converter
For a 3-wire configuration, the module can compensate for a maximum cable length associated with an overall cable impedance of 25 ohms.

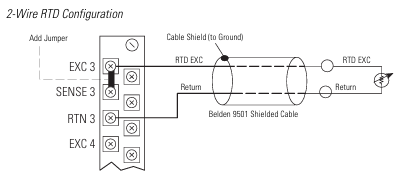

  • 2-wire RTD, which is composed of an RTD EXC (excitation) lead wire and a RTN (return) lead wire

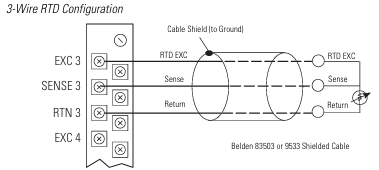

  • 3-wire RTD, which is composed of a Sense and 2 RTD lead wires (RTD EXC and RTN)

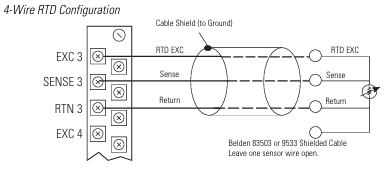

  • 4-wire RTD, which is composed of a Sense and 2 RTD lead wires (RTD EXC and RTN). The second sense wire of a 4-wire RTD is left open.
Allen Bradley 1769-IR6 Resistance Input Module with 6 RTD Inputs Sigma Delta Converter Allen Bradley 1769-IR6 Resistance Input Module with 6 RTD Inputs Sigma Delta Converter Allen Bradley 1769-IR6 Resistance Input Module with 6 RTD Inputs Sigma Delta Converter Allen Bradley 1769-IR6 Resistance Input Module with 6 RTD Inputs Sigma Delta Converter
