Allen Bradley 1794-OB8EP Digital Output Module with 8 Current Sourcing Outputs
Allen Bradley 1794-OB8EP Digital Output Module with 8 Current Sourcing Outputs
Allen Bradley 1794-OB8EP Digital Output Module with 8 Current Sourcing Outputs
Allen Bradley 1794-OB8EP Digital Output Module with 8 Current Sourcing Outputs
Allen Bradley 1794-OB8EP Digital Output Module with 8 Current Sourcing Outputs
Allen Bradley 1794-OB8EP Digital Output Module with 8 Current Sourcing Outputs
Specifications
Brand Name :
Allen Bradley
Model Number :
1794-OB8EP
Place of Origin :
USA
MOQ :
1
Price :
66USD
Payment Terms :
T/T
Supply Ability :
in stock
Delivery Time :
2-3 work days
Packaging Details :
Brand new and original
Number of outputs :
8, current, sourcing
On-state voltage, output min :
19.2V DC
On-state voltage, output nom :
24V DC
Off-state leakage current, max :
0.5 mA
FlexBus current :
73 mA @ 5V DC
Power dissipation, max :
5.5 W @ 31.2V DC
Thermal dissipation, max :
18.8 BTU/hr @ 31.2V DC
Fusing :
Outputs are electronically fused
Description
Allen Bradley 1794-OB8EP Digital Output Module Programming
Allen Bradley 1794-OB8EP Digital Output Module with 8 Current Sourcing Outputs

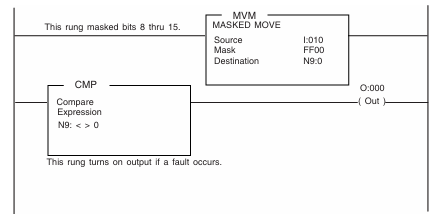

If your program automatically checks for fault bits, bits 8 through 15 of read word 1 must be masked. This sample program demonstrates configuration for a module at rack address 1, group 0. Add similar rungs to your existing program structure.
Allen Bradley 1794-OB8EP Digital Output Module with 8 Current Sourcing Outputs
1794-OB8EP Fault Reset Procedures
Fault conditions can be cleared using three methods:
  • Press the fault reset button located on the front panel of the module
  • Toggle the output reset bit (write word 1, bit 08)
  • Cycle backplane power to the module
Using the 1794-OB8EP Reset Button
When pressing the reset button, the fault indicator for the affected output turns off for approximately 1.2 seconds. Following this delay, the faulted output attempts to turn on. If the external condition causing the fault has been corrected, the output will remain active, the fault indicator will stay off, and the status indicator will illuminate.
Allen Bradley 1794-OB8EP Digital Output Module with 8 Current Sourcing Outputs
Supply Chain & Quality Assurance
  • 20-Year Supply Chain Intelligence: Specialized sourcing for hard-to-find components
  • MRO Optimized: Extensive catalog featuring 100+ global brands including ABB, Bently Nevada, and ICS Triplex
  • Vetted Performance: Every component undergoes technical expert verification before dispatch
  • Rapid Transit: Same-day processing to minimize operational downtime
"Listen Think Solve" — Because every minute of downtime represents a lost opportunity
Allen Bradley 1794-OB8EP Digital Output Module with 8 Current Sourcing Outputs
Technical Services & Support
Allen Bradley 1794-OB8EP Digital Output Module with 8 Current Sourcing Outputs
DCS & PLC Specialists
Expertise across all major industrial automation platforms
New-Old-Stock (NOS)
Brand new components for systems that have reached End-of-Life (EOL)
1-Year Warranty
We guarantee the functionality of every part we ship
Order Processing & Logistics
Swift Quote Turnaround
Receive factory-direct pricing within hours
Secure Handling
Professional anti-static packaging and high-care logistics
Direct Bank Transfer
Simplified 100% prepayment for fast international clearance
Technical Inquiry Contact
Miya Zheng | Senior Sales Manager
Email: sales@amikon.cn
Mobile/WhatsApp: +86 180 2077 6792
Original Parts. | Global Delivery. | Technical Clarity.
Allen Bradley 1794-OB8EP Digital Output Module with 8 Current Sourcing Outputs
Compatible Allen Bradley Part Numbers
Industrial Automation Components Catalog
2711P-T12W22D9P-B/B 2094-BC02-M02-M 81007-465-51-R 2711P-T19C22D9P
20AD1P1A3AYNNNC0 80026-044-06-R 2711R-T7T 2711PC-T6C20D8
81001-450-52-R 2094-BM01-S 2711P-T6M5D8 81001-451-63-R
2094-BC02-M02-S 22B-A8P0N104 80190-480-01-R 2094-BM01-M
20-COMM-E 80190-240-02-R 2094-BMP5-M 80190-380-01-R
81001-956-53-R 2094-EN02D-M01-S0 80190-380-02-R 80026-096-01-R
