Allen Bradley 1756-OB16E ControlLogix 16 Point Digitally Fused Output Module with 10-31.2 VDC
Allen Bradley 1756-OB16E ControlLogix 16 Point Digitally Fused Output Module with 10-31.2 VDC
Allen Bradley 1756-OB16E ControlLogix 16 Point Digitally Fused Output Module with 10-31.2 VDC
Allen Bradley 1756-OB16E ControlLogix 16 Point Digitally Fused Output Module with 10-31.2 VDC
Allen Bradley 1756-OB16E ControlLogix 16 Point Digitally Fused Output Module with 10-31.2 VDC
Allen Bradley 1756-OB16E ControlLogix 16 Point Digitally Fused Output Module with 10-31.2 VDC
Specifications
Brand Name :
Allen Bradley
Model Number :
1756-OB16E
Place of Origin :
USA
MOQ :
1
Price :
66USD
Payment Terms :
T/T
Supply Ability :
in stock
Delivery Time :
2-3 work days
Packaging Details :
Brand new and original
Output Delay Time, OFF to ON :
70 µs nom/1 ms max
Output Delay Time, ON to OFF :
360 µs nom/1 ms max
Backplane Current at 24 Volts :
2 milliamperes
Backplane Current at 5.1 Volts :
250 milliamperes
Thermal Dissipation :
13.98 BTU/hr @ 60 °C (140 °F)
Output Voltage range :
10-31.2 VDC
Nominal output voltage :
24VDC
Voltage :
12-24 Volts DC
Description
Allen Bradley 1756-OB16E ControlLogix 16 Point Digitally Fused Output Module with 10-31.2 VDC
Product Description
  • High-performance 16-point digitally fused output module for ControlLogix systems
  • Ideal for industrial automation applications
  • Operating voltage range: 10-30 VDC (nominal 24 VDC)
  • Maximum output current: 1 A per point at 60°C
  • Features electronic keying for secure installation
  • Fast switching with OFF-to-ON delay of 70 µs and ON-to-OFF delay of 360 µs
  • Low backplane current consumption: 2 mA at 24 V, 250 mA at 5.1 V
  • Thermal dissipation: 13.98 BTU/hr at 60°C
  • Compact dimensions: 23.3 * 18.3 * 5.3 cm
  • Weight: 0.35 kg
  • Model number: 1756-OB16E (spare: 1756OB16E)
  • Made in USA, shipped from Xiamen, China
Allen Bradley 1756-OB16E ControlLogix 16 Point Digitally Fused Output Module with 10-31.2 VDC

Output Module Status Indicators by Catalog Number

Allen Bradley 1756-OB16E ControlLogix 16 Point Digitally Fused Output Module with 10-31.2 VDC

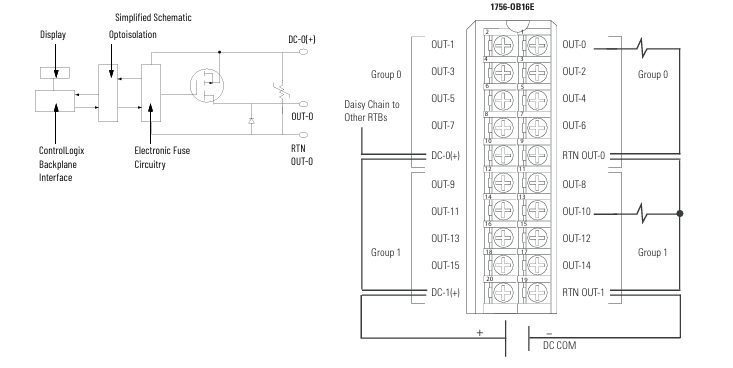

 1756-OB16E, 1756-OB16EK
ControlLogix DC (10...31.2V) electronically fused output module Allen Bradley 1756-OB16E ControlLogix 16 Point Digitally Fused Output Module with 10-31.2 VDC
Allen Bradley 1756-OB16E ControlLogix 16 Point Digitally Fused Output Module with 10-31.2 VDC
