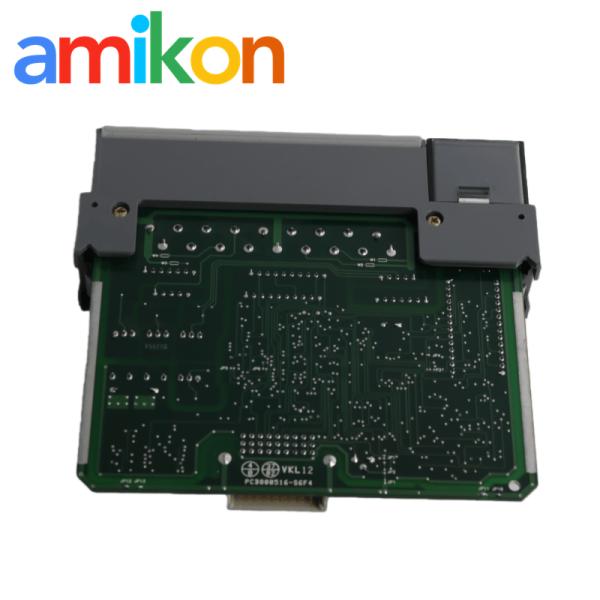

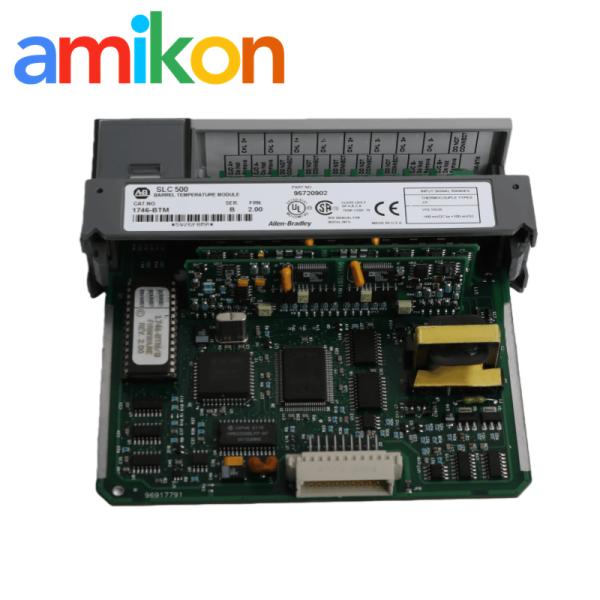

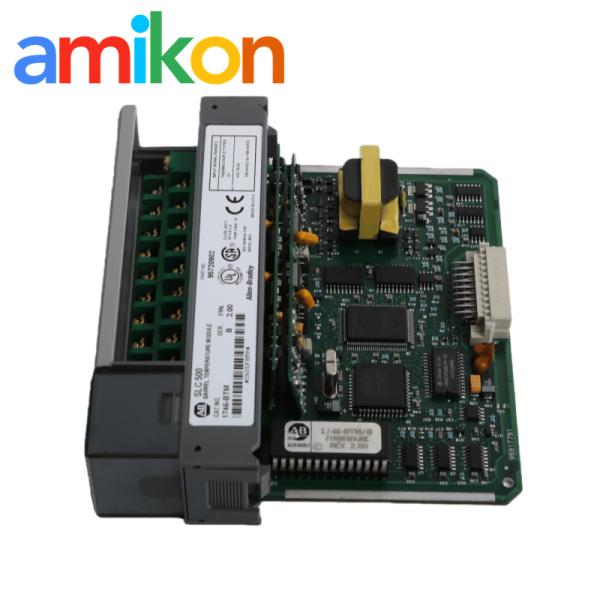

Allen Bradley 1746-BTM Barrel Temperature Module with 4 PID Loops 16-bit Resolution
Allen Bradley 1746-BTM Barrel Temperature Module with 4 PID Loops 16-bit Resolution
Allen Bradley 1746-BTM Barrel Temperature Module with 4 PID Loops 16-bit Resolution
Allen Bradley 1746-BTM Barrel Temperature Module with 4 PID Loops 16-bit Resolution
Allen Bradley 1746-BTM Barrel Temperature Module with 4 PID Loops 16-bit Resolution
Allen Bradley 1746-BTM Barrel Temperature Module with 4 PID Loops 16-bit Resolution
Specifications
Brand Name :
Allen Bradley
Model Number :
1746-BTM
Place of Origin :
USA
MOQ :
1
Price :
66USD
Payment Terms :
T/T
Supply Ability :
in stock
Delivery Time :
2-3 work days
Packaging Details :
Brand new and original
Product Model :
1746-BTM
Product Parameters :
Barrel Temperature Module
weight :
0.4 kg
Analog Inputs :
Thermocouple
Backplane Current (5 Volts) :
110 milliamps
Backplane Current (24 Volts) :
85 milliamps
Color :
Brand New
Lead Time :
In Stock
Description
Allen Bradley 1746-BTM Barrel Temperature Module with 4 PID Loops 16-bit Resolution

The Allen Bradley 1746-BTM is a Barrel Temperature Control Module for the SLC 500 system. It is an intelligent I/O module that accommodates 4 zones of autotuned heat/cool PID loops for temperature control applications.

Allen Bradley 1746-BTM Barrel Temperature Module with 4 PID Loops 16-bit Resolution
  • Four independent temperature control loops with autotune PID capability
  • Supports Type J and K thermocouples for process variable input
  • Configurable response to broken sensor detection
  • Selectable barrel control mode (ON/OFF) for different heating/cooling applications
  • 16-bit analog-to-digital converter with 0.1° resolution
  • Supports both Celsius and Fahrenheit temperature readings
  • User-configurable high and low alarms with deadband for hysteresis
  • Self-calibration capability (requires external reference)
Technical Specifications
  • 4 thermocouple input channels (Type J and K)
  • 16-bit A/D converter resolution (0.1° resolution)
  • Heat and cool CV signals as numeric % values or TPO bits
  • Temperature display in °C or °F
  • Input open-circuit detection
  • Isolated thermocouple inputs for each PID loop
Allen Bradley 1746-BTM Barrel Temperature Module with 4 PID Loops 16-bit Resolution
What is the measurement resolution?

It features a 16-bit A/D converter, providing 0.1° resolution.

Can it display both °C and °F?

Yes, temperature readings can be shown in either Celsius or Fahrenheit.

Are alarms supported?

Yes. Each loop allows user-configurable high and low alarms with adjustable deadband for hysteresis. Alarm status is available in the SLC processor data table.

What is barrel control mode?

Barrel mode ON/OFF: Used for heat-only or alternating heat/cool applications. Non-barrel mode: Supports heat-only, cool-only, or independent heat/cool actions.

Does it support self-calibration?

Yes, with an external reference required.

How does the start-up algorithm work?

A built-in algorithm minimizes overshoot during startup to stabilize temperature quickly.

Allen Bradley 1746-BTM Barrel Temperature Module with 4 PID Loops 16-bit Resolution
