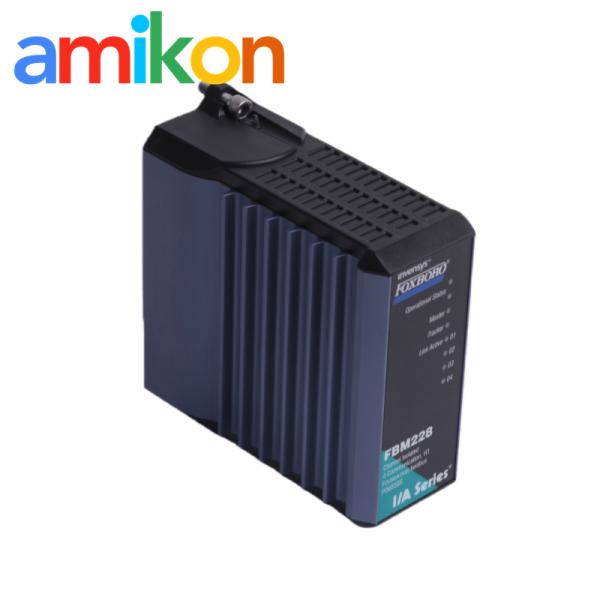

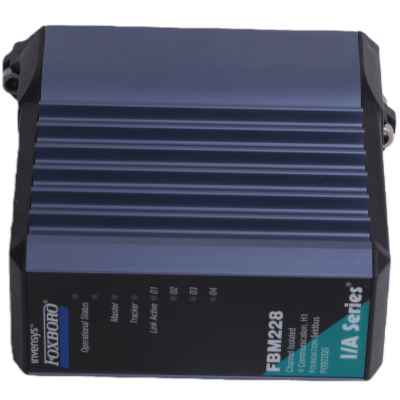

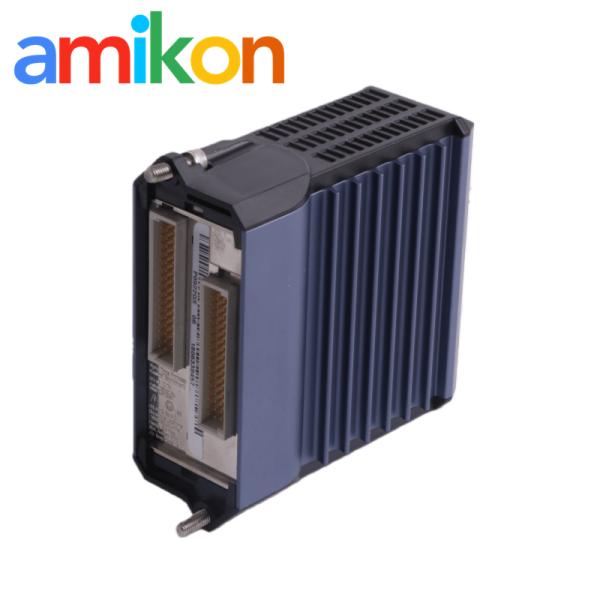

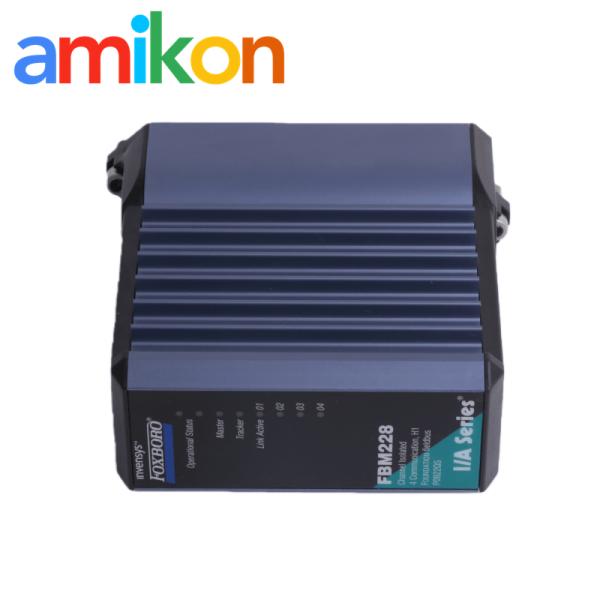

Foxboro FBM228 P0922QS Foundation Fieldbus Redundant Module with 24Vdc Input Voltage
Foxboro FBM228 P0922QS Foundation Fieldbus Redundant Module with 24Vdc Input Voltage
Foxboro FBM228 P0922QS Foundation Fieldbus Redundant Module with 24Vdc Input Voltage
Foxboro FBM228 P0922QS Foundation Fieldbus Redundant Module with 24Vdc Input Voltage
Foxboro FBM228 P0922QS Foundation Fieldbus Redundant Module with 24Vdc Input Voltage
Foxboro FBM228 P0922QS Foundation Fieldbus Redundant Module with 24Vdc Input Voltage
Specifications
Brand Name :
FOXBORO
Model Number :
FBM228 P0922QS
Place of Origin :
USA
MOQ :
1
Price :
66USD
Payment Terms :
T/T
Supply Ability :
in stock
Delivery Time :
2-3 work days
Packaging Details :
Brand new and original
Input voltage range :
24Vdc+5%,-10%
Consumption :
5.0W
Heat Dissipation :
5.0W
Storage Altitude :
-300 to +12,000 m (-1,000 to +40,000 ft)
Storage Temperature :
-40 to +70°C (-40 to +158°F)
Operating Relative Humidity :
5 to 95%(noncondensing)
Storage Relative Humidity :
5 to 95%(noncondensing)
Vibration :
7.5 m/s 2 (0.75 g) from 5 to 500 Hz
Description
Foxboro FBM228 P0922QS Foundation Fieldbus Redundant Module with 24Vdc Input Voltage
The FOUNDATION™ Fieldbus Redundant Module (FBM228) provides a high-capacity interface between FOUNDATION fieldbus devices and Foxboro™ DCS. The FBM228, which can be used in single or redundant configurations, supports four H1 Links for a maximum of 64 fieldbus devices.
The H1 fieldbus is a bi-directional, all-digital communication bus designed for the integration of process measurement and control devices. The H1 bus provides all the benefits of the traditional 4 to 20 mA standard, while providing greater data access to both control and system health information.
FOUNDATION fieldbus enables full utilization of intelligent field devices, resulting in access to device maintenance information, reduced equipment and wiring costs, and a wider selection of suppliers due to interoperability.
Foxboro FBM228 P0922QS Foundation Fieldbus Redundant Module with 24Vdc Input Voltage
Fieldbus Compliance
  • Conforms to FOUNDATION fieldbus specifications
  • Supports all H1 field devices registered to ITK 4.6 or greater
  • Links conform to ANSI/ISA S-50, IEC 61158, and CENELEC EN50170

Control & Integration
  • Supports FF Views 1, 2, and 4 with dynamic block parameters for control strategies
  • Provides access to block parameters on Control Core Services workstations
  • Enables integrated control database connecting H1 function blocks and control station function blocks via Foxboro DCS Control Editors
  • Supports control in host and control in field loops

Redundancy & Reliability
  • Can be installed as a redundant pair for maximum uptime
  • Fully redundant communications with fault-tolerant control processors
  • Provides a Link Active Scheduler (LAS) for each H1 Link
  • Supports Link Master devices as backup LAS on H1 segments
  • Automatically detects and schedules all devices on each H1 Link for faster start-up, commissioning, and device replacement

Operator Interface & Data Integration
  • Integrates H1 device data into Foxboro DCS format
  • Ensures consistent operator display of alarms, trends, and operator displays independent of protocol or communication bus

Power & Installation
  • Compatible with various power conditioning devices from Foxboro and third-party manufacturers
  • Bus powering depends on field termination assembly type; typical non-intrinsic safety assemblies provide 300 mA to 1 A per H1 Link
  • Suitable for installation in Class 1, Division 2, and Zone 2 locations
Foxboro FBM228 P0922QS Foundation Fieldbus Redundant Module with 24Vdc Input Voltage
Foxboro FBM228 P0922QS Foundation Fieldbus Redundant Module with 24Vdc Input Voltage
Interface to Control Processors
Provides the interface to H1 devices for DIN rail mounted FCP280 Field Control Processors.
Redundant Configuration
With the optionally redundant FBM228, a highly available system can be configured, including:
  • Redundant FBM228 modules
  • Fault-tolerant control processors
  • Redundant communications between control processors and FBMs
  • Redundant power conditioners and power supplies
Foxboro FBM228 P0922QS Foundation Fieldbus Redundant Module with 24Vdc Input Voltage
