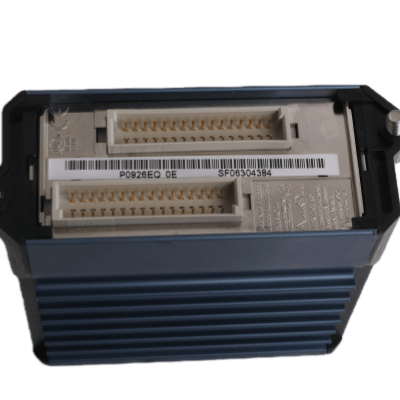

FOXBORO FBM202 P0926EQ Input Module with Eight Thermocouple Input Channels
FOXBORO FBM202 P0926EQ Input Module with Eight Thermocouple Input Channels
FOXBORO FBM202 P0926EQ Input Module with Eight Thermocouple Input Channels
FOXBORO FBM202 P0926EQ Input Module with Eight Thermocouple Input Channels
FOXBORO FBM202 P0926EQ Input Module with Eight Thermocouple Input Channels
FOXBORO FBM202 P0926EQ Input Module with Eight Thermocouple Input Channels
Specifications
Brand Name :
FOXBORO
Model Number :
FBM202 P0926EQ
Place of Origin :
USA
MOQ :
1
Price :
66USD
Payment Terms :
T/T
Supply Ability :
in stock
Delivery Time :
2-3 work days
Packaging Details :
Brand new and original
Product Model :
FBM202 P0926EQ
Product Parameters :
INPUT MODULE
Country of origin :
USA
Place of shipment :
Xiamen, China
Estimated Shipping Size :
4.5 cm x 10.5 cm x 11.5 cm
Manufacturer :
FOXBORO
weight :
0.35 kg
MOQ :
1 Piece
Description
FOXBORO FBM202 P0926EQ Input Module with Eight Thermocouple Input Channels
The FBM202 Thermocouple/mV Input module features eight thermocouple input channels and one isolated RTD reference junction compensation channel for terminal temperature sensing. Each channel accepts standard thermocouples for various temperature ranges and provides thermocouple burnout detection (upscale). All inputs are galvanically isolated from other channels and ground.
This module performs signal conversion to interface electrical input signals from field sensors to the optionally redundant Fieldbus. It executes an Analog Input application program with configurable integration time and Rate of Change Limits.
Two types of passive termination assemblies are available: DIN rail-mounted TAs (similar to those used with other 200 Series FBMs) and a baseplate-mounted TA that connects directly to the field I/O connectors of the 200 Series baseplate.
FOXBORO FBM202 P0926EQ Input Module with Eight Thermocouple Input Channels FOXBORO FBM202 P0926EQ Input Module with Eight Thermocouple Input Channels
Key Features
  • Multi-Channel Input Capability: Eight thermocouple signal channels plus one isolated RTD reference junction compensation channel
  • Robust Electrical Design: Galvanically isolated channels, rugged construction suitable for Class G3 (harsh) environments
  • Advanced Signal Processing: Analog input application program with configurable conversion time and Rate of Change Limits
  • High Accuracy: Sigma-delta data conversions for each channel
  • Flexible Termination Options: Multiple Termination Assembly options for local or remote field wiring connections
FOXBORO FBM202 P0926EQ Input Module with Eight Thermocouple Input Channels
Technical Specifications
FBM Type Input Signal TA Part Number (PA) TA Part Number (PC/ABS) Termination Type TA Cable Type TA Certification Type
FBM202 Eight isolated thermocouple/mV channels with one 4-wire 100 ohm platinum RTD (IEC 751, Class B) RH916XH (supersedes P0916AC P0916XH)
C 2 1
FBM202 Eight isolated thermocouple/mV channels with one 4-wire 100 ohm platinum RTD (IEC 751, Class B) P0917JL (supersedes P0916AD)
RL 2 1
FBM202 Two sets of eight isolated thermocouple/mV channels with one 4-wire 100 ohm platinum RTD (IEC 751, Class B)
RH928CN (supersedes P0928CN) C Baseplate-mounted n/a 1

Notes:

  • PA is polyamide rated from -20 to +70°C (-4 to +158°F)
  • C = TA with compression terminals; RL = TA with ring lug terminals
  • PC/ABS is Polycarbonate/Acrylonitrile Butadiene Styrene rated from -20 to +70°C (-4 to +158°F)
