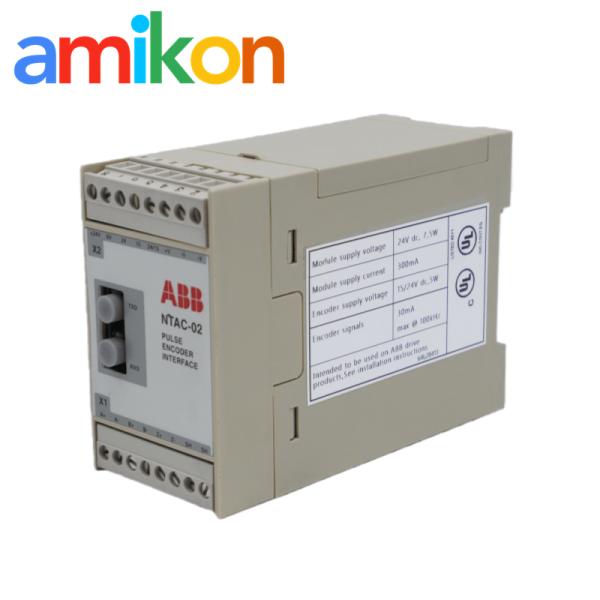

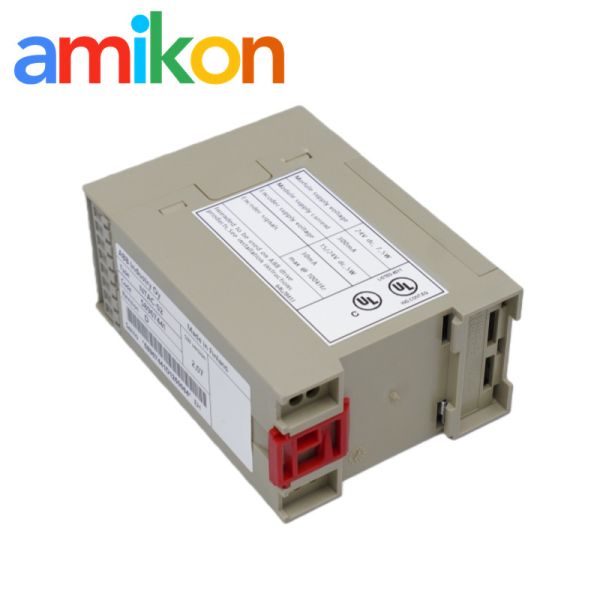

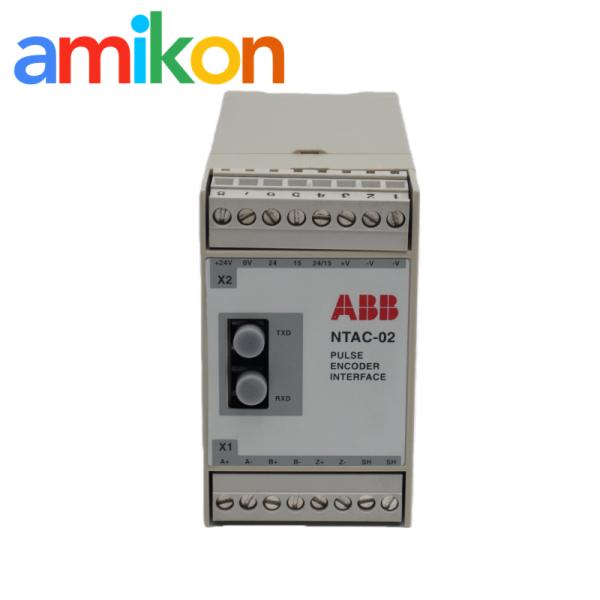

ABB NTAC-02 Pulse Encoder Interface Module with 100 kHz Max Signal Frequency
ABB NTAC-02 Pulse Encoder Interface Module with 100 kHz Max Signal Frequency
ABB NTAC-02 Pulse Encoder Interface Module with 100 kHz Max Signal Frequency
ABB NTAC-02 Pulse Encoder Interface Module with 100 kHz Max Signal Frequency
ABB NTAC-02 Pulse Encoder Interface Module with 100 kHz Max Signal Frequency
ABB NTAC-02 Pulse Encoder Interface Module with 100 kHz Max Signal Frequency
Specifications
Brand Name :
ABB
Model Number :
NTAC-02
Place of Origin :
SWEDEN
MOQ :
1
Price :
66USD
Payment Terms :
T/T
Supply Ability :
in stock
Delivery Time :
2-3 work days
Packaging Details :
Brand new and original
Brand :
ABB
Description :
Pulse Encoder Interface
Part number :
NTAC-02
Place of shipment :
Xiamen, China
Country of origin :
SWEDEN
Packaging :
Original New Packaging
MOQ :
1 Piece
Shipping :
TNT, DHL, FedEx, EMS, UPS
Description
ABB NTAC-02 Pulse Encoder Interface Module with 100 kHz Max Signal Frequency
Physical Specifications
Category Item Specification
Enclosure Housing Plastic shell
Dimensions 45 mm * 75 mm * 105 mm
Protection class IP20
Installation Mounting method Mounted on standard DIN rail
Hardware Settings DIP switches 7 DIP switches for node address setting
Default pre-assigned address 16
Connector Specifications
Type Specification
Optical TX/RX Hewlett-Packard universal connector for ACS600 connection
Terminal blocks Phoenix Contact MVBSTW 2,5/8-ST-5,08
Wire cross-section 0.5 to 2.5 mm²
Encoder Input Specifications
Parameter Specification
Max. signal frequency 100 kHz
Logic level thresholds (15 V supply) "1" > 7.6 V, "0" < 5 V
Logic level thresholds (24 V supply) "1" > 12.2 V, "0" < 8 V
Speed feedback resolution 0.00305% (15-bit)
Isolation Inputs isolated from power supply and ground
Channel A/B phase shift 90° electrical
Channel Z 1 pulse per revolution (for positioning)
General Performance
Parameter Specification
Power consumption Max. 250 mA at 24 V DC (typical)
Material approvals All materials UL/CSA approved
Fast transient immunity (IEC 801-4) 4 kV, 5/50 ns
Electromagnetic emission Complies with EN 55022 Class B
ABB NTAC-02 Pulse Encoder Interface Module with 100 kHz Max Signal Frequency ABB NTAC-02 Pulse Encoder Interface Module with 100 kHz Max Signal Frequency

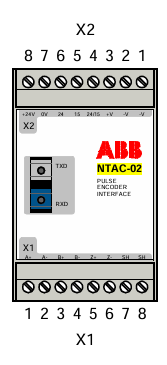

X2 Terminal Configuration
Terminal Marking Description
1 -V Encoder power supply, 15 or 24 V d.c. (depends on jumper settings at terminals 4, 5, 6). Max 5 W. (For single-ended grounded encoder connections: still use -V to balance A+, B+, Z+ signals).
2 -V
3 +V
4 24/15 Encoder Supply Voltage Selection. Terminals 4 and 5 connected: Encoder supply voltage is 15 V. Terminals 4 and 6 connected: Encoder supply voltage is 24 V. (NTAC module provides 2 jumpers).
5 15
6 24
7 0V NTAC module power supply, 24 V d.c. +/-10% (See next section for current consumption).
8 +24V
X1 Terminal Configuration
Terminal Marking Description
1 A+ A
2 A- A‾
3 B+ B
4 B- B‾
5 Z+ Z
6 Z- Z‾
7 SH Shield - Used for encoder cable grounding. Internally connected to NTAC module ground.
8 SH Shield
Technical Specifications for Input Channels
  • Max signal frequency: 100 kHz
  • Signal levels: "1" > 7.6 V, "0" < 5 V (15 V supply), "1" > 12.2 V, "0" < 8 V (24 V supply)
  • Input channels are isolated from power and ground
  • When the drive rotates forward, Channel A leads B by 90 degrees (electrical)
  • Channel Z: One pulse per revolution (for positioning)
ABB NTAC-02 Pulse Encoder Interface Module with 100 kHz Max Signal Frequency ABB NTAC-02 Pulse Encoder Interface Module with 100 kHz Max Signal Frequency
Module Configuration
Module Application Program Circuit Board Channel Terminal
NTAC-02 Standard, V5.0 and later NDCO (Optional) CH2 V17, V18
Standard, V5.0 and later; Master/Follower Application Macro NAMC CH1 V15, V16
System NAMC CH1 V15, V16
Crane, V5.0 and later NAMC CH1 V15, V16
NDIO-02,NAIO-03 (All) NAMC CH1 V15, V16

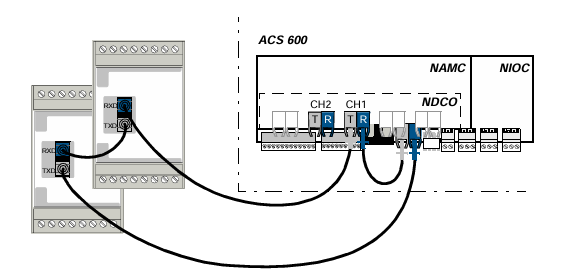

Fiber Optic Connection Overview

The module connects to the drive (NAMC/NDCO board) via fiber optic cables. Please note the color coding of the fiber optic connectors:

  • Blue connector should connect to the Blue receiver (RXD)
  • Grey (or Black) connector should connect to the Grey transmitter (TXD)
  • Multiple modules in a single channel are connected in a ring topology
Fiber Optic Handling Precautions
  • Handle fiber optics with care
  • Maximum long-term tensile load: 1 N
  • Minimum long-term bend radius: 25 mm
  • Do not touch the fiber optic tips; they are very sensitive to dust
  • Use grommets where fiber optics pass through holes
Terminal Connections

The terminals connected to NTAC-02, NDIO-02, and NAIO-03 modules are shown in the table above.
