Specifications
Brand Name :
General Electric
Model Number :
IC670MDL740
Place of Origin :
USA
MOQ :
1
Price :
66USD
Payment Terms :
T/T
Supply Ability :
in stock
Delivery Time :
2-3 work days
Packaging Details :
Brand new and original
Product Description :
Discrete Output Module
No. of channels :
Sixteen
Output Voltage Drop :
0.5 Volts maximum
Protection :
Built-in fuse for group protection
User Input Voltage :
10-30 Volts DC, 24 Volts DC nominal
Current Drawn from BIU power supply :
111 mA, maximum
Maximum Load Current :
0.5 Amps from 10-30 Volts DC
Output response time :
200 ms at 0.5 A resistive load
Description
GE IC670MDL740 16-Channel Discrete Output Module with 24 VDC Nominal and Built-in Fuse Protection
The 12/24 VDC Positive Output Module (IC670MDL740) provides a single group of 16 discrete outputs. The outputs are positive logic or sourcing-type outputs. They switch the loads to the positive side of the DC supply and supply current to the load.
Module Characteristics
Item Specification
User Input Voltage 10-30 VDC, 24 VDC nominal, 4A maximum
Output Voltage Range 9.2 VDC to 29.5 VDC
Output Current 0.5 A maximum per point; 4 A maximum per module
Outputs per Module 16
Indicators Logic-side LEDs indicate on/off status of each output; blown fuse fault and user supply below 9.8 VDC
Isolation 250 VAC continuous, 1500 VAC for 1 minute (User input to logic; user input to frame ground; group to group). No isolation between individual points in a group.
Current Drawn from Bus Interface Unit Power Supply 111 mA maximum
Output Characteristics
Item Specification
Inrush Current 2 A maximum for 100 ms (see Inrush and Steady State Rating diagram)
Maximum Load Current (Resistive) 0.5 A from 10 VDC to 30 VDC
Minimum Load Current 1 mA per point
Output Voltage Drop 0.5 volts maximum
Output Leakage Current 0.5 mA at 30 VDC
Response Time - ON 200 µs max with 0.5 A resistive load
Response Time - OFF 200 µs max with 0.5 A resistive load
Protection (Each Output) Fuse: Metric 5 × 20 mm - 5 A, 250 V, slow-acting, common to all outputs
GE IC670MDL740 16-Channel Discrete Output Module with 24 VDC Nominal and Built-in Fuse Protection

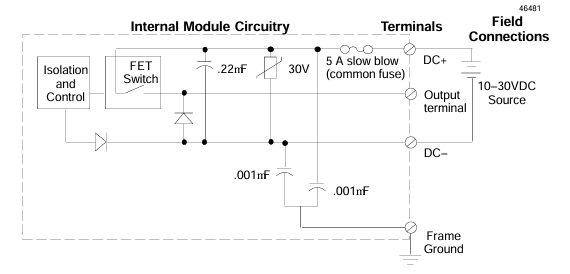

After checking the Board ID and verifying that the module is receiving appropriate logic power from the Bus Interface Unit (as indicated by the module's Power LED), the Bus Interface Unit sends output data to the module in serial format. During transmission, the module automatically loops this data back to the Bus Interface Unit for verification. Serial-to-parallel converters then convert this data into the parallel format required by the module. Opto-isolators separate the module's logic components from the field outputs. Power from the external power supply is used to drive the FETs that source current to the loads.
GE IC670MDL740 16-Channel Discrete Output Module with 24 VDC Nominal and Built-in Fuse Protection GE IC670MDL740 16-Channel Discrete Output Module with 24 VDC Nominal and Built-in Fuse Protection
If the module is installed on an I/O Terminal Block with Box Terminals or an I/O Terminal Block with Barrier Terminals, an Auxiliary Terminal Block may be required to provide additional wiring terminals. For the I/O Terminal Block with Wire-to-Board Connectors, external connection points are usually preferred, although an Auxiliary Terminal Block can be used.
Auxiliary Terminal Blocks have all terminals connected together internally. The Auxiliary Terminal Block with box terminals has 13 terminals, each of which accommodates one AWG #14 (approx. 2.1 mm² cross section) to AWG #22 (approx. 0.36 mm² cross section) wire, or two wires up to AWG #18 (approx. 0.86 mm² cross section). The Auxiliary Terminal Block with barrier terminals has nine terminals, each of which can accommodate one or two wires up to AWG #14 (approx. 2.1 mm² cross section).
The following illustration shows how an optional Auxiliary Terminal Block with Box Terminals can be used for power connections when installing this module on an I/O Terminal Block with Box Terminals.
GE IC670MDL740 16-Channel Discrete Output Module with 24 VDC Nominal and Built-in Fuse Protection

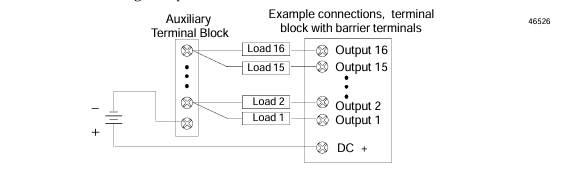

For an I/O Terminal Block with Barrier Terminals or an I/O Terminal Block with Wire-to-Board Connectors, an Auxiliary Terminal Block with Barrier Terminals might be connected as shown in the following example.
GE IC670MDL740 16-Channel Discrete Output Module with 24 VDC Nominal and Built-in Fuse Protection GE IC670MDL740 16-Channel Discrete Output Module with 24 VDC Nominal and Built-in Fuse Protection
