Allen Bradley 1746-HSCE High Speed Counter Module for Quadrature Encoders
Allen Bradley 1746-HSCE High Speed Counter Module for Quadrature Encoders
Allen Bradley 1746-HSCE High Speed Counter Module for Quadrature Encoders
Allen Bradley 1746-HSCE High Speed Counter Module for Quadrature Encoders
Allen Bradley 1746-HSCE High Speed Counter Module for Quadrature Encoders
Allen Bradley 1746-HSCE High Speed Counter Module for Quadrature Encoders
Specifications
Brand Name :
Allen Bradley
Model Number :
1746-HSCE
Place of Origin :
USA
MOQ :
1
Price :
66USD
Payment Terms :
T/T
Supply Ability :
in stock
Delivery Time :
2-3 work days
Packaging Details :
Brand new and original
Product Model :
1746-HSCE
Product Parameters :
High Speed Counter Module
Manufacturer :
Allen Bradley
weight :
0.3 kg
Estimated Shipping Size :
12.7 cm x 5.1 cm x 15.2 cm
Shipping :
TNT, DHL, FedEx, EMS, UPS
Packaging :
Original New Packaging
MOQ :
1 Piece
Description
Allen Bradley 1746-HSCE High Speed Counter Module for Quadrature Encoders
The Allen Bradley 1746-HSCE High Speed Counter Module is compatible with the SLC 500 family, excluding the 1747-ASB Remote I/O Adapter Module. This high-performance module works with SLC 5/02 processors and above, featuring bidirectional counting capability for detecting movement in either direction. With x2 and x4 counting modes, it fully utilizes high-resolution quadrature encoders and supports input pulse frequencies up to 50 kHz for precise fast motion control.
Beyond the Accumulated Counter, the module includes a Rate Counter for frequency measurement in Hz. Rate Measurement accumulates input pulses over a configurable period ranging from 10 ms to 2.55 seconds, supporting input rates up to 32,767 Hz. Background rate calculation is available in Sequencer and Range Modes. The module's four current sink outputs can be controlled via user programming or module logic, with counter reset configurable through Z input, Limit Switch input, or Soft Reset control bits.
Allen Bradley 1746-HSCE High Speed Counter Module for Quadrature Encoders
Allen Bradley 1746-HSCE High Speed Counter Module for Quadrature Encoders

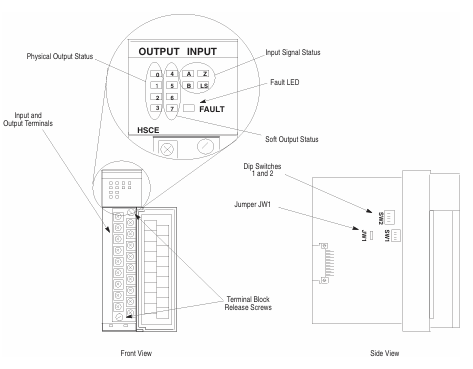

  • LEDs 0-3: Correspond to Physical Outputs 0-3
  • LEDs 4-7: Correspond to Soft Outputs 4-7
  • LEDs A, B, Z, and LS: Indicate energized inputs
  • LED FAULT: Illuminates when module is faulted
Allen Bradley 1746-HSCE High Speed Counter Module for Quadrature Encoders
Allen Bradley 1746-HSCE High Speed Counter Module for Quadrature Encoders

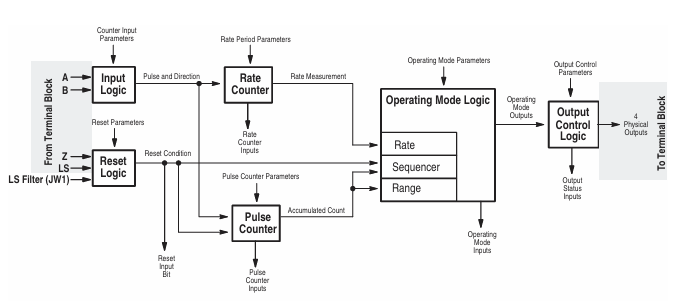

Range Mode: Define count ranges with assigned outputs that activate when the Accumulated Count falls within each range.
  • Up to 12 configurable ranges
  • Ring or linear counter operation
  • Input rate calculation
  • Direct SLC processor control of unused outputs
Rate Mode: Define rate ranges with corresponding outputs that activate based on Rate Measurement.
  • Rate periods from 10 ms to 2.55 seconds
  • Input rates up to 32,767 Hz in either direction
  • Up to 12 configurable ranges
  • Ring or linear counter operation
Sequencer Mode: Define preset sequences with associated output patterns that update automatically.
  • Up to 24 discrete steps
  • Dynamically configurable steps
  • Automatic sequence restart
  • External sequence reset control
  • Ring or linear counter operation
  • Input rate calculation
  • Direct SLC processor control of unused outputs
