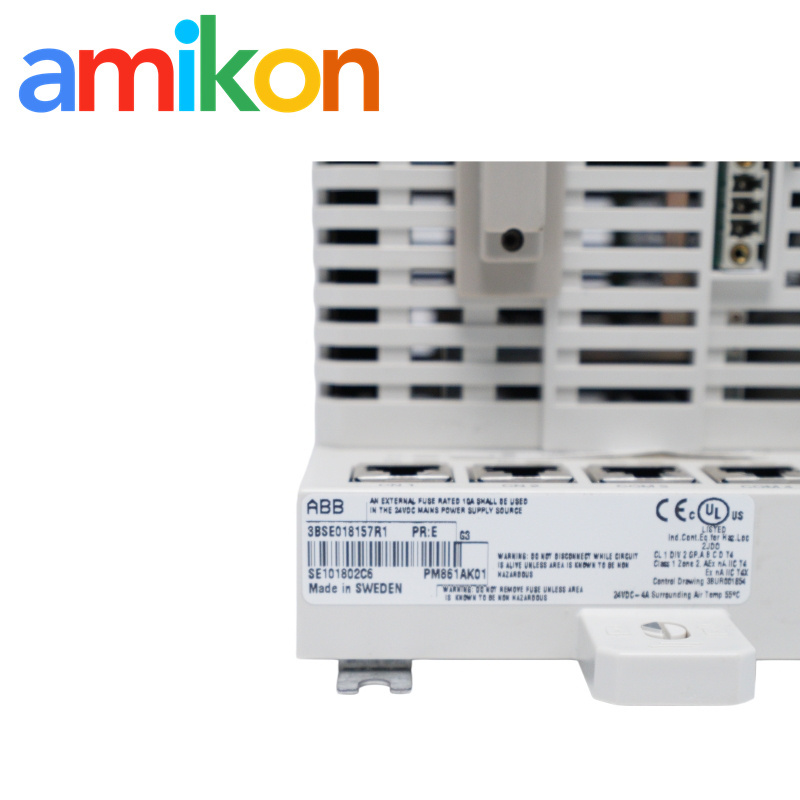

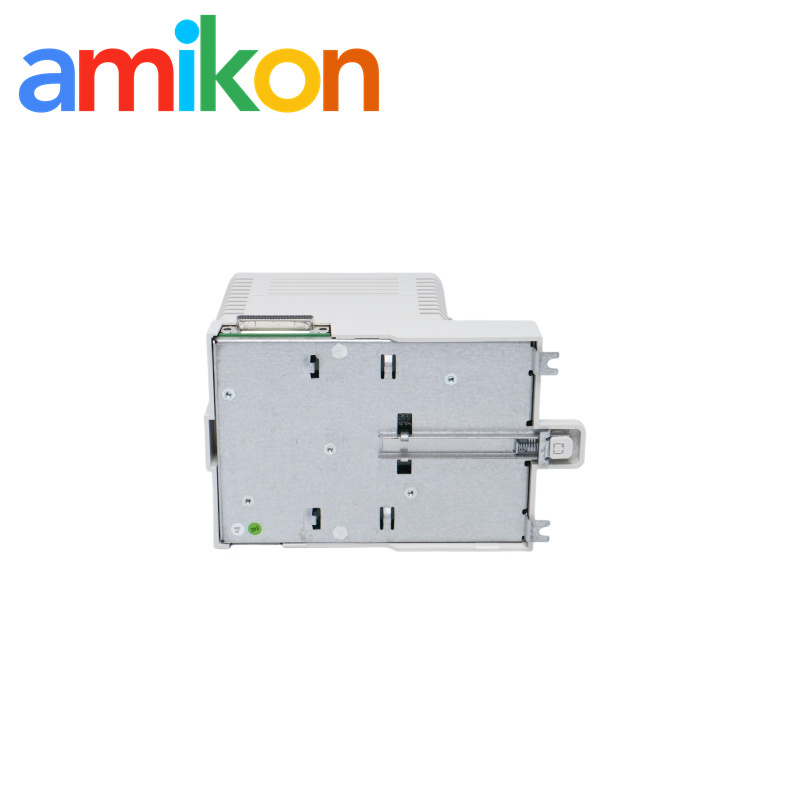

ABB PM861AK01 AC 800M Processor Unit with CPU Redundancy

ABB PM861AK01 AC 800M processor kit with PM861A CPU, TP830 baseplate, CEX-Bus, ModuleBus and RCU-Link terminators, memory-backup battery and redundancy support.

TypeAC 800M processor unit kit
SystemABB AC 800M / System 800xA
Focus48 MHz, 16 MB, redundant CPU
BrandABB

PM861AK01 availability, lead time and order review

Send RFQ

Product Introduction

PM861AK01 is the single-processor AC 800M kit based on the PM861A CPU. The package includes the TP830 baseplate, CEX-Bus, ModuleBus and RCU-Link terminators, plus a memory-backup battery.

Engineering note: ABB records PM861A as a Classic-lifecycle controller with replacement available. Migration must preserve controller release, redundancy pairing and the engineered I/O/communication architecture.

Technical Specifications

Select a category to view its specifications. All categories are closed by default.

Identification & packageView 6 specificationsHide specifications
ABB article number 3BSE018157R1
Processor PM861A CPU
Baseplate TP830, 115 mm
Included terminators TB850 CEX-Bus, TB807 ModuleBus, TB852 RCU-Link
Memory backup Battery 4943013-6
High Integrity controller No
Processor & memoryView 6 specificationsHide specifications
Clock frequency 48 MHz
Memory (RAM) 16 MB
RAM available for application 7.155 MB
Processor type MPC860
Flash storage for application/data Yes
1000 Boolean operations 0.23 ms
Redundancy, communication & I/OView 6 specificationsHide specifications
CPU redundancy Supported
Maximum switchover time 10 ms
Ethernet channels 2 × 10 Mbit/s RJ45
RS-232C interfaces 2
Communication modules on CEX-Bus 12
ModuleBus I/O capacity Maximum 96 non-redundant / 84 redundant I/O modules
Power, environment & sizeView 7 specificationsHide specifications
Power supply 24 V DC (19.2–30 V DC), max 5% ripple
24 V current, typical / max 250 / 430 mA
Typical power dissipation 6.0 W
Operating / storage temperature +5 to +55 °C / −40 to +70 °C
Protection class IP20
Dimensions 119 × 186 × 135 mm
Weight including base 1200 g

Compatibility & Replacement

Lifecycle status. ABB lists PM861AK01 as a Classic-lifecycle CPU with replacement available and identifies PM858 among the newer controller series for PM861A/PM864A migration.

Migration conditions. ABB states that PM858 and PM862 can be used from System 800xA 6.0.2 and that both processor modules in a redundant pair must be the same type. Confirm the exact replacement package in the ABB lifecycle plan for the installed project.

Applications & Fault Scenarios

01

AC 800M process control

Executes control applications and manages local, optical and CEX-Bus resources in an AC 800M controller station.

02

Redundant controller service

Supports paired CPUs where loss of the primary processor should transfer control to the healthy partner.

03

CPU remains in fault or stop

Capture LEDs and controller diagnostics, then check power, firmware/project compatibility, baseplate and bus termination.

04

Backup CPU unavailable

Verify both processors are the same approved type and inspect RCU-Link hardware and redundancy synchronization.

05

Intermittent I/O or network alarms

Separate CPU, Ethernet, CEX-Bus and ModuleBus symptoms before replacing the processor; each path has its own diagnostics.

AMIKON SUPPORT

Independent spare-parts support

Amikon can review the exact part number, installed system, quantity, destination and required date before quotation.

Pre-outage checkpoints

  • Back up the project and firmware record.
