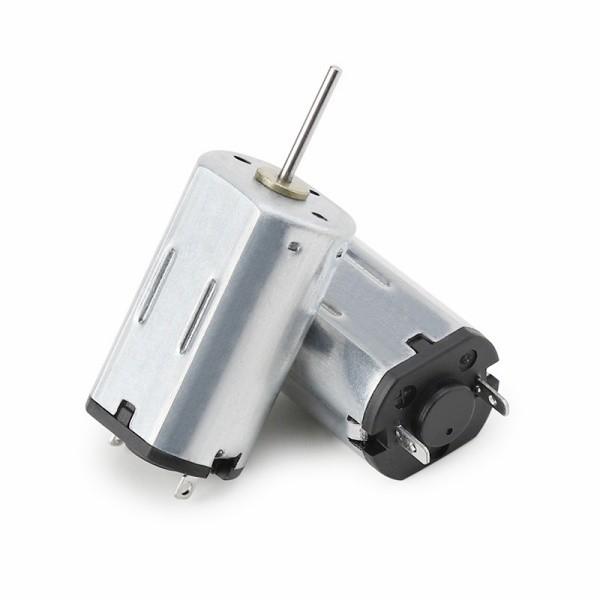

1.5V 4.5V N30 Small DC Electric Motor 10mm*12mm 12000rpm For Electronic Door Locks
1.5V 4.5V N30 Small DC Electric Motor 10mm*12mm 12000rpm For Electronic Door Locks
1.5V 4.5V N30 Small DC Electric Motor 10mm*12mm 12000rpm For Electronic Door Locks
1.5V 4.5V N30 Small DC Electric Motor 10mm*12mm 12000rpm For Electronic Door Locks
1.5V 4.5V N30 Small DC Electric Motor 10mm*12mm 12000rpm For Electronic Door Locks
1.5V 4.5V N30 Small DC Electric Motor 10mm*12mm 12000rpm For Electronic Door Locks
1.5V 4.5V N30 Small DC Electric Motor 10mm*12mm 12000rpm For Electronic Door Locks
1.5V 4.5V N30 Small DC Electric Motor 10mm*12mm 12000rpm For Electronic Door Locks
1.5V 4.5V N30 Small DC Electric Motor 10mm*12mm 12000rpm For Electronic Door Locks
1.5V 4.5V N30 Small DC Electric Motor 10mm*12mm 12000rpm For Electronic Door Locks
Specifications
Brand Name :
Lihua Motor
Model Number :
FF-N30VA
Certification :
CE,CCC,ROHS,UL,ISO9001,SGS
Place of Origin :
Dongguan,China
MOQ :
5000PCS
Payment Terms :
L/C,T/T
Supply Ability :
15000PCS/Day
Delivery Time :
30-45Days
Packaging Details :
Carbon Box
Type :
DC Electric Motor
DC Voltage :
1.5V 3.0V 4.5V 6V or as your requirement
Speed :
8000rpm,12000rpm and variable speed you can choose
Rated Torque :
0.28 mN.m or as your requirement
Direction of Rotation :
CW/CCW
Output power :
0.1w-0.8w
Efficiency :
80%,Other,it depends on motor's specific types
Usage :
Facial Cleanser ,Tattoo Pen, Massage Instruments, Electric Toothbrush, USB Fan ,Electric eyebrow trimmer
Housing :
cast iron
Protect feature :
Drip-proof
Insulation class :
A
Weight :
7g
Name :
Small Motor
Description

1.5v 4.5v 6v N30 10mm*12mm 12000rpm Small Electric Motor Electronic Door Locks

FF-N30 small motor is usually combined with gear box,it can be used in electric door clock.Small size and high torque can meet clock performance.

Quickly reactiona and working ,make it more popular in CD player,MD recorder.With rapidly devolped,N30 motors can be applied in facial cleanser ,tattoo pen, massage instruments, electric toothbrush, USB fan ,electric eyebrow trimmer.Lihua Motor has been focusing on micro motors for more than 20 years. In order to meet the needs of customers, we support OEM/ODM service and can customize the motor according to the actual products of customers. We control the whole process from R&D to production, and help customers maximize the value of their products with the most favorable price.

FF-N30 Drawing Reference

1.5V 4.5V N30 Small DC Electric Motor 10mm*12mm 12000rpm For Electronic Door Locks

Display for N30 Small Motor Typical Motor Types

Model Voltage(V) No Load Rated Load Stall
Range Rated Speed Current Torque Speed Current Output Torque Current
R/min A mNm R/min A W g.cm A
FF-N30-2247 1.5-12v 3.7v 9600 0.6 0.39 7860 0.285 0.32 22 1.3
FF-N30-1C73 1.5-12V 11V 4700 0.017 0.24 3670 0.06 0.09 11 0.21
FF-N30-12106 4.0-6V 5.0V 16800 0.035 0.44 14450 0.22 0.665 32.2 1.35
FF-N30-09180 2.0-6V 4.5V 9000 0.015 0.28 7489 0.071 0.20 16 0.338
FF-N30-1945 1.0-3V 1.5V 12000 0.08 0.08 9834 0.377 0.35 20.8 1.78

Remarks:

The ambient temperature of motor testing is 25-30℃ at room temperature;
The dimensions :output shaft length ,motor total length ,shaft shape in the external dimensions diagram can be adjusted as required;
Micro-motor performance, installation, power connection and external dimensions can be designed and modified according to customer requirements;

Unit in drawing is :mm
1inch=25.4mm
1mm=0.0394inch
1g.cm=0.098mN.m
1mN.m=10.2g.cm
