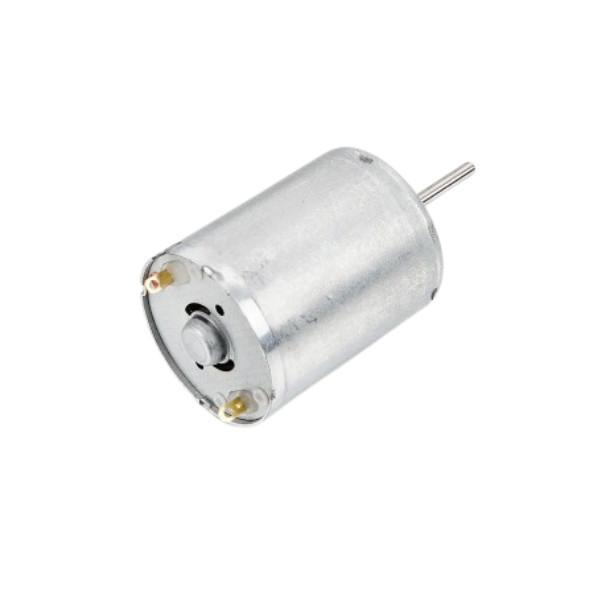

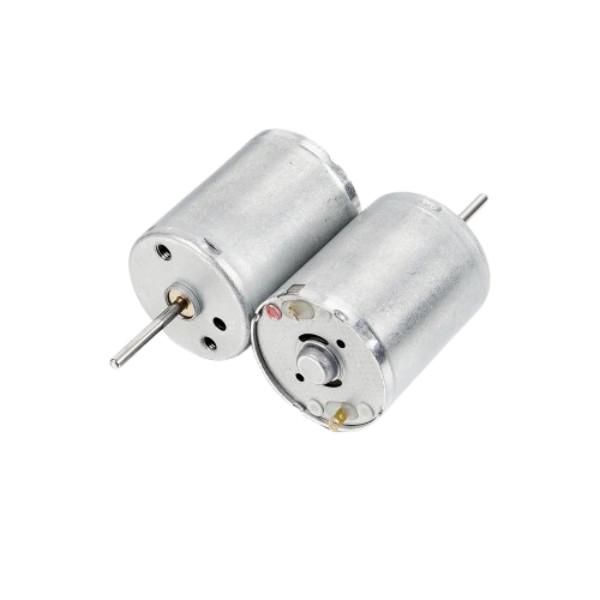

RF-370CA-12560 Mini Brushed DC Electric Motor 12V-24V 7000rpm 24mm For Auto Actuator Cleaner
RF-370CA-12560 Mini Brushed DC Electric Motor 12V-24V 7000rpm 24mm For Auto Actuator Cleaner
RF-370CA-12560 Mini Brushed DC Electric Motor 12V-24V 7000rpm 24mm For Auto Actuator Cleaner
RF-370CA-12560 Mini Brushed DC Electric Motor 12V-24V 7000rpm 24mm For Auto Actuator Cleaner
RF-370CA-12560 Mini Brushed DC Electric Motor 12V-24V 7000rpm 24mm For Auto Actuator Cleaner
RF-370CA-12560 Mini Brushed DC Electric Motor 12V-24V 7000rpm 24mm For Auto Actuator Cleaner
RF-370CA-12560 Mini Brushed DC Electric Motor 12V-24V 7000rpm 24mm For Auto Actuator Cleaner
RF-370CA-12560 Mini Brushed DC Electric Motor 12V-24V 7000rpm 24mm For Auto Actuator Cleaner
Specifications
Brand Name :
Lihua Motor/ HCS Motors
Model Number :
RF-370CA-12560
Certification :
ISO9001/CE/RoHs/Reach
Place of Origin :
Dongguan,Chia
Place Of Origin :
China
MOQ :
3000PCS
Payment Terms :
L/C,T/T
Supply Ability :
30000PCS/Day
Delivery Time :
35-45Days
Packaging Details :
Carton
Name :
Brushed DC Electric Motor
Diameter :
24mm*30.8mm
Motor Type :
RF-370CA-12560
Nominal Volt :
24V
Speed :
7000±3％rpm Or as you need
Current :
≤35mA
Motor Shaft Diameter :
2mm
Shaft Length :
6.0±0.2mm
Motor Applications :
Mini Air Pump/ Mini Water Pump/Massager/Auto Acutator
Description

RF-370CA-12560 12V-24V 7000rpm 24mm Mini 370 Motor for Auto Actuator Cleaner

RF-370CA-12560 Micro Motor Features:

1.Model: RF-370CA-12560

2.Motor diameter: 24.4mm Max

3.Motor length: 30.8mm

4.Output shaft diameter: 2mm

5.Output shaft length:10.5±0.2mm or as your request

6.Weight: 50g

7. Test data:

Voltage: DC6V Speed: 1800RPM Current: 0.01A

Voltage: DC9V Speed: 2700RPM Current: 0.01A

Voltage: DC12V Speed: 3600RPM Current: 0.01A

Voltage: DC18V Speed: 5400RPM Current: 0.02A

Voltage: DC24V Speed: 7200RPM Current: 0.06A

RF-370CA Brushed dc Electric Motor Technical Parameters:

Model Voltage(V) No Load Rated Load Stall
Range Rated Speed Current Torque Speed Current Output Torque Current
R/min A m.Nm R/min A W g.cm A
RF-370CA-22170 3-6V 6.0V 6000 0.041 2.37 5263 0.273 1.18 186 1.82
RF-370CA-12560 8-12V 12.0V 3700 0.012 1.96 3030 0.066 0.60 130 0.37
RF-370CA-15370 8-12V 12.0V 5600 0.020 2.14 4876 0.123 1.03 176 0.85

Customized product parameter are available upon your request

Note:1mNm= 1Ncm = 10.2gcm

RF-370CA-12560 Mini Brushed DC Electric Motor 12V-24V 7000rpm 24mm For Auto Actuator Cleaner
Notes:
1.Motor Body Length:30.6mm
2.Motor Output Shaft Length:L±0.5mm
3.Motor Output Shaft Diameter:2mm
4.Motor Diameter:24.4mm Max
5.Fixed Aperture:2.5mm
6.Step Height: about 1.5mm
7.Step diameter: about 6.4mm
8.Distance between two fixed aperture:17±0.05mm

RF-370 Product Standard Specification

Storage Test under low temperature:

Motor exposed to -40℃ for 72 hours and then to normal temperature /humidity for 24 hours before measurement.
Storage Test under high temperature:
Motor exposed to +85℃ for 72 hours and then to normal temperature/humidity for 24 hours before measurement.
Storage Test under high temperature /humidity:
Motor exposed to +40℃/90% ~ 95% RH for 72 hours then to normal temperature/humidity for 24 hours before measurement.

Still can't find ideal motors?

Obtain a quote in 12 Hours Get in touch now! Any enquiries regarding the Micro DC Motor, specifications, data sheet, quote, etc.

If you would like the RK-370 small motors to be connected with a bespoke lead wire. For example, different lead wire and strip lengths with a connector . You can use the footer form to get in touch with us and explain your needs. Please do not hesitate to contact us using the footer form; any issues will be treated carefully and handled professionally.
