41mm 24V BLDC4123 Brushless DC Motor For Water Pump
41mm 24V BLDC4123 Brushless DC Motor For Water Pump
41mm 24V BLDC4123 Brushless DC Motor For Water Pump
41mm 24V BLDC4123 Brushless DC Motor For Water Pump
Specifications
Brand Name :
Lihua Motor/HCS Motors
Model Number :
4123 BLDC
Certification :
ISO9001,CE,RoHs,Reach,CE
Place of Origin :
Gongguan,China
MOQ :
500PCS
Payment Terms :
L/C,T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability :
50000pcs/day
Delivery Time :
30-45days
Packaging Details :
Foam Box/Plastic Box
Model Type :
412 BLDC
Motor Category :
BLDC Motor
Operational Temperature :
-20°C to +80°C
Stator Slots :
6 Slots
Custom Mad :
Accept Custom-Made
Pricing :
Competitive Factory
Rated Volt :
24V
Description

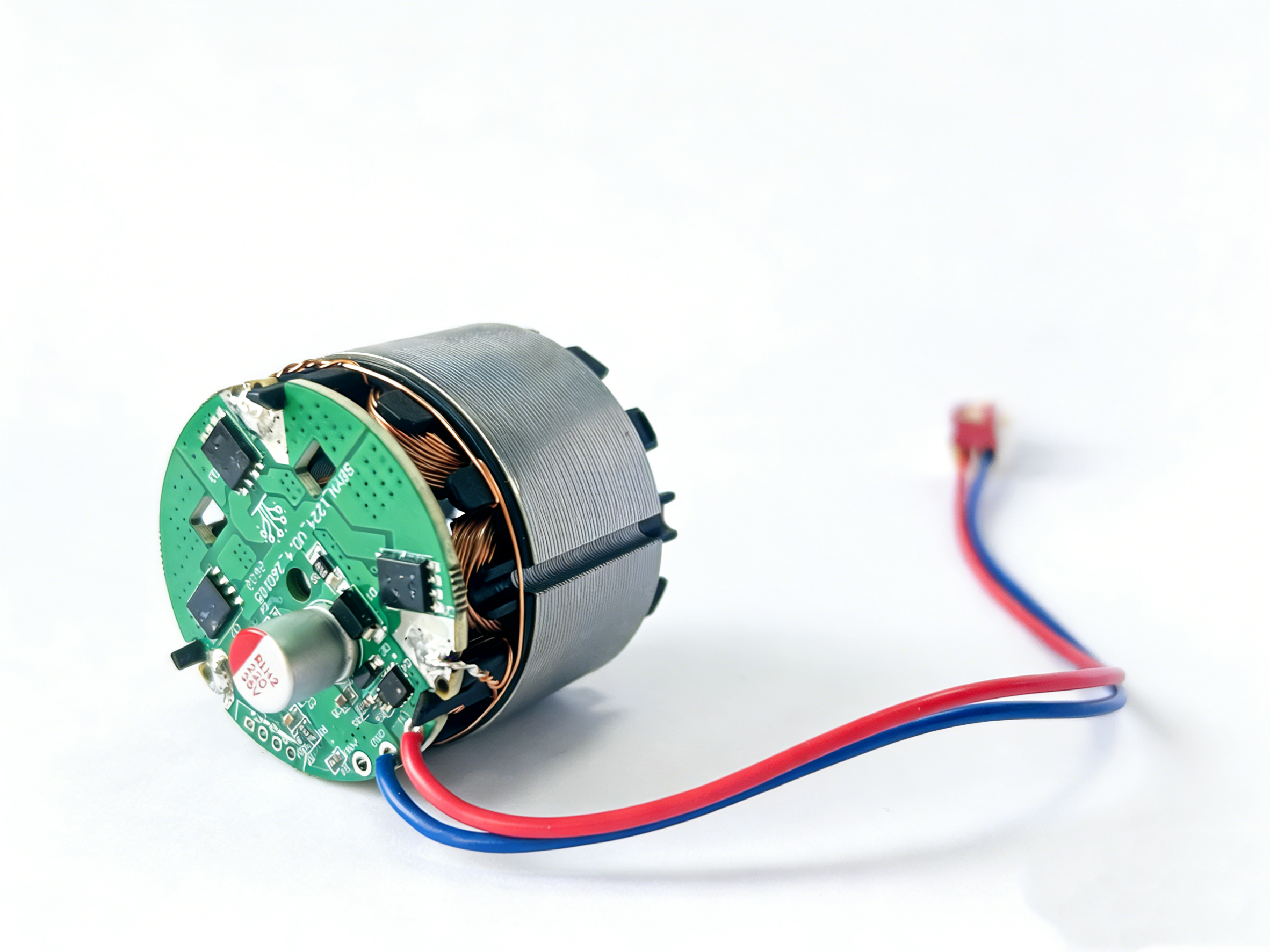

41mm 24V BLDC4123 Brushless DC Motor With Drive Board For Water Pump

| - Model Number: 4123 Brushless DC Motor
| - Stator Size : Φ 41 mm ( Can Customized )
| - Rated Voltage: DC 24V (Can Customized )

| - Stator resistance value 1.08–1.12 Ω (at 23–26°C) (Can Customized )
| - Polar difference △≤0.01Ω
| - Stator inductance value:980 ± 30 pH (Can Customized )

| -Stator Slots:6 slots (Can Customized )
| - Commutation: Brushless-PWM drive
|- PWM pulse wide speed range
|- Clockwise/counter-clockwise rotation (CW/CCW) (Can Customized )
|- Low EMC |- Low noise
|- Long lifespan: up to 20000hours

|- Customization Options:Volt,Speed,Torque,Resistance Value,Slots,PWM Brushless drive board

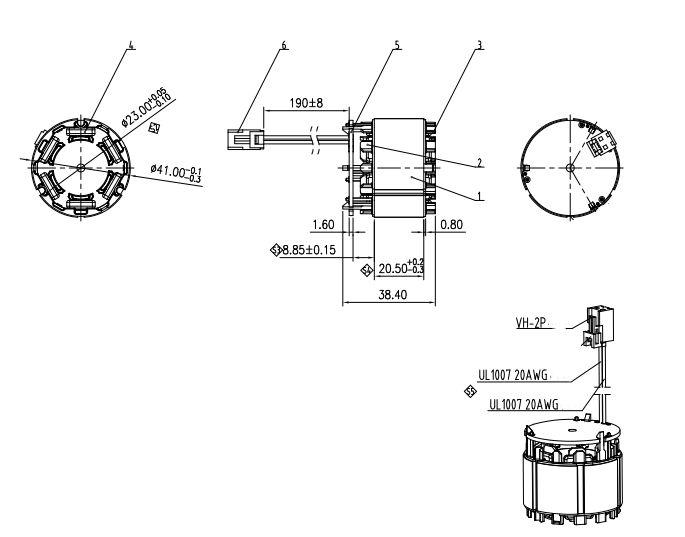

Brushless DC Electric Motor 6 Slots 41 Parameter Datasheet Dimension &2D Drawing

41mm 24V BLDC4123 Brushless DC Motor For Water Pump


41mm 24V BLDC4123 Brushless DC Motor For Water Pump

F&Q

Q: Can we use our own logo?


A: Yes, we offer custom logo printing services for our micro brushless motors to meet your branding needs.

Q: How many packaging options do you provide for micro brushless motors?


A: Currently, we have five specialized packaging solutions for micro brushless motors: PE bag, hand bag, zip lock bag, color box, and white box — all designed to protect the motor’s precision components during transportation.

Q: Can you customize the packaging for micro brushless motors?


A: Absolutely. Provide your custom packaging design, and we will produce it tailored to the micro brushless motor’s dimensions and protection requirements. Additionally, our professional design team can assist you in creating packaging that aligns with industrial application scenarios.

Q: How many types of micro brushless motors does your company manufacture?


A: We currently produce over 2,000 variants of micro brushless motors, covering a wide range of voltage, power, and size specifications for industrial automation, consumer electronics, and other fields. With strong OEM capabilities, we can also develop and manufacture customized micro brushless motors based on your physical samples or technical requirements (e.g., torque, speed, lifespan).

Q: When can I get the quotation for micro brushless motors?


A: We usually provide a detailed quotation within 12 hours after receiving your inquiry about micro brushless motors (including specifications, quantity, and customization needs).

Q: What is the MOQ for micro brushless motors?


A: All our micro brushless motors are produced to order, with no fixed MOQ. For customized or bulk production requirements, the MOQ can be flexibly discussed based on your specific project needs.
