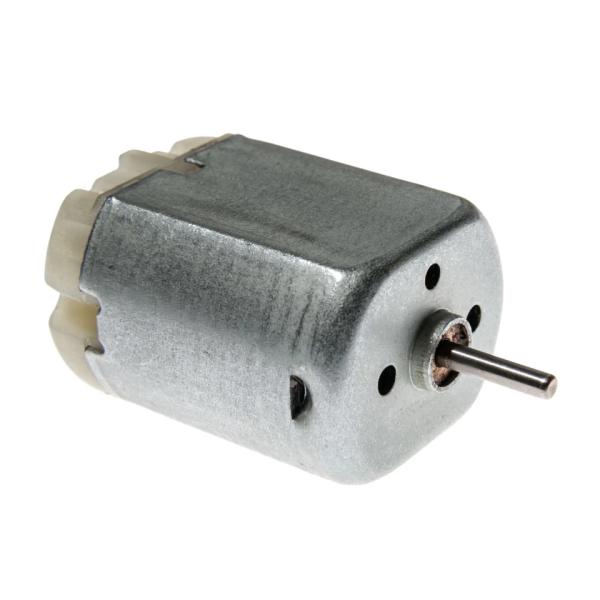

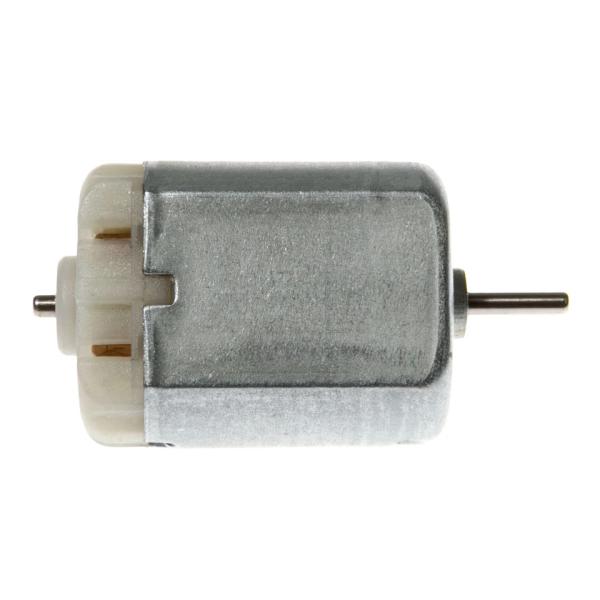

24mm Diameter FK-280 DC Motor with Low Voltage Operation and High Efficiency Output
24mm Diameter FK-280 DC Motor with Low Voltage Operation and High Efficiency Output
24mm Diameter FK-280 DC Motor with Low Voltage Operation and High Efficiency Output
24mm Diameter FK-280 DC Motor with Low Voltage Operation and High Efficiency Output
24mm Diameter FK-280 DC Motor with Low Voltage Operation and High Efficiency Output
24mm Diameter FK-280 DC Motor with Low Voltage Operation and High Efficiency Output
24mm Diameter FK-280 DC Motor with Low Voltage Operation and High Efficiency Output
24mm Diameter FK-280 DC Motor with Low Voltage Operation and High Efficiency Output
Specifications
Brand Name :
Lihua Motor/HCS Motors
Model Number :
FK-280
Certification :
IATF16949/ISO9001/Reach/RoHs/SGS
Place of Origin :
Dongguan,China
MOQ :
2000PCS
Price :
Negotiation
Payment Terms :
L/C,T/T
Supply Ability :
10000PCS/Day
Delivery Time :
35-45Days
Packaging Details :
Foam Carton
Shaft Diameter :
2mm
Motor Size :
18.4mm*24mm (H*D)
Body Length :
30.5mm (Without Shaft)
No-load Speed :
2000rpm-10000rpm or customized
Operating Voltage :
1.5V-3.0V (2.4V nominal)
Efficiency Output :
2.54W
Description
24mm Precious Metal Brush DC Motor FK-280 Series Low Voltage High Performance

The FK-280 is a 24mm diameter precious metal brush DC motor featuring ultra-low voltage operation (1.5V-3.0V), making it ideal for battery-powered applications. With an extended 30.5mm body length, this motor delivers higher torque and power output compared to shorter variants. The precious metal brush design ensures low electrical noise, minimal sparking, and smooth operation—critical for sensitive electronic devices. Two winding configurations offer speed options of 7400 RPM or 11300 RPM at 2.4V nominal voltage. Maximum efficiency output reaches 2.54W with stall torque up to 159 g.cm. The motor features clear polarity marking (RED MARK "+") for easy installation.

【Key Features】
  • 24mm diameter with extended 30.5mm body for higher power
  • Precious metal brush design — low noise and minimal EMI
  • Ultra-low voltage operation: 1.5V-3.0V (2.4V nominal)
  • Dual speed options: 7400 RPM or 11300 RPM
  • High efficiency output up to 2.54W
  • Low current consumption for battery-powered devices
  • Clear polarity marking for easy installation
  • Standard φ2mm shaft diameter
  • Custom voltage and speed specifications available

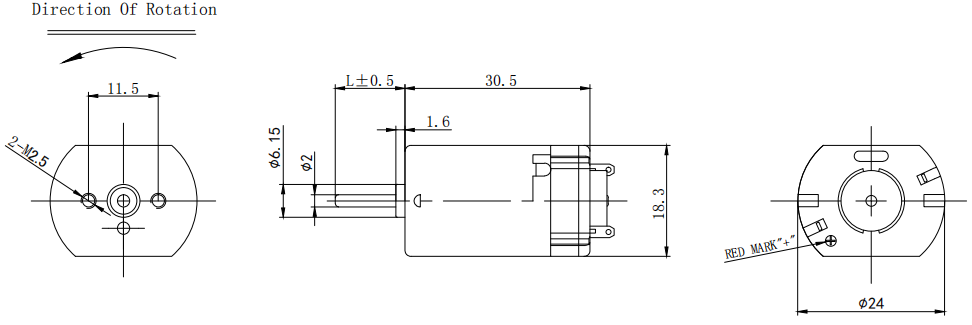

【FK-280 Micro DC Motor Dimensions】


24mm Diameter FK-280 DC Motor with Low Voltage Operation and High Efficiency Output


【FK-280 Mini Motor Applications】

  • Battery-powered devices, Portable electronics, Precision instruments, Audio equipment, Medical devices, Toys and hobbies, Low voltage applications, Sensitive electronic equipment

【Keywords】

FK-280 Motor, 24mm DC Motor, Precious Metal Brush Motor, Low Voltage Motor, 1.5V Motor, 2.4V Motor, 3V Motor, 11300 RPM Motor, 7400 RPM Motor, High Efficiency Motor, Low Noise Motor, Small DC Motor, Battery Powered Motor, 24mm Diameter Motor, Custom Motor
