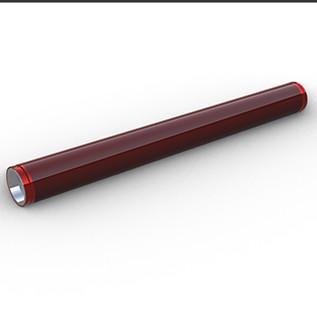

300mm Boom Piping Dual Layered For High-Pressure Hydraulic Wear Boompipe
300mm Boom Piping Dual Layered For High-Pressure Hydraulic Wear Boompipe
Specifications
Brand Name :
DC CONCRETE PIPES
Model Number :
Boom pipe
Certification :
ISO 9001
Place of Origin :
China Hunan
MOQ :
Please contact us
SUB CATEGORY :
HQ DUAL-LAYERED PIPE
NOMINAL DIAMETER: :
150.0 Mm
WALL THICKNEESS :
14mm
OUT WALL :
8mm
INNER WALL :
6mm
LANGTH :
1200mm
RADIOUS :
-
WEIGHT :
12 Kg
HARDNESS :
63 HRC
NOTES :
Other Dimensions And End Styles By Request
Description

DC HQ DUAL-LAYERED FOR HIGH-PRESSURE HYDRAULIC WEAR 300 BOOMPIPE

WHAT WE DO

Concrete pump pipes are used widely to deliver concrete safely and correctly to work sites. As a key solution for construction and other industries’ requirements, DC double-layered pipes can help equip your systems and facilitate safe concrete transportation for a range of applications. If you’re looking for concrete pump pipe suppliers to provide high-performance, durable solutions, we can help at DC concrete pump pipes. Thank you for coming in.

300mm Boom Piping Dual Layered For High-Pressure Hydraulic Wear Boompipe

For hydraulic and pneumatic conveying applications

Double-Layered pipe system for hydraulic and pneumatic conveying of abrasive media. The inner pipe is evenly hardened to 63 HRC. The thickness of the pipe wall is determined specifically for the application. The outer pipe is pressure-bearing and protects the inner wear layer from acting torsional or bending forces. Double-Layered pipes can be equipped with a wide variety of weld-ends or flange connections. In addition to straight pipes and bends, special shapes such as reducers, T-pieces, Y-pieces, etc. can be produced.

300mm Boom Piping Dual Layered For High-Pressure Hydraulic Wear Boompipe

Advantages of Double-Layered Pipes

  • Optimized Sealing Reliability Our pipes provide advanced sealing reliability to protect concrete flow and deliver it properly to its destination.
  • High Pressure Resistance Double-Layered pipes offer high resistance to pressure for demanding concrete transportation applications to your facility, work site or other destination.
  • Enhanced Safety Managing concrete transportation requires following proper piping standards to ensure a safe work environment, and Double-Layered pipes can provide the trusted performance necessary for the job.
  • Increased Cost-Efficiency Because Double-Layered pipes are designed with extra hardness and durability, they can deliver longer service life and save you on operational costs in the long term.
