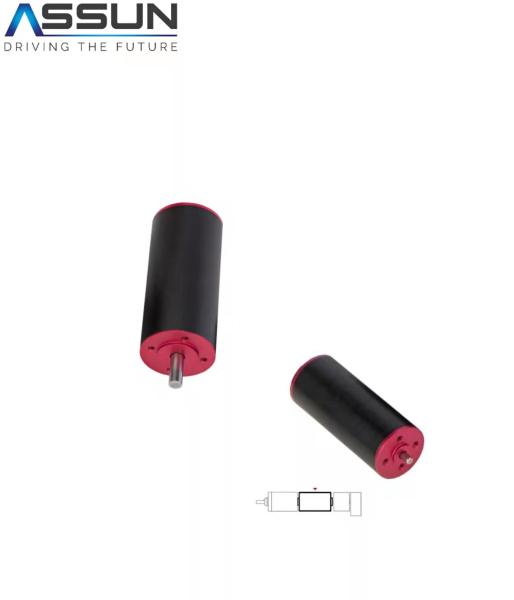

High temp Coreless DC Motor,10000-25000rpm,20mm diameter, 12.18.24V,40mm Length
High temp Coreless DC Motor,10000-25000rpm,20mm diameter, 12.18.24V,40mm Length
Specifications
Brand Name :
ASSUN
Model Number :
AM-BL2040AE-2417
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1-10pcs
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300000/Month
Delivery Time :
5-15 work days
Packaging Details :
Cartonbox
Nominal voltage :
24V
No load speed ±12% :
16600rpm
No load current Max *150% :
95 mA
Max cont.torque :
12.3mN.m
Rated Speed :
13836 rpm
Rated current :
1000mA
Rated Power :
17.8 W
Starting current :
5530mA
Stall Torque :
74mN.m
Maximum Efficiency :
76%
Terminal resistance ±12% :
4.34 Ω
Weight :
65.9g
Description

Product Description:

High temp Coreless DC Motor,10000-25000rpm,20mm diameter, 12V.18V.24V,40mm Length

Product introduction:

1. High temperature DC Brushless Motor. 24V/12V/ 18V,15000-26000rpm,40mm Length,20mm diameter

2. No load speed ±12%: 16600rpm. No load current Max150%: 95mA .Maximum power output 32.0W. Terminal resistance ±12%: 4.34Ω.

3. Torque constant 13.6mN.m/A. Speed constant 704rpm/V, Speed / torque gradient 225.1rpm/ V

4. Weight :65.9g. Maximum winding temperature: 125℃,Ambient temperatue range : -30 to 65 ℃.

5. DC Brushless motors can install the corresponding with planetarty gearbox and encoder

Product Details:

Motor Model AM-BL-2040AE-2417 Unit
Nominal voltage 24 V
No load speed ±12% 16600 rpm
No load current Max150% 95 mA
Max cont.torque 12.3 mN.m
Rated Speed 13836 rpm
Rated Current 1000 mA
Rated Power 17.8 W
Starting current 5530 mA
Stall Torque 74 mN.m
Maximum power output 4.34 W
Maximum Efficiency 76 %
Terminal resistance ±12% 4.34 Ω
Inductance ( 1KHz ) 0.42 mH
Mechanical time constant 2.7 ms
Moment of inertia 1.13 gcm²
Torque constant 13.6 mN.m / A
Speed constant 704 rpm / V
Speed / torque gradient 225.1 rpm / mN.m
Weight 65.9 g

High temp Coreless DC Motor,10000-25000rpm,20mm diameter, 12.18.24V,40mm Length

High temp Coreless DC Motor,10000-25000rpm,20mm diameter, 12.18.24V,40mm Length

Recommended Gearbox :

Planetary Gearbox : AM-20GP AM-24GP

Recommended Encoder :

Encoder S : AM-EN1611S** 2-3 Channels

Encoder T : AM-EN1611T** 2-3 Channels

Application:

Application of Assun Encoder in intelligent equipment. Robotic brake. Z-axis brake. Servo motor static braking. General purpose

motor.etc.

High temp Coreless DC Motor,10000-25000rpm,20mm diameter, 12.18.24V,40mm Length

High temp Coreless DC Motor,10000-25000rpm,20mm diameter, 12.18.24V,40mm Length

Service idea :

We can search for qualified products according to the required specifications (size, torque, revolutions, etc.) of gearbox, DC motor and reducer proposed by customers. The products searched are just one example of a rich product lineup, and there are many products that have not been published. At the same time, we also undertake special product design and OEM development. For relevant matters, please contact the business department of our company.

More information. please vist our website : www.assunmotor.com
