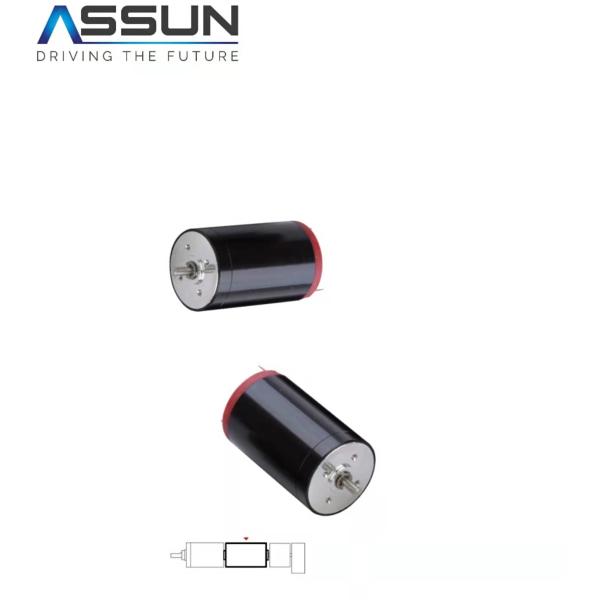

DC Coreless Brush Metal Motor6V12V24V36V48V Coreless DC Brush Motor L42mm D22mm
DC Coreless Brush Metal Motor6V12V24V36V48V Coreless DC Brush Motor L42mm D22mm
Specifications
Brand Name :
ASSUN
Model Number :
AM-CL2242MAN-1207
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1-10pcs
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300000/Month
Delivery Time :
5-15 work days
Packaging Details :
Cartonbox
Product name :
DC Coreless Metal Brushed Motor 6V12V24V48V
Diameter :
22mm
Length :
42mm
Nominal voltage :
12 V
No load speed ±12% :
7150 rpm
No load current Max *150% :
24 mA
Max cont.torque :
12.4 mN.m
Starting current :
6977mA
Stall Torque :
111 mN.m
Weight :
79.8g
Description

DC Coreless Brush Metal Motor 6V12V24V36V48V Coreless DC Brush Motor. Electrical Brush Motor .L42mm D22mm

Product introduction:

Assun DC Brush motor . there is a magnet in the fixed part of the brushless DC motor, which is called the main magnetic pole here; The fixed part also has brushes. The rotating part has an annular iron core and a winding wound on the annular iron core.

Assun Metal Brush Series Coreless motors are manufactured with coreless rotors and metal brush commutators.The high efficiency and precision character of metal brushed coreless motor made it perfect for energy critical and fast responding applications such as medical tools and robotic actuators

AM-CL2242MAN-1207

1.Coreless Metal Brush DC motor diameter 22mm. length 42mm. 12V.

2.Nominal voltage : 12V. No load speed ±12%: 7150 rpm.

3.No load current Max150% : 24 mA. Max cont.torque: 12.4mN.m. Rated Speed : 6352 rpm.

4.Rated Current: 800 mA. Rated Power: 8.2 W. Starting current :6977mA. Stall Torque : 111 mN.m.

5. Maximum power output : 20.8W. Maximum Efficiency : 89 %. Terminal resistance ±12% : 1.72Ω.

6.Weight : 79.8g.

7.DC Coreless Metal Brushed motor can install the corresponding with Encoder and Planetarty gearbox.

Product Details:

Motor Model AM-CL2242MAN-1207 Unit
Nominal voltage 12 V
No load speed ±12% 7150 rpm
No load current Max150% 24 mA
Max cont.torque 12.4 mN.m
Rated Speed 6352 rpm
Rated Current 800 mA
Rated Power 8.2 W
Starting current 6977 mA
Stall Torque 111 mN.m
Maximum power output 20.8 W
Maximum Efficiency 89 %
Terminal resistance ±12% 1.72 Ω
Inductance (1KHz) 0.23 mH
Mechanical time constant 6.0 ms
Moment of inertia 8.92 gcm²
Torque constant 16.0 mN.m / A
Speed constant 598 rpm / V
Speed / torque gradient 64.4 rpm / mN.m
Weight 79.8 g

DC Coreless Brush Metal Motor6V12V24V36V48V Coreless DC Brush Motor L42mm D22mm

DC Coreless Brush Metal Motor6V12V24V36V48V Coreless DC Brush Motor L42mm D22mm

Recommended Gearbox:

Planetary Gearbox : AM-20GP. AM-24GP.

Recommended Encoder :

Encoder S : AM-EN2211S***

2~3 Channels.

Appliation:

Assun Motor application of positive element brushless precision servo motor in intelligent equipment

DC Coreless Brush Metal Motor6V12V24V36V48V Coreless DC Brush Motor L42mm D22mm

Motor data tested at 25℃.Motor operation exceeding continuous limits will reduce life or result in damage.

At elevated ambient temperature.load current must be reduced.

More information. please vist our website : www.assunmotor.com
