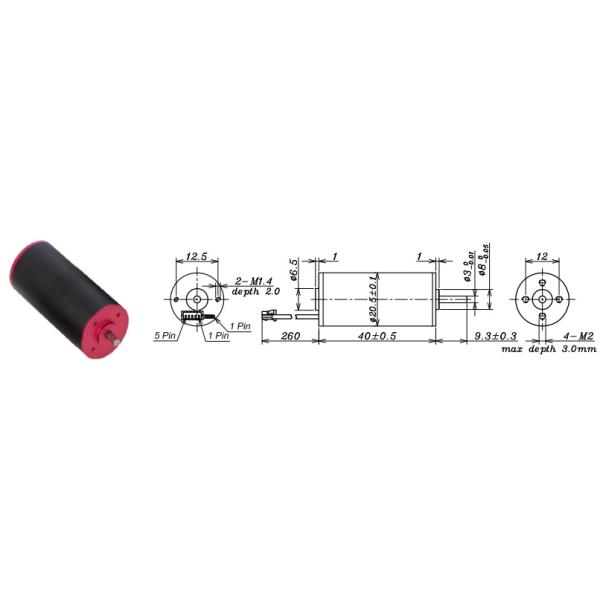

12V,18V,24V DC Coreless Motor,20mm diameter,40mm Length15000-26000rpm
12V,18V,24V DC Coreless Motor,20mm diameter,40mm Length15000-26000rpm
Specifications
Brand Name :
ASSUN
Model Number :
AM-BL2040AN-1226
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1-10pcs
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300000/Month
Delivery Time :
5-15 work days
Packaging Details :
Cartonbox
Nominal voltage :
12 V
No load speed ±12% :
26000 rpm
No load current Max *150% :
350mA
Max cont.torque :
5.4 mN.m
Rated Speed :
24682 rpm
Rated current :
1600mA
Rated Power :
14 W
Starting current :
25000mA
Stall Torque :
107 m.Nm
Maximum Efficiency :
78%
Terminal resistance ±12% :
0.48 Ω
Weight :
65.9g
Description

12V,18V,24V DC Coreless Motor,20mm diameter,40mm Length15000-26000rpm

Product introduction:

1.It's DC Brushless Motor. 20mm diameter.40mm Length .12V,18V,24V

2.No load speed ±12%: 26000rpm. No load current Max150%: 350mA .Maximum power output 72.9W. Terminal resistance ±12%: 0.48Ω.

3.Torque constant 4.6mN.m/A. Speed constant 2197rpm/V.

4.Brushless motors can install the corresponding with planetarty gearbox and encoder

5.Weight :65.9g

Product Details:

Motor Model AM-BL-2040AN-1226 Unit
Nominal voltage 12 V
No load speed ±12% 26000 rpm
No load current Max150% 350 mA
Max cont.torque 5.4 mN.m
Rated Speed 24682 rpm
Rated Current 1600 mA
Rated Power 14.0 W
Starting current 25000 mA
Stall Torque 107 mN.m
Maximum power output 72.9 W
Maximum Efficiency 78 %
Terminal resistance ±12% 0.48 Ω
Inductance ( 1KHz ) 0.034 mH
Mechanical time constant 2.9 ms
Moment of inertia 1.13 gcm²
Torque constant 4.6 mN.m / A
Speed constant 2197 rpm / V
Speed / torque gradient 242.7 rpm / mN.m
Weight 65.9 g

12V,18V,24V DC Coreless Motor,20mm diameter,40mm Length15000-26000rpm

12V,18V,24V DC Coreless Motor,20mm diameter,40mm Length15000-26000rpm

Motor data tested at 25℃.Motor operation exceeding continuous limits will reduce life or result in damage.

At elevated ambient temperature.load current must be reduced.

12V,18V,24V DC Coreless Motor,20mm diameter,40mm Length15000-26000rpm

Service idea :

We can search for qualified products according to the required specifications (size, torque, revolutions, etc.) of gearbox, DC motor and reducer proposed by customers. The products searched are just one example of a rich product lineup, and there are many products that have not been published. At the same time, we also undertake special product design and OEM development. For relevant matters, please contact the business department of our company.

More information. please vist our website : www.assunmotor.com
