Electric Fan Motors 4304RPM 0.26A 12V 50dB 8W BLDC Motor In Fan

Lead Time

Motor Details

Warranty: 3Years

Place of Origin: Guangdong, China

Brand Name: Go-Gold

Model Number: KG-3650DC12

Usage: Electric Fan

Torque: 211.2g.cm

Speed(RPM): 4304RPM

Current(A): 0.26A

Product Name: Electric Fan Motor BLDC Motor

Motor type: BLDC Motor

Certification: ISO

Rated Voltage: 12V/ Customized

Keywords: Medical Equipment Motor

Noise: Low

Performance Specifications

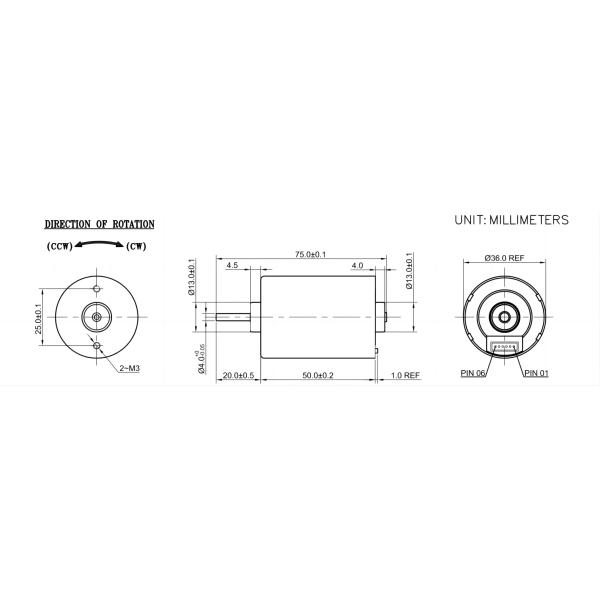

Dimension

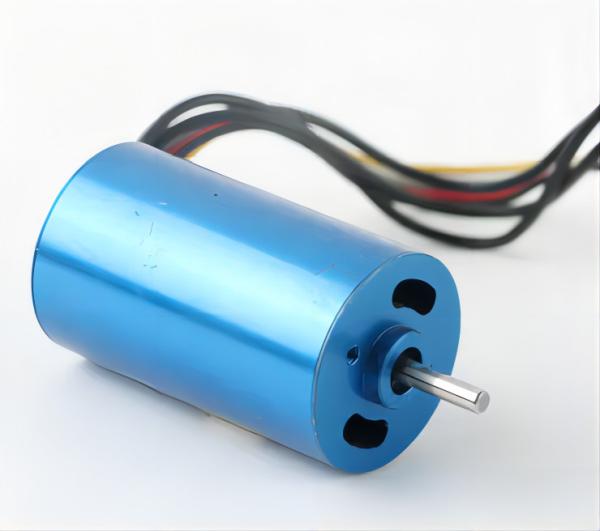

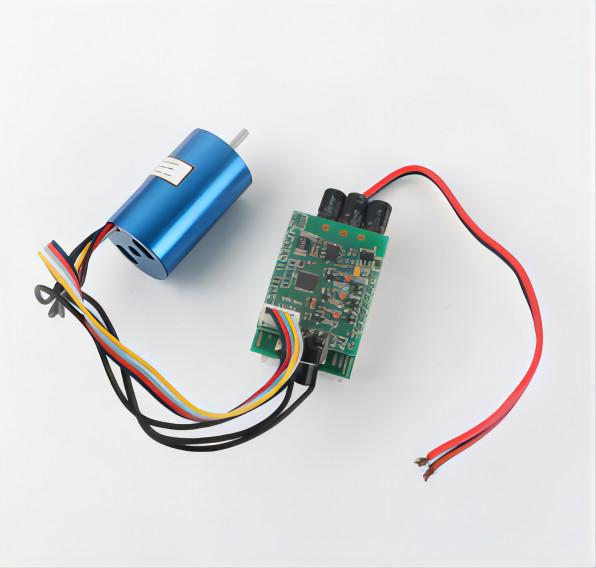

Motor Picture

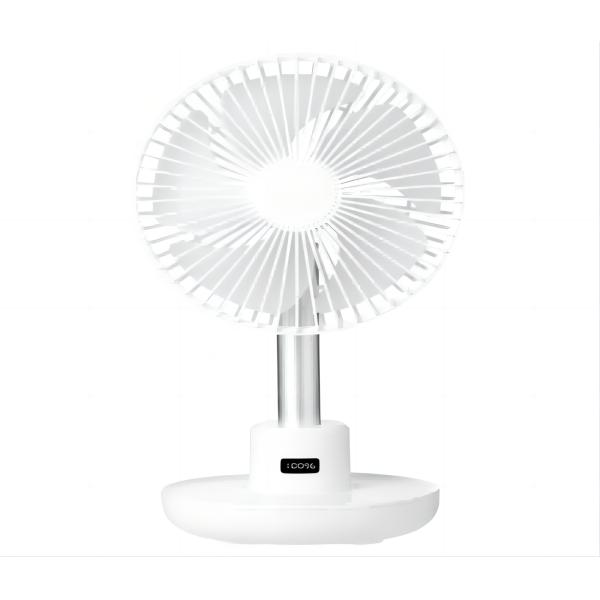

Motor Application

Definition of BLDC Motor

The BLDC motor is composed of a motor body and a driver and is a typical electromechanical integration product. Brushless motor refers to a motor without brushes and commutator (or collector ring), also known as commutator-less motor. As early as the birth of the motor in the 19th century, the practical motor produced was the brushless form, that is, the AC squirrel cage asynchronous motor, which has been widely used. However, asynchronous motors have many insurmountable defects, resulting in slow development of motor technology. The transistor was born in the middle of the last century, so the brushless DC motor using a transistor commutation circuit instead of brushes and commutators came into being. This new brushless motor is called an electronically commutated DC motor, and it overcomes the shortcomings of the first generation brushless motors.

Characteristics of BLDC Motors

1. It can replace DC motor speed regulation, frequency converter + variable frequency motor speed regulation, asynchronous motor + reducer speed regulation;

2. It has the advantages of traditional DC motors, while eliminating the carbon brush and slip ring structures;

3. It can operate at low speed and high power, and can directly drive large loads without the need for a reducer;

4. Small size, light weight and high output;

5. Excellent torque characteristics, good medium and low speed torque performance, large starting torque and small starting current;
6. Stepless speed regulation, wide speed regulation range and strong overload capability;

7. Soft start, soft stop and good braking characteristics can eliminate the need for the original mechanical braking or electromagnetic braking device;

8. High efficiency. The motor itself has no excitation loss and carbon brush loss, eliminating multi-stage deceleration losses. The comprehensive power saving rate can reach 20%~60%;

9. High reliability, good stability, strong adaptability, and simple repair and maintenance;

10. Resistant to bumps and vibrations, low noise, small vibration, smooth operation and long life;

11. It does not produce sparks and is especially suitable for explosive places. There are explosion-proof types;

12. Trapezoidal wave magnetic field motor and sine wave magnetic field motor can be selected as needed.
