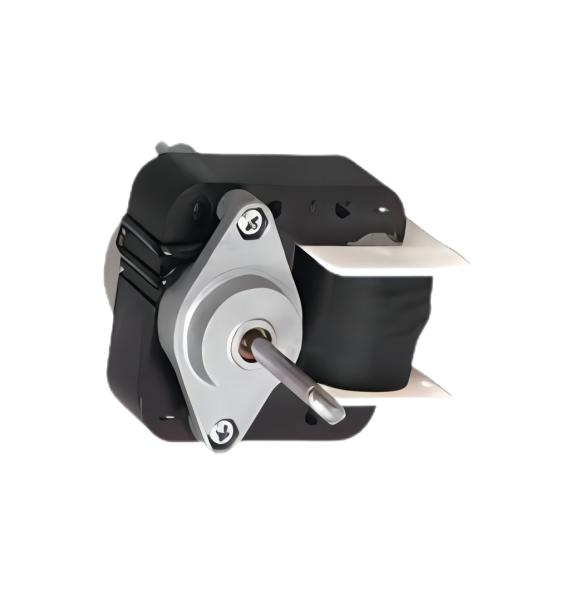

AC Series Motor 36-240V 1300-2900RPM 50/60HZ Used For Oven KG-6020M24
AC Series Motor 36-240V 1300-2900RPM 50/60HZ Used For Oven KG-6020M24
AC Series Motor 36-240V 1300-2900RPM 50/60HZ Used For Oven KG-6020M24
AC Series Motor 36-240V 1300-2900RPM 50/60HZ Used For Oven KG-6020M24
Specifications
Brand Name :
GO-GOLD
Model Number :
KG-6020M24
Certification :
ISO
Place of Origin :
China
MOQ :
1000PCS
Price :
Negotiation
Payment Terms :
L/C, T/T, Paypal
Supply Ability :
10000pcs-30days
Delivery Time :
7days
Packaging Details :
Packing in boxes
Application :
Oven
Rated Voltage :
36-240V
Key Word :
Shaded Pole Motor
Frequency :
50/60HZ
No load Power :
5-50W
No load Speed :
1300-2900RPM
Description

AC Series Motor 36-240V 1300-2900RPM 50/60HZ Used For Oven KG-6020M240

Essential Details

Key Word: Shaded Pole Motor

Place of Origin: Guangdong, China

No load Speed: 1300-2900RPM

No load Power: 5-50W

Application: Oven


Rated Voltage: 36-240V

Model Number: KG-6020M24

Frequency: 50/60HZ

Warranty: 3 Years

Efficiency: IE 2

Certification: CCC/CE/CUL/UL/ROHS

Rotating Direction: CW Rotating Direction or CCW

Lead Time

Quantity 1-1000 1001-10000 ≥10000
Lead days 15 30 To be negotation

Product Description

Rated Voltage

36-240V

No load Speed

1300-2900RPM

Frequency

50/60HZ

Rated Current

Customized

Sample

AC Series Motor 36-240V 1300-2900RPM 50/60HZ Used For Oven KG-6020M24

Application

AC Series Motor 36-240V 1300-2900RPM 50/60HZ Used For Oven KG-6020M24

The cover pole AC motor is widely used in small household appliances such as electric fan, hair dryer and vacuum cleaner because of its simple structure, low production cost and low running noise.

The shaded pole motor has only the main winding and no starting winding. However, there is a pair of short-circuit rings at each pole of the stator, also known as the "electrode cover pole",

When the motor is energized, the main magnetic pole part generates a magnetic field, which is pulsating, and the motor does not rotate. However, a short circuit current is generated in the short circuit ring, so that the magnetic field generated by the covered part of the magnetic pole lags behind the magnetic field of the uncovered part, so the magnetic pole constitutes a rotating magnetic field, and the motor rotor will rotate and start working.

In fact, this short circuit ring is equivalent to the starting winding of the motor. The covered pole motor usually uses a cage type bevel slot cast aluminum rotor.

According to the different shape structure of the stator, it is divided into convex pole covered pole motor hidden pole covered pole motor.

A. The stator core of the salient pole covered pole motor is A square, rectangular or circular magnetic field frame, the magnetic pole is convex, and each magnetic pole has 1 or more short circuit copper rings that play an auxiliary role, that is, the cover pole winding. The central winding on the salient pole is used as the main winding.

B, the stator core of the hidden pole type covered pole motor is the same as that of the ordinary single-phase motor, the stator winding is distributed, the main winding is distributed in the stator slot, the covered pole winding is not short circuited copper ring, but the thicker enamelled wire is wound into the distributed winding (short circuit after series) embedded in the stator slot (about 1/3 of the total number of slots), which plays the role of the auxiliary group. The main winding and the shield winding are spaced at a certain Angle.
