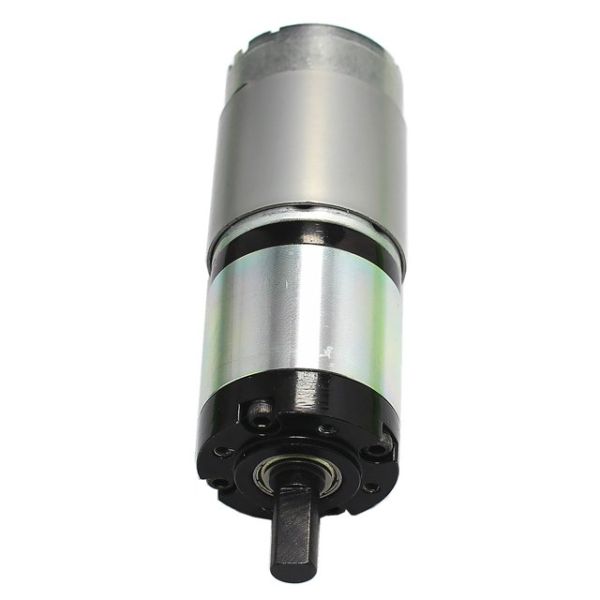

Warranty: 3years

Place of Origin: Guangdong, China

Brand Name: Go-Gold

Model Number: KG-5738GM24

Usage: Electric Curtain

Type: Gear Motor

Torque: 1-130Kgf.cm

Commutation: Gear

Speed(RPM): 0.5-600RPM

Size: 36*57.5

Efficiency: IE4

Product Name: Electric Curtains Motor Gear Motor

Rated Voltage: 6-24V/Custom Made

Noise: Low

Lead Time

Sample

Application

A gear motor is a type of electric motor that uses a gear reduction system to increase torque while reducing speed. Gear motors combine the power of an electric motor with the torque multiplying capacity of a gear reducer in a single compact package.

Inside a Gear Motor

A gear motor consists of an electric motor directly connected to a gear reducer. The motor is typically a standard AC or DC electric motor that provides the power. The gearbox contains gear sets that reduce the higher motor speed down to a lower output speed.
Common gear types used include spur gears, helical gears, bevel gears, and planetary gears. The gearing takes the high speed, low torque power from the motor and converts it to low speed, high torque power.

Gear Reduction Principles

The gearing inside the gearbox provides a gear reduction ratio, like 10:1 or 50:1, which determines the torque multiplication. For example, with a 10:1 ratio, a 1000 RPM input speed becomes 100 RPM at the output. But the torque is increased by a factor of 10. So a 2 Nm motor becomes 20 Nm at the output shaft after going through the 10:1 gear reducer.

Higher gear ratios like 100:1 or 500:1 can drastically increase torque for operating heavy loads while keeping motor size small. Gear ratios can be designed to give the ideal speed and torque output.

Benefits of Gear Motors

Gear motors offer several major benefits compared to direct drive and other options:
Increased torque from a compact, lightweight package

• Ability to precisely match speed and torque to the application
• High reliability and efficiency
• Reduced noise and vibration
• Design flexibility – motors and reducers can be combined
• These benefits make gear motors ideal for applications like conveyors, mixers, pumps, packaging machines, elevators, robot joints, and more.
• The optimized torque transmission minimizes electrical consumption.

Major Types

Common types of gear motors include:

• Parallel shaft – input and output shafts are parallel
• Right angle – output shaft is perpendicular to motor shaft
• Planetary – compac
