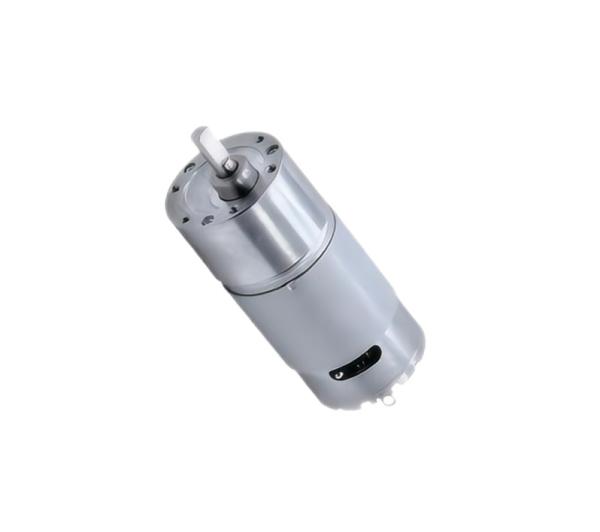

Smart Home Motor 12-24V 5-1500RPM Gear Motor For Electric Lock GO-GOLD

Lead time:

Product Description

Essential details

Typical Application: Electric Lock

Key Word: Gear Motor

Model Number: KG-2556GM24

Shaft Dia: 4mm

Direction: CW/CCW

Warranty: 3 Years

Place of Origin: Guangdong, China

Rated Voltage: 12-24V

Rated Speed: 5-1500RPM

Rated Current: Customized

Rated Torque: 0.2kg.cm~5kg.cm

Drawing

Sample

Application

A gear motor (or geared motor) is a small electric motor (AC induction, permanent magnet DC, or brushless DC) designed with an integral (non-separable) gear reducer (gearhead) attached.

The end shield on the drive end of the motor is designed to provide a dual function. The side facing the motor provides the armature/rotor bearing support and a sealing provision through which the integral rotor or armature shaft pinion passes. The other side of the motor end shield provides multiple bearing supports for the gearing itself, and a sealing and fastening provision for the gearhousing.

This construction offersmany benefits for a user and eliminates the guesswork of sizing a motor and gear reducer on your own. Gearmotors function as torque multipliers and speed reducers, requiring less motor power to drive a given load. The gear housing design, the gearing type, gear lubrication, and the specific mode of integration all affect the gearmotor performance.

Summarize

• Gear motor combined with international technical requirements of manufacturing, with a high scientific and technological content.
• Compact structure, reliable and durable, high overload capacity.
• Low energy consumption, superior performance, reducer efficiency of more than 95%.
• Small vibration, low noise, high energy saving, the selection of high-quality steel materials, steel cast iron box, high-end gear motor using special aluminum alloy die-casting box, gear surface through high-frequency heat treatment.
• After precision machining to ensure positioning accuracy, gear reducer gear drive assembly of the gear motor can be configured with all kinds of mainstream motors in the market, forming a new product features of mechatronics, modular structure, and fully ensure the quality characteristics of product use.
• The product adopts the series, modular design idea, has a wide range of adaptability, can be combined with various types of motor, installation position and structural scheme, and the gear reducer can be selected according to the actual needs of any speed and various structural forms.
