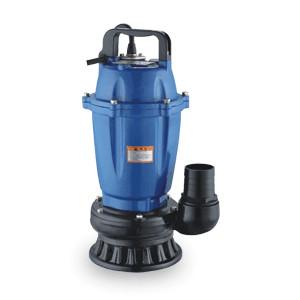

Single Phase Submersible Dirty Water Pump Customized Color Aluminum Low Pressure
Single Phase Submersible Dirty Water Pump Customized Color Aluminum Low Pressure
Single Phase Submersible Dirty Water Pump Customized Color Aluminum Low Pressure
Single Phase Submersible Dirty Water Pump Customized Color Aluminum Low Pressure
Specifications
Brand Name :
Threes
Certification :
CE, 3C
Place of Origin :
China
MOQ :
1
Supply Ability :
1000pcs/week
Delivery Time :
30 days
Packaging Details :
standard package
Color :
customized
Port :
Shanghai, chengdu, etc.
Material :
Cast Iron / Aluminum
Place of origin :
China
Usage :
water
Power :
Electric
Pressure :
Low Pressure
Voltage :
220V
Structure :
Single-stage Pump
Application :
Submersible
Warranty :
one (1) year
Description

Single Phase Submersible Dirty Water Pump Customized Color Aluminum Low Pressure

Specification

Product Name:
WQ Non-clogging Submersible Sewage Pump
Material:
Cast iron
Seal Material:
Graphite/silicon carbide
Max. Flow:
2400m3/h/ 10567GPM
Max. Head:
40m
Max. Pressure:
4bar/58psi
Max. Working temperature:
60℃/140F
Max. rev:
2950rpm
Motor Power:
0.55kw~315kw
Voltage:
220v,380v
Motor:
AFT,50hz/60hz
Available Connection:
Flange(EN1092-2,IS07005-2)
Operated:
Electric
Application Scope:
Sewage treatment system
Packaging Details:
Wooden box
Delivery details:
7-20 days after receiving payment

Single Phase Submersible Dirty Water Pump Customized Color Aluminum Low Pressure

Model Power

Rated.Flow

(m3/h)

Rated.Head

(m)

Dim

(mm)

 G.W.(kg)
KW HP G(s) G(t)
WQD6-12-0.55 0.55 0.75 6 12 470x250x250 20.5 19
WQD6-16-0.75 0.75 1 6 16 470x250x250 22.5 21
WQD10-10-0.75 0.75 1 10 10 520x210x275 29 25
WQD15-9-1.1 1.1 1.5 15 9 540x240x280 32 29
WQD7-15-1.1 1.1 1.5 7 15 540x240x280 31 28

WQ(D) Application

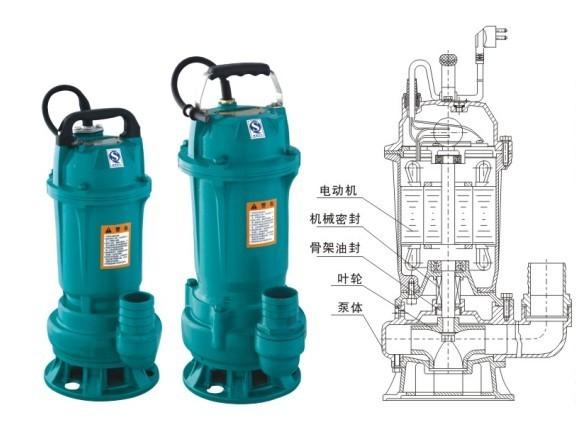

WQ(D) Submersible sewage pump is composed of motor,water pump and sealing part.The water pump has impeller-volute structure, and it is under the single or three phase asynchronous motor.Mechanical seal is used as the motive seal between motor and water pump,and oil reasisting rubber O ring works as the static seal for the rabbet.Thus,the reliability of our machine is ensured.Meanwhile,the rotor shaft is made of stainless steel,so reliable machanical strength of the shaft is obtained,and the abrasion resistance and corrosion resistance of the shaft are both improved.

Also,it facilitates the disassembly and maintenance of impeller.

Operating conditions

Our pump is able to work normally and continually if the following requirements are met.

Medium temperature:Not over +40℃

PH range of medium:4~10

Max.density of medium:1.2x103kg/m³

Voltage fluctuation range:10% of rated voltage

Submersion depth:≤5meters

Motor

Single phase

Insulation class:B

Protection:IP44
