Specifications
Brand Name :
Dason
Model Number :
MA1206H
Certification :
ISO9001
Place of Origin :
China
MOQ :
500
Price :
10USD
Payment Terms :
T/T
Delivery Time :
20days
Description

Product Description

Electric Solenoid Lock (MA1206H) is a mini metal constructed lock specially designed for keyless entry of cabinets, drawers and lockers. The bolt is 360 degree reversible and surface mounting either vertically or horizontally offers easy and flexible installation. The Electric Solenoid Lock is compatible with any access control system or standalone cabinet locking system. The Electric Solenoid Lock (MA1206H) is energy saving, cost efficient, robust, easy to install and suitable for one or multiple cabinet applications.
Solenoid Door Lock for Cabinets Drawers and Lockers 360 Degree Reversible Bolt Energy Saving Easy Installation
Features
  • 360 degree reversible bolt
  • Superior heavy duty metal construction
  • Nickel-plated steel housing
  • Surface-mounted compact electric lock
  • Accepts access control signals from wireless RF key fobs or proximity cards, numeric keypads, card readers,
  • Fitted to steel furniture, mail box and drawers etc.
  • Solenoid Door Lock for Cabinets Drawers and Lockers 360 Degree Reversible Bolt Energy Saving Easy Installation

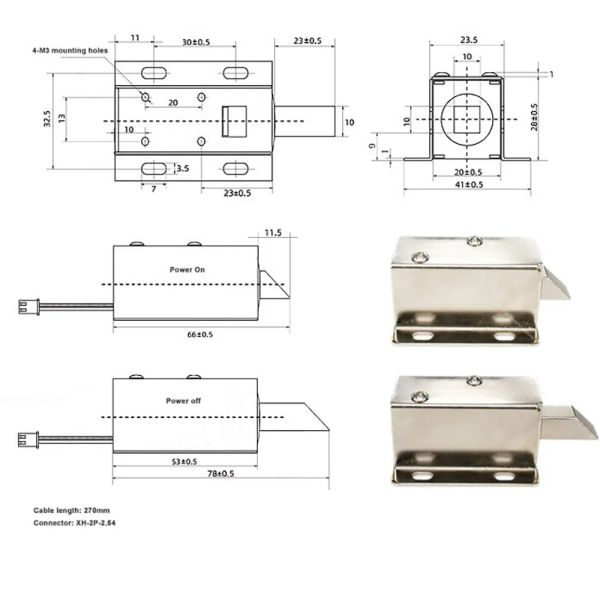

  • Specification
    Operation Voltage 12VDC ±10%
    Power Consumption 12V DC 800mA
    Operation Mode Fail Locked
    Length of tongue 23.5mm
    Maximum power on time Less than 1 second
    Cycle Rating 600,000
    Working Temperature -25ºC ~ +80ºC
    Dimension 78mm*41mm*28mm
    Weight 150g
    Protection Class NA

    Applications:
    The solenoid cabinet lock is ideal for various applications as following:
    Steel cabinet or metal furniture
    Electronic lockers
    Retail display cases and drawers
    Filing cabinets
    Utility cabinets and drawers
    Museum display cases
    Pharmaceutical cabinets and drawers
    Electronic letter box and delivery Locker
