U1054-2 DC 12V 24V Normally Open Push Pull Electric Solenoid Cabinet Lock
U1054-2 DC 12V 24V Normally Open Push Pull Electric Solenoid Cabinet Lock
Specifications
Brand Name :
Dason
Model Number :
U1054
Certification :
ISO9001
Place of Origin :
China
Service :
OEM ODM
Waterproof :
outdoor
Surface Temp :
≤+20℃,Low Temperature
Stroke :
2mm
Warranty :
1 year
Biometry :
More than 50,000 times
Port :
shenzhen
Application :
Logistics cabinet
Unlock Time :
1 second, Power on < 10 seconds
Installation Type :
Surface Mount
Samples :
Availble
Working Mode :
Power on to open
Power :
36W
High Voltage :
700V
Structure :
push pull
Description

U1054-2 Dc 12v 24v Normally open push pull electric Solenoid Cabinet Lock.
1. Power supply: 12V or 24VDC, or customized
2. Stroke: 8.5 mm
3. Duty cycle: 10% - 100%, customized
4. Function: Connecting to power, lock tongue will pull in, when power is off, tongue will return back by spring
5. Application: gym cabinet, vending Machine, storage cabinet, sharing bicycle etc.

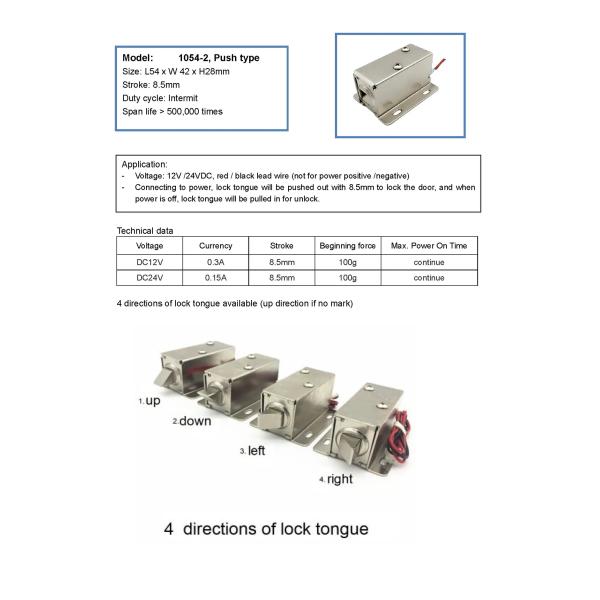

Products Data Sheet
Product name: Push Pull Solenoid Insulation Class: B
Model: U1054-2 Hi-Pot test: AC750V/2S

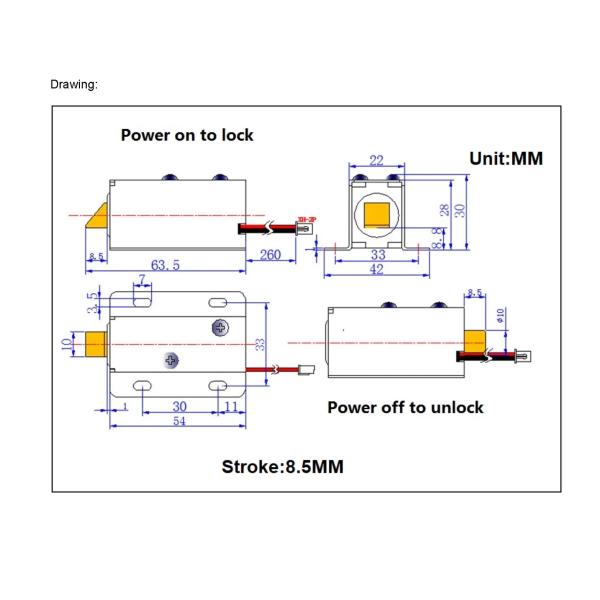

Frame Size: L54xW42xH28 Service Life: >500,000 Times
Stroke: 8.5 mm Lead time: 5 days if have stock
Action Form: Push Sample Order: Acceptable
Voltage: DC 12v/24v or customzied MOQ: 5 PCS
Duty Cycle: 10%~100% Warranty: 2 Year
Install Thread size: M3 Origin: dongguan
N.W.: 180 g Surface: Electroplating
Certificate: CE/ROHS Material: steel & enameled wire

U1054-2 DC 12V 24V Normally Open Push Pull Electric Solenoid Cabinet Lock

U1054-2 DC 12V 24V Normally Open Push Pull Electric Solenoid Cabinet Lock

U1054-2 DC 12V 24V Normally Open Push Pull Electric Solenoid Cabinet Lock

FAQ: Push pull solenoid

Q: Are you trading company or manufacturer? And where is your factory located?
A: We are factory. Our factory is located in Ningbo City, 2 hours from Shanghai Airport by car.

Q: Do you have CE approved?
A: Yes, we have CE and ROHS certificate

Q: How to choose a suitable electromagnet quickly?
A: Please provided us following parameters:
Act form: pull or push type?
Frame Dimension?
Stroke,
Duty cycle,
Cable length and connector,

-------------------------------
For example: You can say I want purchase open frame solenoid as below:
Open frame solenoid
Action Form: Pull type
Frame Size: L37xW26xH20
Stroke: 10 mm
Beginning Force: 100g
Voltage: DC 12V,2A
Duty Cycle: 10%, Energized time: 6S, de-energized time: 60s
Lead Wire: side out 10 cm, with XH2.54 male connector.
Install Thread size: M3
---------------------------------------
Q: How long is your delivery time?
A: Samples ready for delivery in 3 days if the goods are in stock, or in 7-10 days for for customized product. It is according to quantity.
Normally, you will get our samples in 7-10 days after payment.

Q: Can you customized electromagnet?
A: Yes, you are welcome.

Q: Can I print my Brand/Logo on the product?
A: Yes, free of charge.
