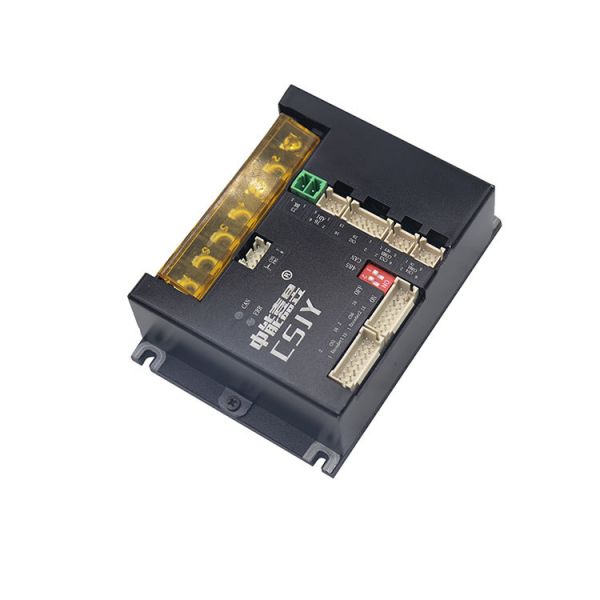

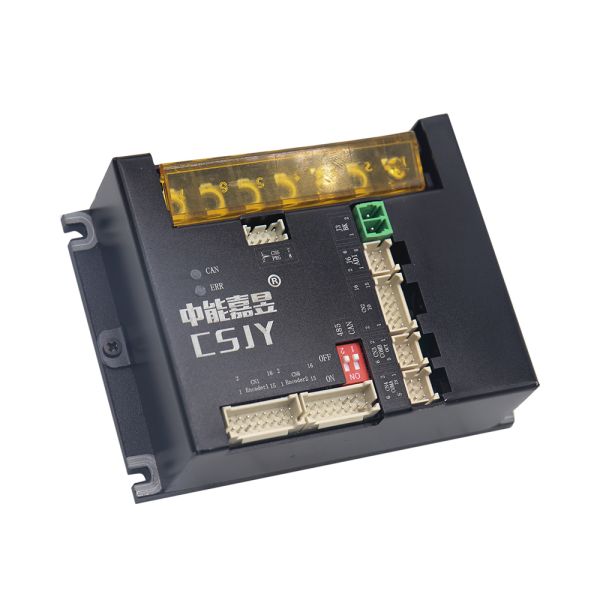

Small-size Incremental Encoder DC Servo Drive with Dual Closed-loop Control for 12~48V Low-voltage Applications
Small-size Incremental Encoder DC Servo Drive with Dual Closed-loop Control for 12~48V Low-voltage Applications
Small-size Incremental Encoder DC Servo Drive with Dual Closed-loop Control for 12~48V Low-voltage Applications
Small-size Incremental Encoder DC Servo Drive with Dual Closed-loop Control for 12~48V Low-voltage Applications
Small-size Incremental Encoder DC Servo Drive with Dual Closed-loop Control for 12~48V Low-voltage Applications
Small-size Incremental Encoder DC Servo Drive with Dual Closed-loop Control for 12~48V Low-voltage Applications
Small-size Incremental Encoder DC Servo Drive with Dual Closed-loop Control for 12~48V Low-voltage Applications
Small-size Incremental Encoder DC Servo Drive with Dual Closed-loop Control for 12~48V Low-voltage Applications
Small-size Incremental Encoder DC Servo Drive with Dual Closed-loop Control for 12~48V Low-voltage Applications
Small-size Incremental Encoder DC Servo Drive with Dual Closed-loop Control for 12~48V Low-voltage Applications
Specifications
Brand Name :
CSJY
Model Number :
GL12B-10630
Certification :
CE rohs
Place of Origin :
China
MOQ :
2pcs
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
1000pcs per month
Delivery Time :
10-15days after payment
Packaging Details :
Package
Description
Small-Size Incremental Low-Voltage Servo Drives
Compact servo drives designed for automation industry applications, compatible with low-voltage servo motors and featuring advanced control capabilities.
,Small-size Incremental Encoder DC Servo Drive with Dual Closed-loop Control for 12~48V Low-voltage Applications
K

Small-size Incremental Encoder DC Servo Drive with Dual Closed-loop Control for 12~48V Low-voltage Applications

Small-size Incremental Encoder DC Servo Drive with Dual Closed-loop Control for 12~48V Low-voltage Applications

Small-size Incremental Encoder DC Servo Drive with Dual Closed-loop Control for 12~48V Low-voltage Applications

ey Features
  • Dual closed-loop control system with incremental encoder and Tamagawa absolute encoder
  • RS485 and CANopen communication support
  • Advanced servo control algorithms for high-speed response
  • External pulse command input capability
  • Built-in internal position positioning function
  • Point-to-point control including homing and positioning
Technical Specifications
Rated Input Voltage 12~48V
Rated Current 30A
Peak Current 3 times peak
Pulse Input 5V differential input 0~500kHz; 24V single-ended input 0~200kHz
Encoder Feedback Dual closed loop control, first loop incremental encoder feedback input; Second loop Tamagawa absolute encoder version
Communication Type RS485 + CAN
Protection Over-current, Over-voltage, Under-voltage, Over-temperature
Ambient Temperature -25~55°C (non-freezing)

Frequently Asked Questions
Are you a factory or trader?
We are a factory with a professional R&D team as introduced in our company information.
How can we guarantee quality?
Always provide pre-production samples before mass production and conduct final inspection before shipment.
What products can you buy from us?
Access servo drives, speed gate drives, turnstile controllers, swing gate drives, barrier gate controllers, servo motors, and mechanisms.
Why should you buy from us instead of other suppliers?
We hold multiple invention patents and software copyrights for servo drive and channel gate control technology. We are committed to R&D, production, sales, and comprehensive pre-sales and after-sales service for automatic gate control movement core modules.
What is your after-sales service?
Free maintenance within 12-month guarantee period, lifetime consultation, and professional solutions for installation and maintenance.
Do you have relevant certifications?
All products are manufactured according to ISO9001 and CE requirements.
How about delivery times?
Samples: 3-5 days; Bulk orders: 15-30 days.
