24v 40w 3A Turnstile Brushless Servo Motor Low-voltage Brushless Motor For Access Gate
24v 40w 3A Turnstile Brushless Servo Motor Low-voltage Brushless Motor For Access Gate
24v 40w 3A Turnstile Brushless Servo Motor Low-voltage Brushless Motor For Access Gate
24v 40w 3A Turnstile Brushless Servo Motor Low-voltage Brushless Motor For Access Gate
24v 40w 3A Turnstile Brushless Servo Motor Low-voltage Brushless Motor For Access Gate
24v 40w 3A Turnstile Brushless Servo Motor Low-voltage Brushless Motor For Access Gate
24v 40w 3A Turnstile Brushless Servo Motor Low-voltage Brushless Motor For Access Gate
24v 40w 3A Turnstile Brushless Servo Motor Low-voltage Brushless Motor For Access Gate
24v 40w 3A Turnstile Brushless Servo Motor Low-voltage Brushless Motor For Access Gate
24v 40w 3A Turnstile Brushless Servo Motor Low-voltage Brushless Motor For Access Gate

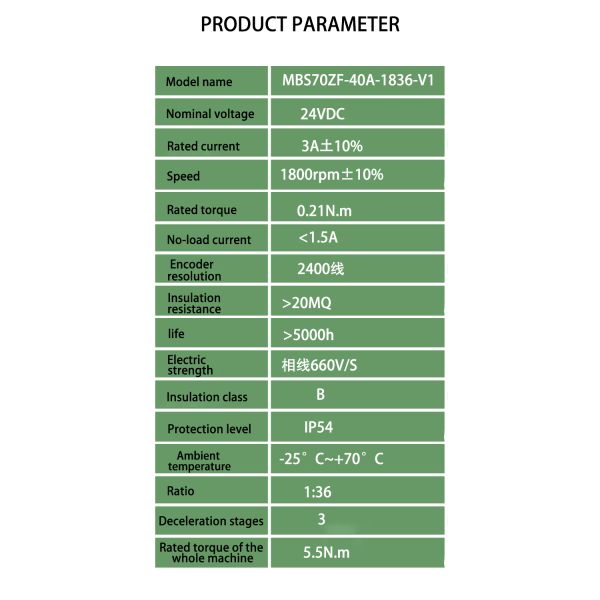

Specifications
Brand Name :
CSJY
Model Number :
GMBS70ZF-40A-1836-V1
Certification :
CE
Place of Origin :
China
MOQ :
2
Price :
Negotiation
Payment Terms :
L/C,T/T
Supply Ability :
500 sets per month
Delivery Time :
10-15 days
Packaging Details :
cardboard box
Rated current :
3A
Rated power :
40W
Rated voltage :
DC24V
Output torque :
7.6Nm
Motor rated speed :
1800rpm
poles :
5
Operating temperature :
-25℃~55℃
Reduction ratio :
36:1
Description

24v 40w 3A Turnstile Brushless Servo Motor Low-voltage Brushless Motor For Access Gate

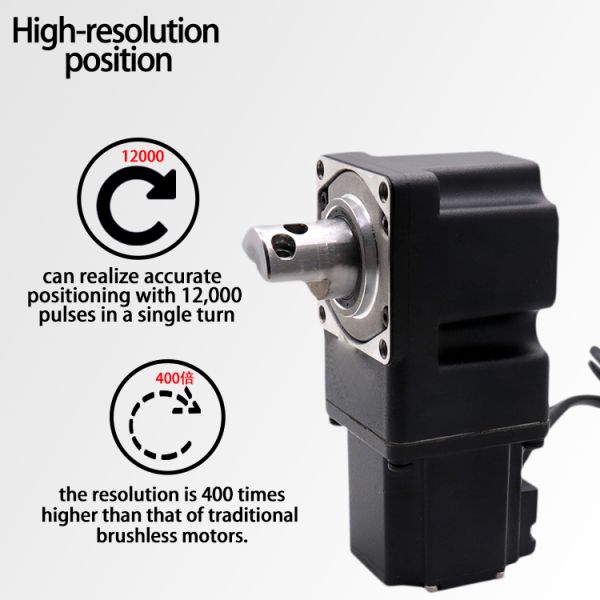

1.Self-developed 2400-line position feedback brushless servo motor, accurate positioningof the door panel position;
2. Different torque options to meet the market demand for door panels with different sizes;
3. Different motor mounting sizes to adapt to variable gate types;
4. Supporting the precise logic control system to realize the double anti-pinch of motor and position;
5. Adapt to-25~55C ambient temperature.

Rated current 3A
Rated power 40W
Rated voltage DC24V
Output torque 7.6Nm
Motor rated speed 1800rpm
poles 5

24v 40w 3A Turnstile Brushless Servo Motor Low-voltage Brushless Motor For Access Gate24v 40w 3A Turnstile Brushless Servo Motor Low-voltage Brushless Motor For Access Gate24v 40w 3A Turnstile Brushless Servo Motor Low-voltage Brushless Motor For Access Gate24v 40w 3A Turnstile Brushless Servo Motor Low-voltage Brushless Motor For Access Gate24v 40w 3A Turnstile Brushless Servo Motor Low-voltage Brushless Motor For Access Gate
