48V 400W 3000rpm Robot Servo Motor Integrated Servo Driver for Robot Automation Control
48V 400W 3000rpm Robot Servo Motor Integrated Servo Driver for Robot Automation Control
48V 400W 3000rpm Robot Servo Motor Integrated Servo Driver for Robot Automation Control
48V 400W 3000rpm Robot Servo Motor Integrated Servo Driver for Robot Automation Control
48V 400W 3000rpm Robot Servo Motor Integrated Servo Driver for Robot Automation Control
48V 400W 3000rpm Robot Servo Motor Integrated Servo Driver for Robot Automation Control
48V 400W 3000rpm Robot Servo Motor Integrated Servo Driver for Robot Automation Control
48V 400W 3000rpm Robot Servo Motor Integrated Servo Driver for Robot Automation Control
48V 400W 3000rpm Robot Servo Motor Integrated Servo Driver for Robot Automation Control
48V 400W 3000rpm Robot Servo Motor Integrated Servo Driver for Robot Automation Control
48V 400W 3000rpm Robot Servo Motor Integrated Servo Driver for Robot Automation Control
48V 400W 3000rpm Robot Servo Motor Integrated Servo Driver for Robot Automation Control
Specifications
Brand Name :
CSJY
Model Number :
GAl400
Certification :
CE, Rohs
Place of Origin :
China
MOQ :
2
Price :
Negotiate
Payment Terms :
L/C,T/T
Supply Ability :
50000 per year
Delivery Time :
7 days
Packaging Details :
carton
Model Name :
GAL400-ST-RC-G-00
Power supply input :
DC24~ 50V (48V)
Rated power Pn(W) :
400w
Rated speed(rpm) :
3000rpm
Rated torque(Nm) :
1.27nm
Maximum torque(Nm) :
3.81nm
Maximum continuous operating current (A) :
10A
Encoder feedback :
2500 lines incremental encoder
Communication :
RS232, RS485, CAN interface; supports both Modbus and CANopen protocols (-CO version)
Operating ambient temperature :
-20 to 55°C (no freezing)
Description

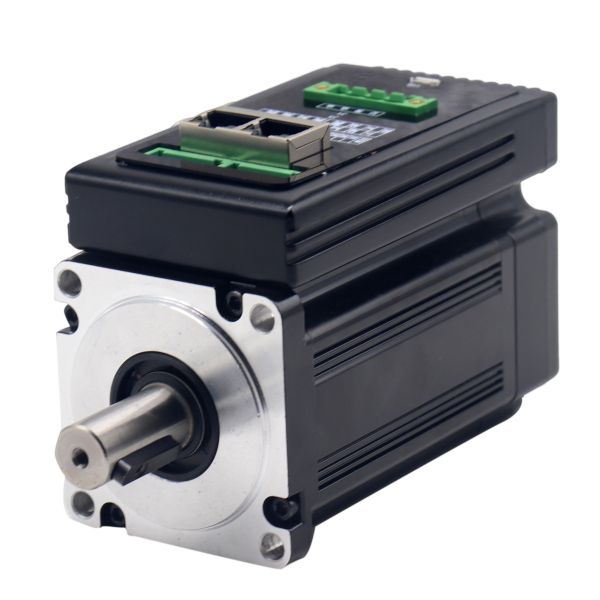

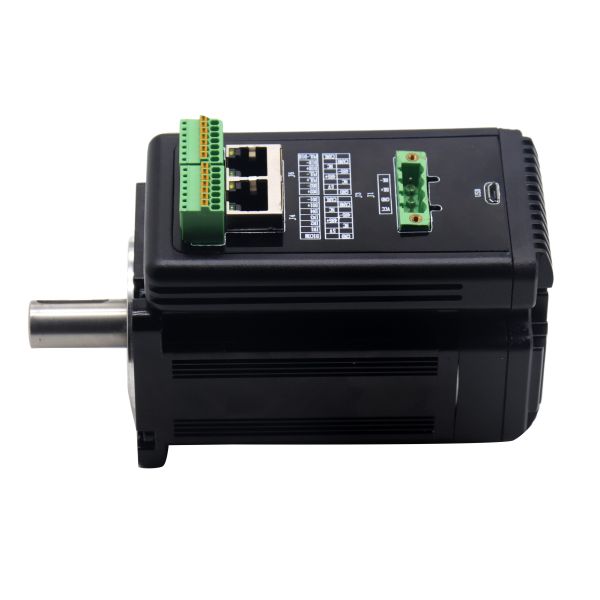

48V 400W 3000rpm Robot Servo Motor Integrated Servo Driver for Robot Automation Control
High-performance integrated servo motor and driver solution designed for robotic arm automation and precision control applications.
48V 400W 3000rpm Robot Servo Motor Integrated Servo Driver for Robot Automation Control 48V 400W 3000rpm Robot Servo Motor Integrated Servo Driver for Robot Automation Control
Supporting Functions
  • Modbus serial communication protocol (RS485)
  • Upper computer software with oscilloscope function for parameter modification, monitoring, and debugging
  • Serial port burn-in download tool with support for online remote serial port upgrade
Robot Servo Motor Features
  • Highly integrated design reduces installation complexity and saves space
  • Eliminates matching process between driver and motor, reducing cost
  • EtherCAT/CANopen protocol support with wide voltage input (24V-80VDC)
  • Optional off brake protection
  • Integrated single-turn incremental encoder with limited zero memory
  • Speed and position feedforward parameter configuration for improved response
  • Integrated I/O for positive limit, negative limit, origin, multi-function digital output, and pulse input detection
  • Real-time fault monitoring and protection including overcurrent, overload, overvoltage, undervoltage, overheating, overspeed, and out of tolerance protection
  • Application scenarios and development kit support for multiple scenarios, shortening development cycles
Robot Servo Motor Specifications
Parameter Specification
Power Supply Input DC24-50V (48V)
Rated Power Pn(W) 400W
Rated Speed (rpm) 3000 rpm
Rated Torque (Nm) 1.27 Nm
Maximum Continuous Operating Current (A) 10A
Encoder Feedback 2500-line incremental encoder
Communication RS232, RS485, CAN interface; supports Modbus and CANopen protocols (-CO version)
Operating Ambient Temperature -20 to 55°C (no freezing)
Environmental Humidity 90% RH or less (no condensation)
Protection Features Power input reversed, phase to phase short circuit, 5V short circuit, Busbar overvoltage protection, overcurrent protection, encoder disconnection protection
Robot Servo Motor Advantages
  • Motor winding protects power supply from short circuit
  • Motor winding inter-phase short circuit protection
  • Encoder disconnection protection
  • Over-voltage protection
  • Over-current protection
Applications
  • AGV servo motor
  • Logistics sorting systems
  • Medical instruments
  • 3C equipment
  • Autonomous Harvesting Robot
  • Educational Robotics
48V 400W 3000rpm Robot Servo Motor Integrated Servo Driver for Robot Automation Control
Frequently Asked Questions
Q1. What are your products used for?
A: Our products are used in packaging machines, AGV machines, logistics sorting machines, medical instruments, and various automation equipment.
Q2. What payment methods do you accept?
A: We accept PayPal, TT (Telegraphic Transfer), and Money Gram.
Q3. What shipping methods do you use?
A: For samples or small batches, we recommend air shipping (DHL, FedEx, TNT, UPS, EMS, or Aramex). We provide tracking numbers after shipment. For mass production or large batches, ocean shipping/sea shipment is recommended.
Q4. What is the lead time for products?
A: Standard samples: 2-5 days. Mass production lead time depends on quantity requirements. Note: Local customs may charge import taxes. Delivery times may vary based on postal service and customs processing.
Q5. What is your warranty period?
A: Warranty period: 12 months. We provide lifelong technical service and after-sales support.
Q6. Can I get a free sample?
A: Sorry, we do not provide free samples.
