DC12V~48V Low-voltage Servo Driver, AGV Servo Motor Driver, RS485 And CAN Communication Functions, 400W DC Servo Drive.
DC12V~48V Low-voltage Servo Driver, AGV Servo Motor Driver, RS485 And CAN Communication Functions, 400W DC Servo Drive.
DC12V~48V Low-voltage Servo Driver, AGV Servo Motor Driver, RS485 And CAN Communication Functions, 400W DC Servo Drive.
DC12V~48V Low-voltage Servo Driver, AGV Servo Motor Driver, RS485 And CAN Communication Functions, 400W DC Servo Drive.
DC12V~48V Low-voltage Servo Driver, AGV Servo Motor Driver, RS485 And CAN Communication Functions, 400W DC Servo Drive.
DC12V~48V Low-voltage Servo Driver, AGV Servo Motor Driver, RS485 And CAN Communication Functions, 400W DC Servo Drive.
DC12V~48V Low-voltage Servo Driver, AGV Servo Motor Driver, RS485 And CAN Communication Functions, 400W DC Servo Drive.
DC12V~48V Low-voltage Servo Driver, AGV Servo Motor Driver, RS485 And CAN Communication Functions, 400W DC Servo Drive.
DC12V~48V Low-voltage Servo Driver, AGV Servo Motor Driver, RS485 And CAN Communication Functions, 400W DC Servo Drive.
DC12V~48V Low-voltage Servo Driver, AGV Servo Motor Driver, RS485 And CAN Communication Functions, 400W DC Servo Drive.
Specifications
Brand Name :
CSJY
Model Number :
GL12B-10612-BS-CO-00
Certification :
CE rohs
Place of Origin :
China
MOQ :
2pcs
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
1000pcs per month
Delivery Time :
10-15days after payment
Packaging Details :
Package
Description

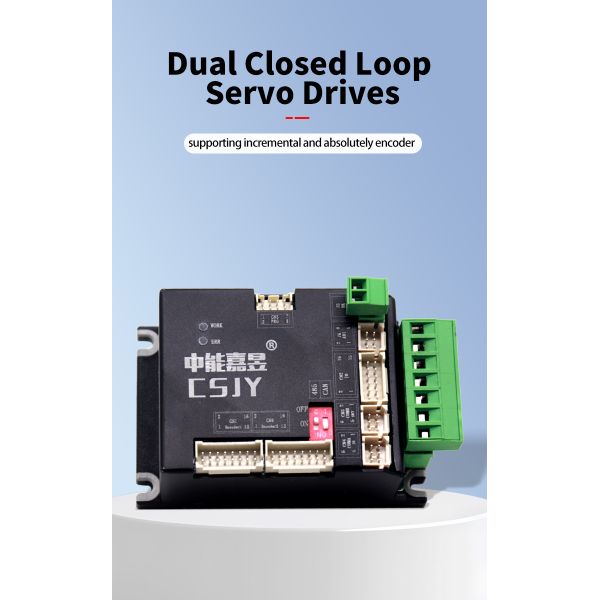

Compatible with low-voltage servo motors, featuring dual closed-loop control: the first loop uses an incremental encoder for feedback input; the second loop uses a Tamagawa absolute encoder.

Supports RS485 and CANopen communication.

Utilizes a new generation of servo control algorithms for high-speed response.

Supports external pulse command input and has built-in internal position positioning function, supporting point-to-point control such as homing and positioning.

Rated Input voltage 12~48V
Rated Current 3/6/12/20A
Peak current 3 times peak
Discharge 20A NPN
Encoder feedback Dual closed loop control,first loop incremental encoder feedbackinput;Second loop Tamagawa absoluteencoder version
Communication type RS485+CAN
Protection Over-current, Over-voltage,Under-voltage,Over-temperature.
Ambient temperature -25~55C(non-freezing)

DC12V~48V Low-voltage Servo Driver, AGV Servo Motor Driver, RS485 And CAN Communication Functions, 400W DC Servo Drive.DC12V~48V Low-voltage Servo Driver, AGV Servo Motor Driver, RS485 And CAN Communication Functions, 400W DC Servo Drive.

DC12V~48V Low-voltage Servo Driver, AGV Servo Motor Driver, RS485 And CAN Communication Functions, 400W DC Servo Drive.DC12V~48V Low-voltage Servo Driver, AGV Servo Motor Driver, RS485 And CAN Communication Functions, 400W DC Servo Drive.
