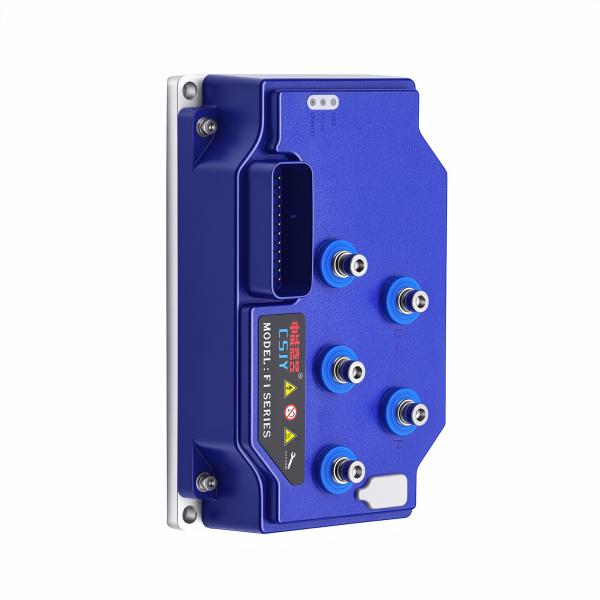

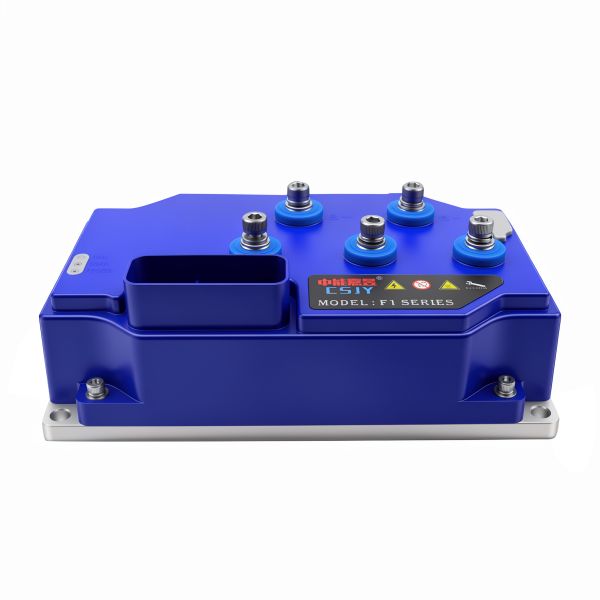

24V - 48V Electric Forklift Controller, With Absolute Value/incremental Encoder Feedback, IP67 Protection Level, Suitable For Cargo Handling Forklift AGV Trolleys
24V - 48V Electric Forklift Controller, With Absolute Value/incremental Encoder Feedback, IP67 Protection Level, Suitable For Cargo Handling Forklift AGV Trolleys
24V - 48V Electric Forklift Controller, With Absolute Value/incremental Encoder Feedback, IP67 Protection Level, Suitable For Cargo Handling Forklift AGV Trolleys
24V - 48V Electric Forklift Controller, With Absolute Value/incremental Encoder Feedback, IP67 Protection Level, Suitable For Cargo Handling Forklift AGV Trolleys
24V - 48V Electric Forklift Controller, With Absolute Value/incremental Encoder Feedback, IP67 Protection Level, Suitable For Cargo Handling Forklift AGV Trolleys
24V - 48V Electric Forklift Controller, With Absolute Value/incremental Encoder Feedback, IP67 Protection Level, Suitable For Cargo Handling Forklift AGV Trolleys
24V - 48V Electric Forklift Controller, With Absolute Value/incremental Encoder Feedback, IP67 Protection Level, Suitable For Cargo Handling Forklift AGV Trolleys
24V - 48V Electric Forklift Controller, With Absolute Value/incremental Encoder Feedback, IP67 Protection Level, Suitable For Cargo Handling Forklift AGV Trolleys
24V - 48V Electric Forklift Controller, With Absolute Value/incremental Encoder Feedback, IP67 Protection Level, Suitable For Cargo Handling Forklift AGV Trolleys
24V - 48V Electric Forklift Controller, With Absolute Value/incremental Encoder Feedback, IP67 Protection Level, Suitable For Cargo Handling Forklift AGV Trolleys
Specifications
Model Number :
GF1-611
Operating temperature :
-40~55°C
MOQ :
2
Delivery Time :
15 working days
Rated voltage range :
24~48VDC
Payment Terms :
T/T,L/C
Certification :
CE
Protection class :
IP67
Brand Name :
CSJY
product type :
Electric Forklift Servo Motor Controller
Price :
consult with
Supply Ability :
1000pcs/month
Place of Origin :
China
Communication method :
CANopen/CAN
Packaging Details :
carton
Description

24V - 48V Electric Forklift Controller, With Absolute Value/incremental Encoder Feedback, IP67 Protection Level, Suitable For Cargo Handling Forklift AGV Trolleys.

Category Item Parameter
Power Input Rated Voltage Range 24~48VDC

Startup Voltage ≥15V

Maximum Input Current Max 280A for asynchronous mode, Max 350A for pump mode
Power Output Maximum Output Current Max 280A for asynchronous mode, Max 350A for pump mode

Output Frequency 200HZ
Control Characteristics Control Mode Closed-loop Vector Control / VF Control

PWM Frequency 10KHZ

Logic Terminal Input Current Range Approx. 0.2mA per channel under 24V inputApprox. 0.5mA per channel under 48V input

Dielectric Strength 500VAC

Protection Grade IP65

Cooling Method Natural cooling; forced air cooling is required under poor heat dissipation conditions

Communication Method CANOPEN
