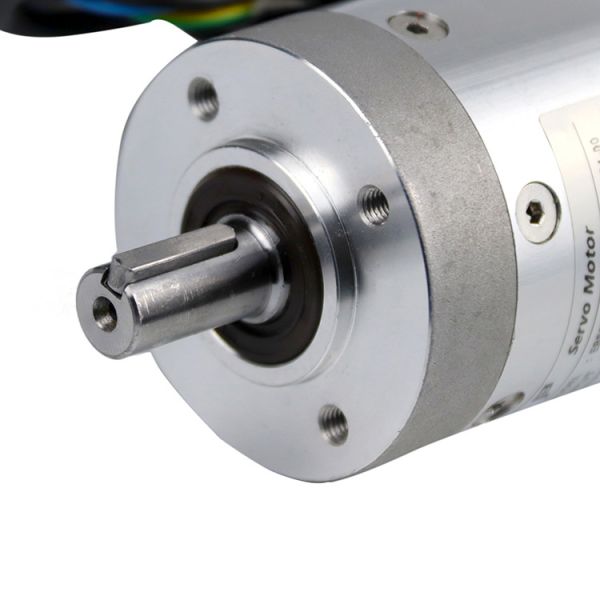

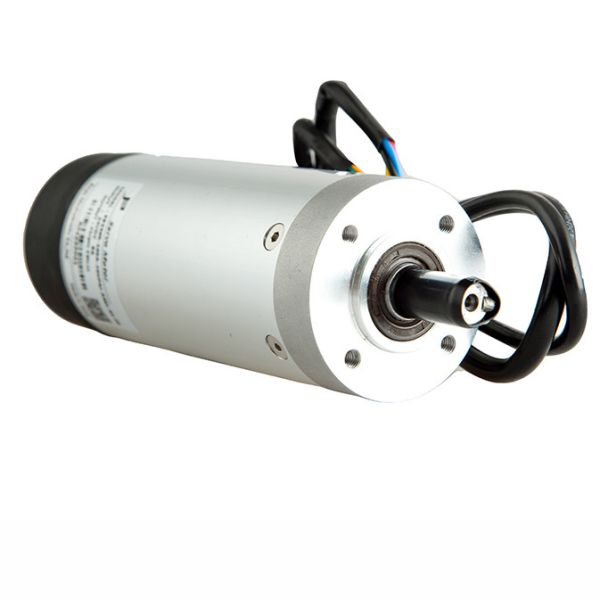

Incremental Encoder 100w Servo Motor Integrated with Gearbox for 1.5m High Glass Door panel Speed lane

Product Description

Engineered specifically for modern access control speed lanes and automatic glass door panels, this compact servo motor integrates a high-efficiency gearbox with a precision 100W BLDC servo motor. Designed to smoothly and reliably drive glass door panels up to 1.5 meters in height, this integrated actuation solution delivers the optimal balance of torque, speed, and positional accuracy required for high-traffic pedestrian speed gates.

The integrated gearbox eliminates the need for external reduction mechanisms, saving installation space, reducing mechanical backlash, and ensuring consistent torque transmission to the glass door panel. This is critical for speed lanes where the door must open and close rapidly, yet stop softly to prevent impact or vibration.

Technical Specifications

Key Features

• Integrated Gearbox: Precision planetary or worm gearbox integrated into the motor housing, offering high torque density and zero maintenance. Eliminates separate gearbox mounting and alignment issues.

• Suitable for 1.5m Glass Panels: Delivers sufficient torque (23 Nm after reduction) to smoothly drive glass door panels of up to 1.5m height and 15–25 kg weight, even under varying friction or light wind loads.

• Incremental Encoder Feedback: High-resolution encoder (9600 PPR) enables precise speed and position control. Supports bi-directional operation and real-time obstacle detection for anti-crushing safety compliance.

• Low-Voltage Operation: Available in 24V DC – safe for public areas and compatible with battery/UPS backup systems.

• Soft Start/Stop & Speed Profiling: The servo control system allows programmable acceleration and deceleration curves, minimizing mechanical stress on the glass panel and hinges, and ensuring quiet, smooth motion.

• Compact Integrated Design: Motor, encoder, and gearbox in one housing reduces overall length and simplifies cable management – ideal for narrow speed lane pedestals.

• Durable Construction: Aluminum housing, stainless steel shafts, and IP56 protection against dust and splashing water. Operating temperature range -20°C to +55°C.

• Silent Operation: Optimized gear design and BLDC commutation result in noise levels below 55 dB at 1 meter, suitable for noise-sensitive environments like libraries or hospitals.
