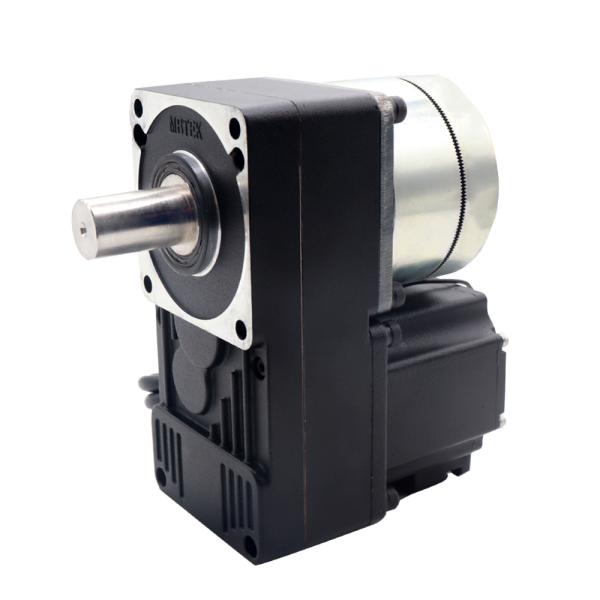

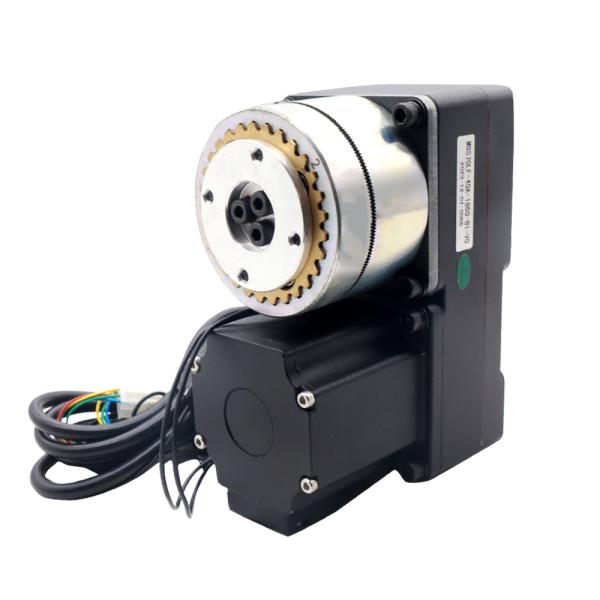

BLDC Servo Motor DC24V 40W Output Torque 9.2NM With Brake for Anti-collision Swing Gate

Product Description

Designed specifically for automated anti-collision swing gate systems, this high-torque BLDC servo motor delivers exceptional low-speed performance and precise control in a compact, energy-efficient package. Operating at 24V DC, the motor provides a safe low-voltage solution ideal for pedestrian access control, residential entrances, and commercial perimeter gates.

The integrated holding brake is the critical safety component for swing gates. It ensures the gate remains securely locked in any position when power is off or during emergency stops, providing reliable anti-collision functionality and preventing unintended gate movement caused by wind or external force. The motor's servo-grade feedback (typically Hall sensors or an encoder) enables smooth acceleration/deceleration curves, soft start/stop, and precise position control, essential for minimizing mechanical stress on gate hinges and preventing pinch or impact injuries.

Specification

Key Features

• High Torque at Low Speed: Delivers 9.2 Nm output torque at only 40W power consumption, eliminating the need for external gear reducers in most swing gate installations.

• Integrated Holding Brake: Spring-engaged, electrically released brake locks the gate securely when power is off, ensuring anti-collision safety, wind resistance, and compliance with access control safety standards.

• Low-Voltage 24V DC Operation: Safe for outdoor installation and simplifies wiring in residential/commercial environments; compatible with battery backup systems.

• BLDC Servo Control: Provides smooth, silent operation with controllable acceleration/deceleration, precise positioning, and adjustable speed profiles.

• Anti-Collision Protection: The motor's servo control logic can detect abnormal resistance (obstacle detection) and reverse or halt motion, reducing impact force and preventing gate-to-person or gate-to-vehicle collisions.

• Compact & Lightweight: Small form factor allows easy integration into existing gate operator housings or retrofit installations.

• Weather-Resistant Construction: Sealed against dust and moisture (IP54 or higher) for reliable outdoor operation.

• Low Maintenance: Brushless design eliminates carbon brush wear, offering long service life and minimal downtime.

• Fail-Safe Brake Action: Brake engages automatically on power loss, meeting safety requirements for automated swing gates.

Applications
