Specifications
Control Mode :
Position, speed, torque
Application :
AGV, AMR, robotic arm, precision automation equipment
Protection Functions :
Over-voltage, over-current, over-temperature, short-circuit
Certification :
CE, RoHS
Price :
Negotiable
Rated Current :
12A
Supply Ability :
1000 Pieces per Month
Digital Inputs / Outputs :
4 inputs / 2 outputs, opto-isolated
Place of Origin :
China
Packaging Details :
Anti-static bag with foam-lined export carton
Peak Current :
36A
Brand Name :
CSJY
MOQ :
2 Pieces
Operating Temperature :
-25 to +55 C
Input Voltage :
20~60V DC
Model Number :
GL11-10612
Delivery Time :
15-20 days for batch production
Payment Terms :
T/T,L/C
Communication Interface :
RS232, RS485, CAN
Description

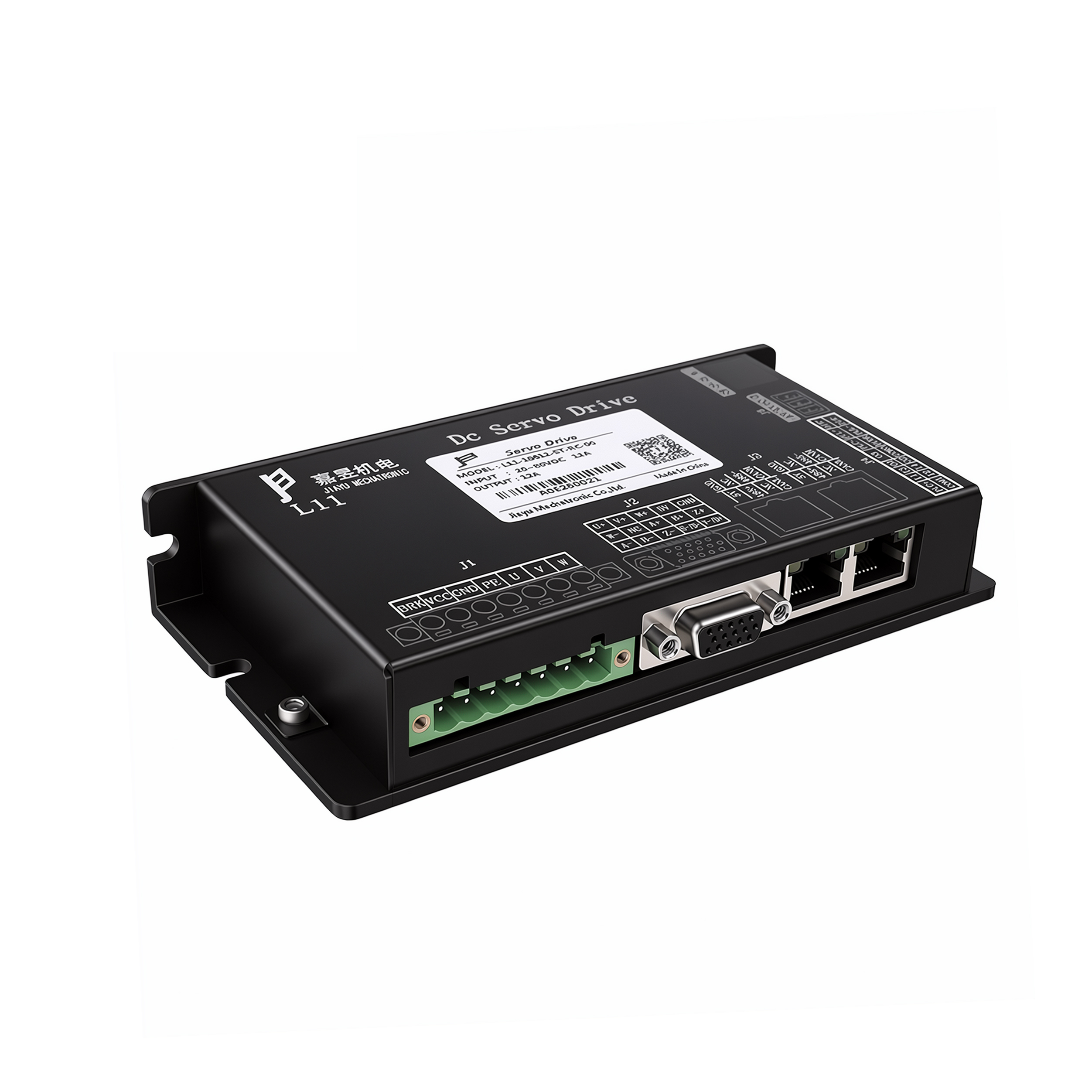

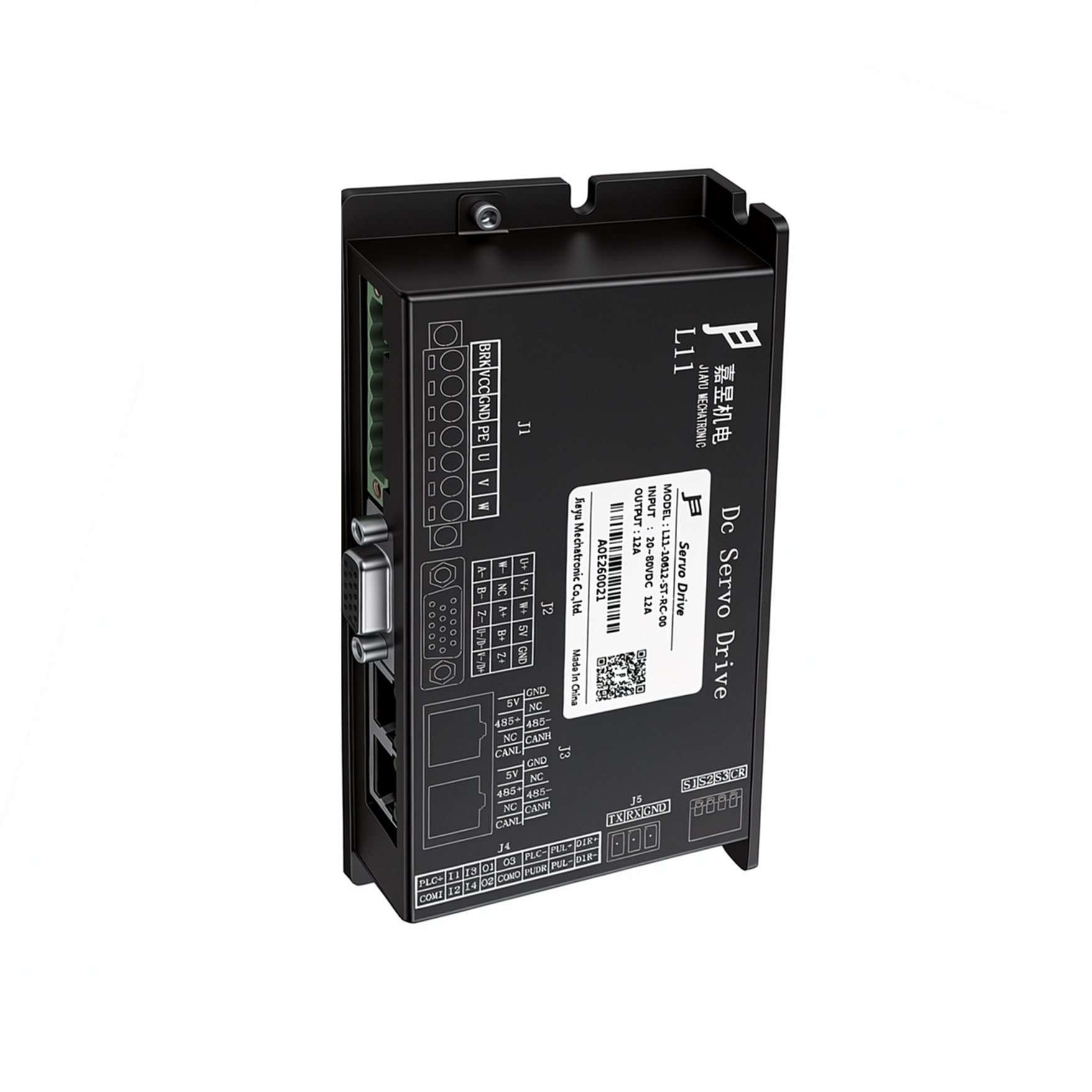

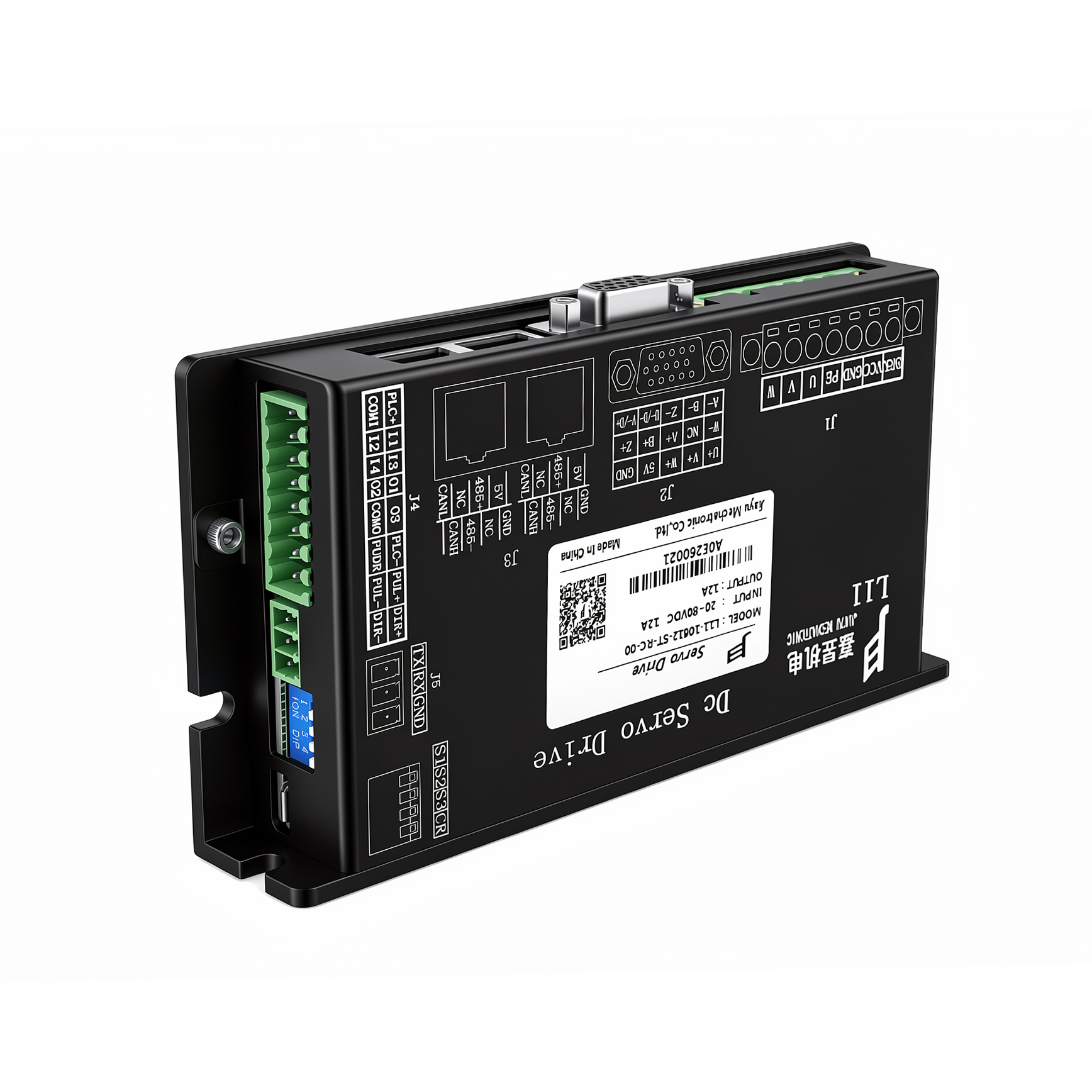

20-60V DC 12A low voltage DC servo drive engineered for high precision motion control applications. It integrates a 17-bit absolute encoder interface, RS232 / RS485 / CAN triple communication ports , delivering reliable and repeatable servo control for AGV, AMR, robotic arm and precision automation equipment.

Key Selling Points
1. High-Precision Control

Built-in 17-bit absolute encoder feedback with high resolution position detection, no homing required after power-on. Advanced current loop and position loop algorithms keep positioning repeatability stable, supporting high speed and high precision point-to-point and interpolation motion.

2. RS232 / RS485 / CAN Communication

Standard RS232, RS485 and CAN interfaces support Modbus RTU and CANopen protocols. Multi-drive daisy-chain networking enables centralized parameter setting, real-time status monitoring and coordinated motion control of multi-axis systems through one host controller.

3. Strong Overload Capability

Rated 12A continuous current with 36A peak current for 3 seconds. Smart current limiting and torque compensation keep the drive stable under sudden load changes, effectively preventing over-travel and stalling during acceleration and obstacle encounters.

Technical Specifications
Model Number GL11-10612
Input Voltage 20V~60V DC
Rated / Peak Current 12A / 36A
Encoder Feedback 17-bit absolute encoder
Communication Interface RS232, RS485, CAN
Control Mode Position, speed, torque
Digital I/O 4 inputs / 2 outputs, opto-isolated
Protection Functions Over-voltage, over-current, over-temperature, short-circuit
Operating Temperature -25 to +55 C
Cooling Method Natural convection, aluminum housing
Applications
  • AGV and AMR precise docking and navigation
  • Robotic arm joint and end-effector control
  • Medical and laboratory automation instruments
  • 3C assembly and precision packaging equipment
Why Choose CSJY
  • In-house R&D of servo motors and servo drives since 2016
  • CE and RoHS compliant, 100% full-load aging tested before delivery
  • 1 year quality warranty with responsive after-sales technical support
Contact CSJY today for the GL13B-2048 DC servo drive price, samples and OEM customization. Orders and inquiries are welcome.
