24-60V 12A DC Servo Drive 2500 Line Incremental Encoder RS232 RS485 CAN Overload Applicable to AGV electric forklifts
24-60V 12A DC Servo Drive 2500 Line Incremental Encoder RS232 RS485 CAN Overload Applicable to AGV electric forklifts
24-60V 12A DC Servo Drive 2500 Line Incremental Encoder RS232 RS485 CAN Overload Applicable to AGV electric forklifts
24-60V 12A DC Servo Drive 2500 Line Incremental Encoder RS232 RS485 CAN Overload Applicable to AGV electric forklifts
24-60V 12A DC Servo Drive 2500 Line Incremental Encoder RS232 RS485 CAN Overload Applicable to AGV electric forklifts
24-60V 12A DC Servo Drive 2500 Line Incremental Encoder RS232 RS485 CAN Overload Applicable to AGV electric forklifts
24-60V 12A DC Servo Drive 2500 Line Incremental Encoder RS232 RS485 CAN Overload Applicable to AGV electric forklifts
24-60V 12A DC Servo Drive 2500 Line Incremental Encoder RS232 RS485 CAN Overload Applicable to AGV electric forklifts
24-60V 12A DC Servo Drive 2500 Line Incremental Encoder RS232 RS485 CAN Overload Applicable to AGV electric forklifts
24-60V 12A DC Servo Drive 2500 Line Incremental Encoder RS232 RS485 CAN Overload Applicable to AGV electric forklifts
24-60V 12A DC Servo Drive 2500 Line Incremental Encoder RS232 RS485 CAN Overload Applicable to AGV electric forklifts
24-60V 12A DC Servo Drive 2500 Line Incremental Encoder RS232 RS485 CAN Overload Applicable to AGV electric forklifts
Specifications
Model Number :
GL11-10612
Certification :
CE, RoHS
Supply Ability :
1000 Pieces per Month
Communication Interface :
RS232, RS485,CANopen
Operating Temperature :
-25 to +55 C
Digital Inputs / Outputs :
6 inputs / 3 outputs, opto-isolated
Price :
Negotiable
Protection Functions :
Over-voltage, over-current, over-temperature, short-circuit, reverse polarity
Delivery Time :
15-20 days for batch production
Packaging Details :
Anti-static bag with foam-lined export carton
Application :
Heavy-load AGV, logistics robot, electric forklift, industrial automation
Peak Current :
36A
Input Voltage :
24-60V DC
Control Mode :
Position, speed, torque
MOQ :
2 Pieces
Rated Current :
12A
Place of Origin :
China
Brand Name :
CSJY
Payment Terms :
T/T,L/C
Description

24-60V 12A DC Servo Drive 2500 Line Incremental Encoder RS232 RS485 CAN Overload Applicable to AGV electric forklifts

24-60V 12A DC Servo Drive 2500 Line Incremental Encoder RS232 RS485 CAN Overload Applicable to AGV electric forklifts

24-60V 12A DC Servo Drive 2500 Line Incremental Encoder RS232 RS485 CAN Overload Applicable to AGV electric forklifts

24-60V 12A DC Servo Drive 2500 Line Incremental Encoder RS232 RS485 CAN Overload Applicable to AGV electric forklifts

24-60V 12A DC Servo Drive 2500 Line Incremental Encoder RS232 RS485 CAN Overload Applicable to AGV electric forklifts

GL11-10612 is a 24-60V DC 12A high overload DC servo drive designed for heavy-load mobile robots and industrial automation.RS232 / RS485 / CAN communication and 300% peak overload capability, providing strong starting torque and smooth speed control under demanding working conditions.

Key Selling Points
1. RS232 / RS485 / CAN Communication

Equipped with RS232, RS485 and CAN bus interfaces supporting CANopen protocols. Users can monitor torque, speed and fault status in real time and adjust servo parameters online, simplifying multi-axis system wiring and debugging.

2. Strong Overload Capability

Delivers 12A continuous current and up to 36A peak current for 2 seconds. Reinforced power stage and intelligent thermal management maintain stable output during repeated start-stop, climbing and impact load conditions, reducing machine downtime.

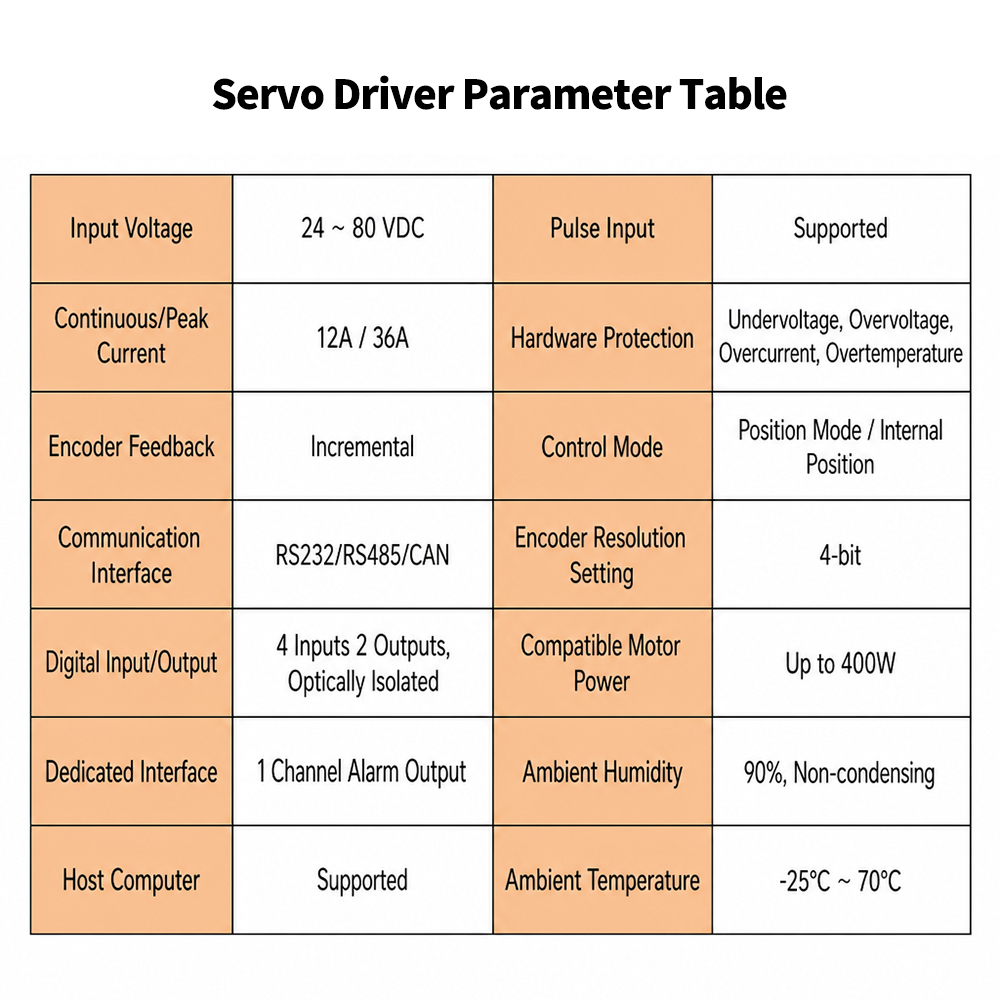

Technical Specifications
Model Number GL11-10612
Input Voltage 24-60V DC
Rated / Peak Current 12A / 36A
Encoder Feedback 2500-line incremental encoder, dual closed-loop
Communication Interface RS232, RS485, CAN (Modbus RTU / CANopen)
Control Mode Position, speed, torque
Digital I/O 6 inputs / 3 outputs, opto-isolated
Protection Functions Over-voltage, over-current, over-temperature, short-circuit, reverse polarity
Operating Temperature -10 to +60 C
Cooling Method Aluminum housing with forced fan cooling

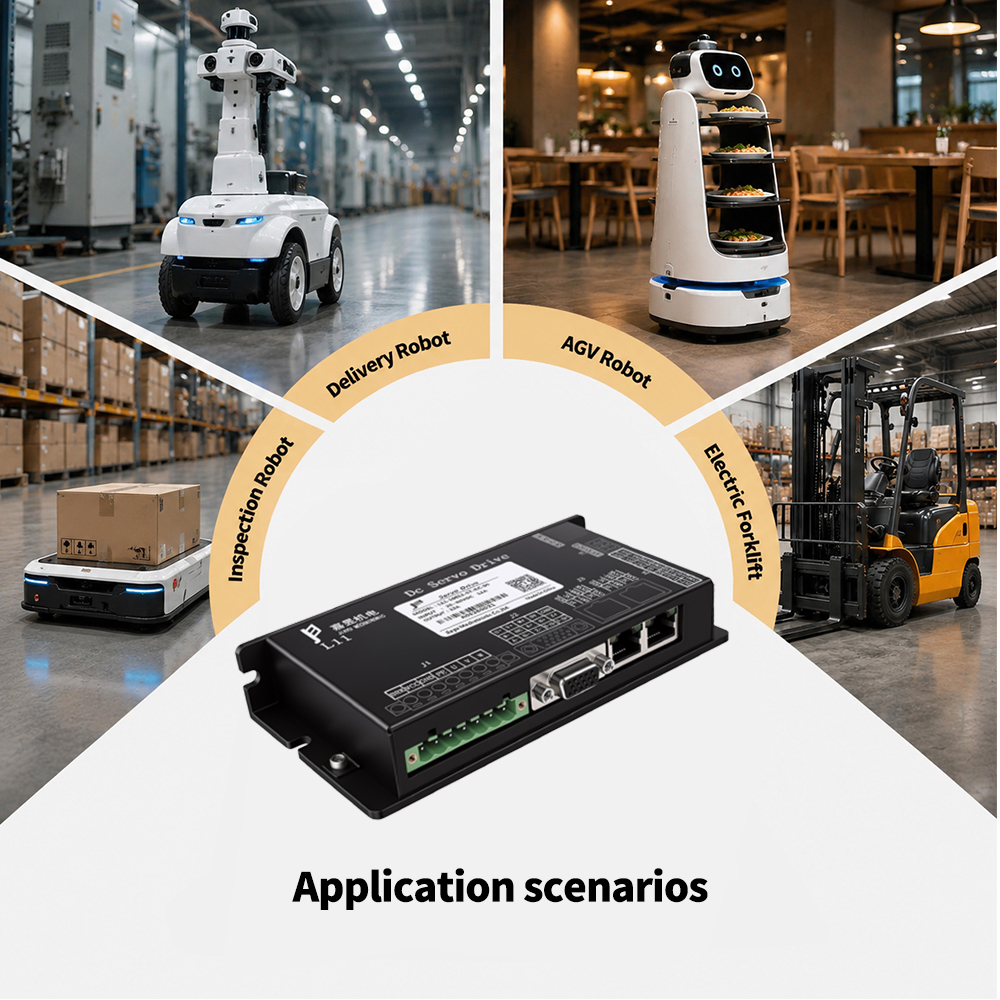

Applications
  • Heavy-load AGV and warehouse logistics robots
  • Electric forklift drive and hydraulic pump control
  • Turnstile and barrier gate drive systems
  • Conveyor and packaging machinery automation
Why Choose CSJY
  • Self-developed servo drive matched with CSJY servo motors

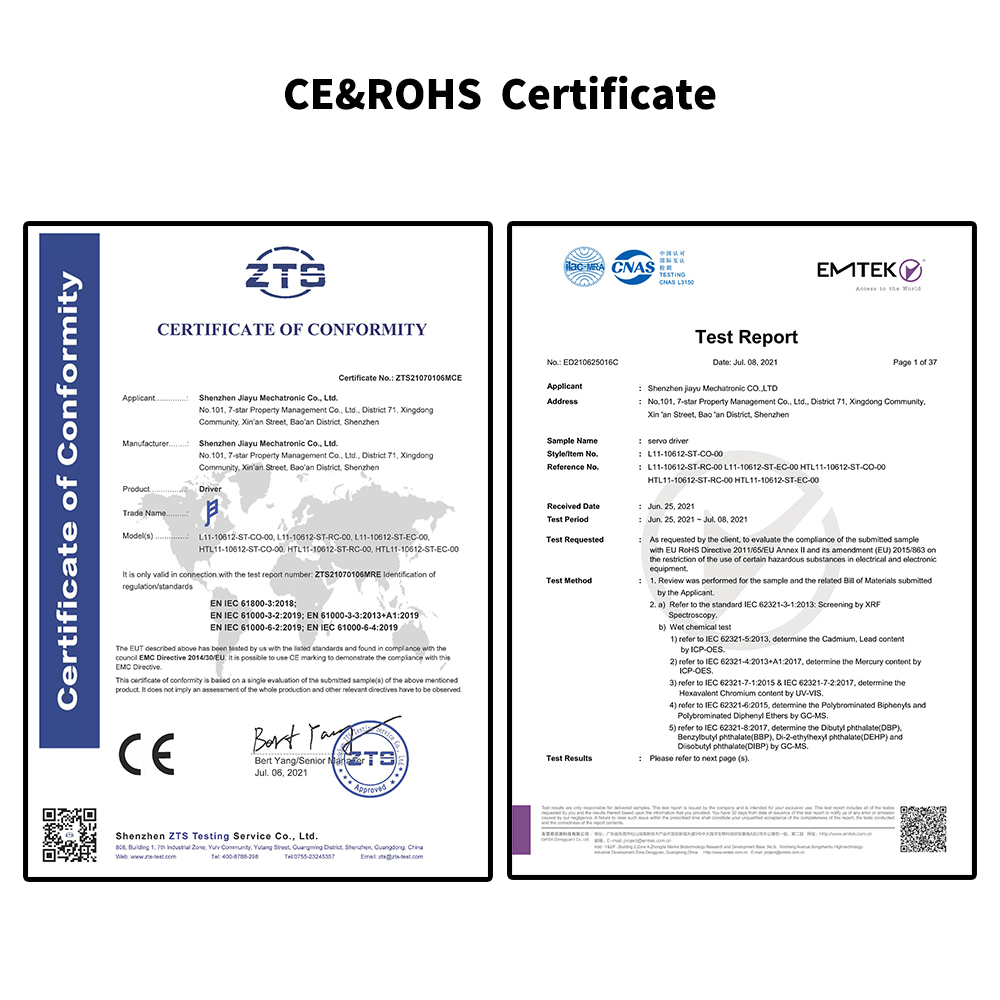

  • CE and RoHS compliant with strict production testing process
  • Fast delivery and 1 year quality warranty
Contact CSJY today for the GL13B-6020 DC servo drive price, samples and technical support. Global distribution and OEM orders are welcome.
