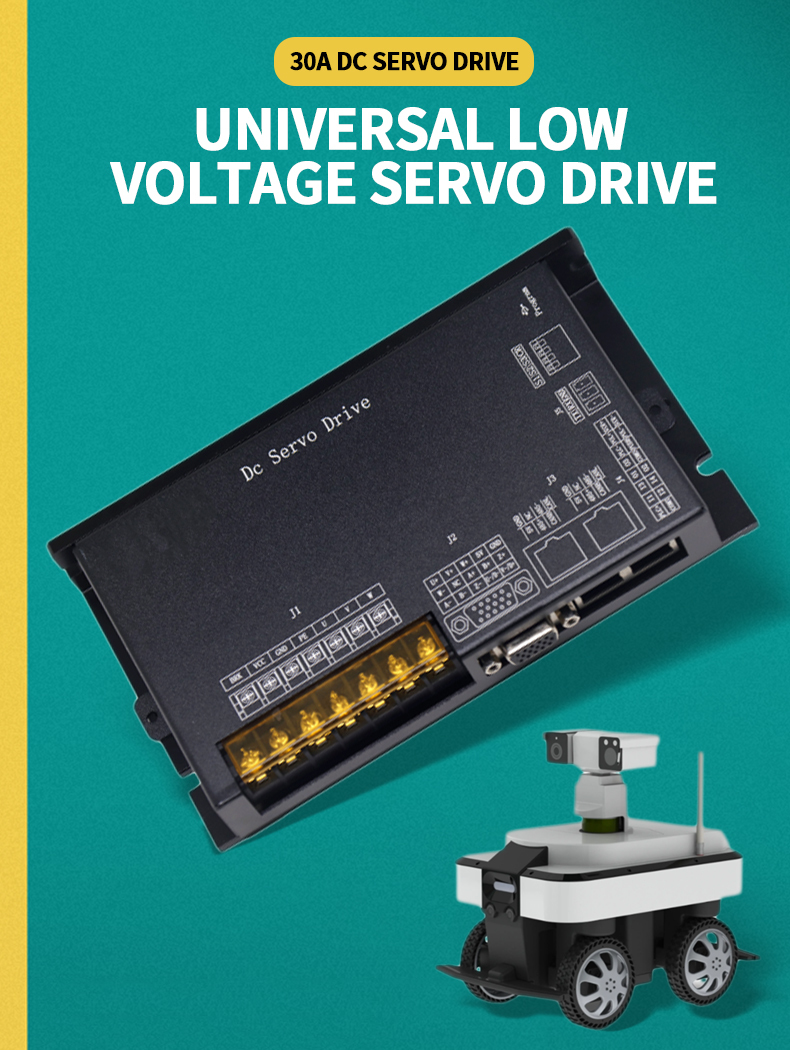

48V Low‑Voltage Servo Driver RS485 CANopen Optional EtherCAT AGV Mobile Robot Servo Controller
48V Low‑Voltage Servo Driver RS485 CANopen Optional EtherCAT AGV Mobile Robot Servo Controller
48V Low‑Voltage Servo Driver RS485 CANopen Optional EtherCAT AGV Mobile Robot Servo Controller
48V Low‑Voltage Servo Driver RS485 CANopen Optional EtherCAT AGV Mobile Robot Servo Controller
48V Low‑Voltage Servo Driver RS485 CANopen Optional EtherCAT AGV Mobile Robot Servo Controller
48V Low‑Voltage Servo Driver RS485 CANopen Optional EtherCAT AGV Mobile Robot Servo Controller
Specifications
Model Number :
GL11-10630
Rated Current :
30A
MOQ :
2PCS
Delivery Time :
7 days
Weight :
0.5kg
Payment Terms :
L/C,T/T
Ambient Temperature :
-25℃-55℃
Encoder Type :
Incremental Encoder
Price :
Negotiate
Motor Type :
DC Servo Driver
Size :
174.5*97.5*28.8mm
Supply Ability :
5000pcs/month
Power Supply :
DC48V
Brand Name :
CSJY
Drive Type :
DC Servo Drive
Certification :
CE, Rohs
Place of Origin :
China
Packaging Details :
carton
Description

48V Low‑Voltage Servo Driver RS485 CANopen Optional EtherCAT AGV Mobile Robot Servo Controller


This low‑voltage servo drive is widely used in automated mobile robot (AMR), AGV handling trolley,

warehouse logistics robot, service robot,


Technical Specifications


Item Specification Parameter
Applicable Rated Motor Power


400W / 1000W Low‑voltage Servo Motor
Encoder Feedback Type


Incremental Encoder & Absolute Encoder Supported
Working Control Mode

Position Control / Speed Control / Torque Control / Single‑axis Independent Control
Standard Communication Interface

 RS485, CANopen Field‑bus, Supports Multi‑axis Synchronous Equipment Control
Optional Communication Protocol

 EtherCAT Industrial Ethernet
Rated Input Working Voltage

 DC 24‑72V (Wide‑range Battery Power Supply, perfect for battery‑powered mobile robots)
Power‑supply Design Dual‑power independent control; Built‑in 24V holding brake power supply
Pulse Signal Input Type Differential‑mode signal / Open‑collector signal optional
Main Application AGV, AMR, Automated Guided Vehicle, Service Robot, Logistic Handling Robot, Automated Warehouse Equipment


Product Overview

Wide motor compatibility: Works with 400W & 1000W low‑voltage servo motor, supports incremental‑type and absolute‑value encoder feedback,

Four working control modes: Position control, speed control, torque‑closed‑loop control and standalone single‑axis control,

Custom‑available EtherCAT high‑speed real‑time communication option for high‑precision synchronous motion,

48V Low‑Voltage Servo Driver RS485 CANopen Optional EtherCAT AGV Mobile Robot Servo Controller

48V Low‑Voltage Servo Driver RS485 CANopen Optional EtherCAT AGV Mobile Robot Servo Controller

48V Low‑Voltage Servo Driver RS485 CANopen Optional EtherCAT AGV Mobile Robot Servo Controller

48V Low‑Voltage Servo Driver RS485 CANopen Optional EtherCAT AGV Mobile Robot Servo Controller

48V Low‑Voltage Servo Driver RS485 CANopen Optional EtherCAT AGV Mobile Robot Servo Controller

FAQ

Q1: What power‑range servo motors does this low‑voltage servo drive support?

A1: It is compatible with 400W and 1000W low‑voltage DC servo motor, which is widely adopted on mobile robot chassis.

Q2: Can the driver work with both incremental encoder and absolute encoder motor?

A2: Yes. Our servo driver supports both incremental‑type encoder and absolute‑value encoder feedback, you can

freely match your existing servo motor.

Q3: What control modes are available on this servo controller?

A3: Four complete control modes are provided: position control, speed control, torque control and independent single‑axis control. You can switch modes according to your robot motion requirement.
