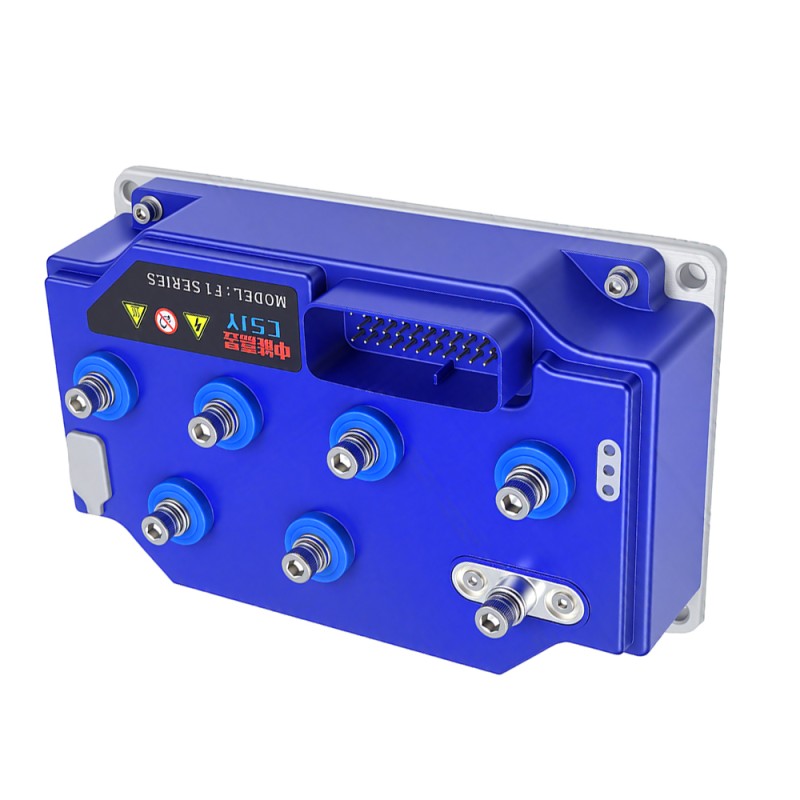

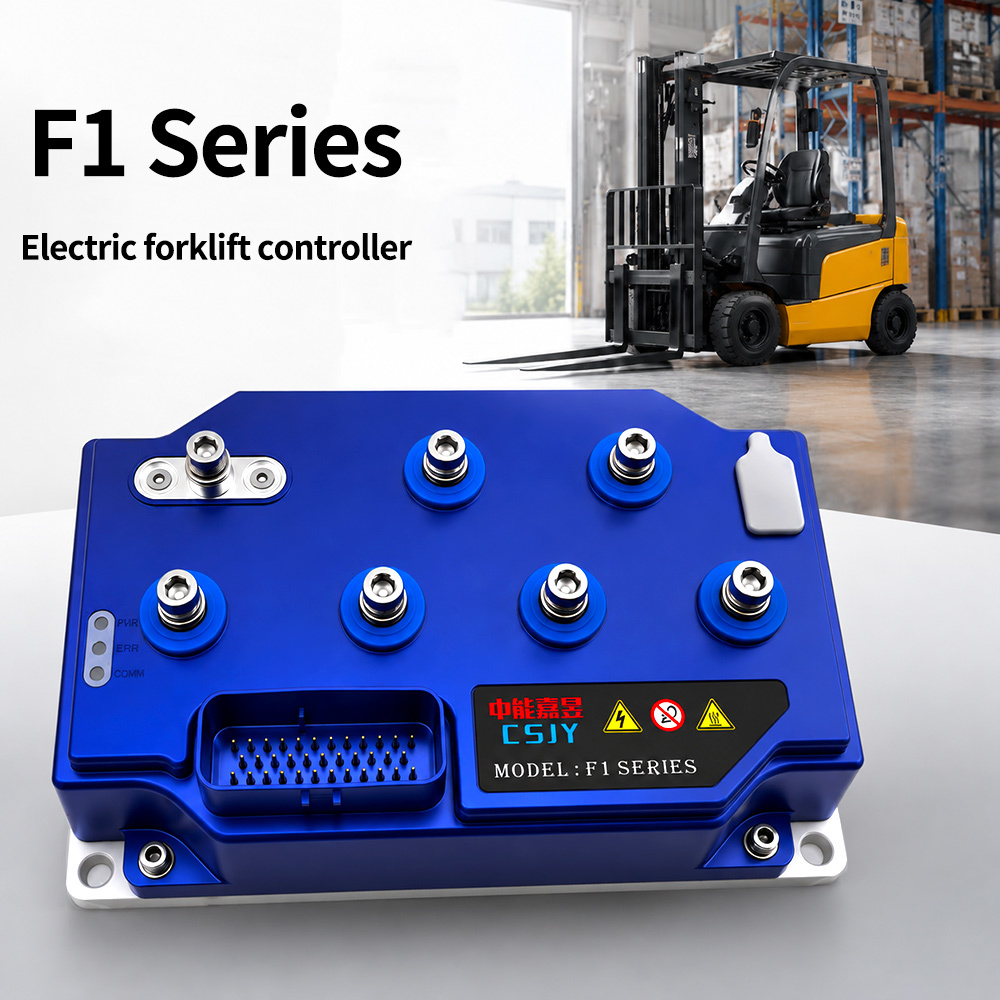

The GF1-511Electric Forklift Controller is a low-voltage servo motor controller that drives both the traction motor and the hydraulic pump motor of electric forklifts from a single compact unit. Built on sinusoidal FOC closed-loop vector control, it delivers smooth acceleration, precise speed regulation and strong low-speed torque for indoor and outdoor material handling equipment.

Key Features

• Regenerative Braking: Built-in energy feedback returns braking energy to the battery, extending runtime and reducing brake pad wear.
• Dual-Channel Control: Simultaneously drives traction and pump motors with independent parameter sets for optimized forklift performance.
• Servo-Grade Precision: Sinusoidal FOC closed-loop vector control with incremental or Tamagawa absolute encoder feedback ensures smooth, accurate motion.
• Robust Communication: CANopen and RS485 (Modbus) interfaces support fleet management, remote monitoring and PLC integration.
• IP67 Protection: Fully sealed housing resists dust, water spray and harsh warehouse environments.
• Comprehensive Protections: Over-current, over-voltage, under-voltage, over-temperature and motor phase-loss protection for reliable long-term operation.

Technical Parameters

• Rated Voltage: DC24V-80V
• Control Mode: Sinusoidal FOC Closed Loop Vector Control
• Communication Interface: CANopen, RS485 (Modbus)
• Protection Class: IP67
• Regenerative Braking: Built-in Energy Feedback
• PWM Frequency: 10kHz
• Overload Capacity: 150% for 60 seconds
• Operating Temperature: -30°C to +50°C
• Encoder Support: Incremental / Absolute (Tamagawa)
• Dimensions: 195 x 115 x 62mm
• Weight: 1.4kg

Applications

The GF1-511is ideal for electric counterbalance forklifts, pallet trucks, reach trucks, tow tractors, AGVs and aerial work platforms requiring a compact, high-performance servo motor controller with energy-saving regenerative braking.

Support and Services

Our engineering team provides installation guidance, parameter tuning, firmware updates, customization and after-sales technical support. Contact us for samples, OEM branding and volume pricing.
