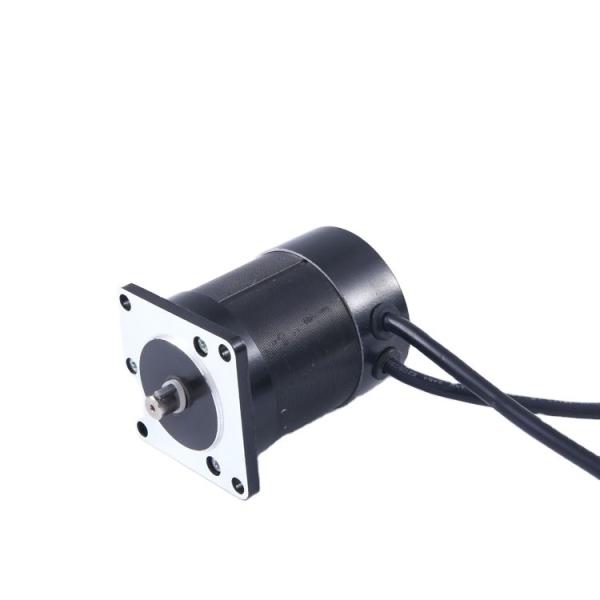

Electric BLDC Motor 48v 310vdc BLDC Motor 6000rpm 1000W
Electric BLDC Motor 48v 310vdc BLDC Motor 6000rpm 1000W
Specifications
Brand Name :
PV
Certification :
CE
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50000 Per Month
Delivery Time :
3-4weeks
Packaging Details :
cartons
Product Name :
Bushless Motor
Rated Voltage :
24V
Usage :
Car, FAN, Home Appliance, machine
Rated Torque :
0.2Nm - 3Nm
Rated Speed :
1000-15000rpm
Protect Feature :
Drip-proof
Description

Electric BLDC Motor 24v 36v 48v 310vdc Bldc Motor 6000rpm 1000W

Product Description
  • Product Name: Brushless DC Motor
  • Number of Phase: 3 Phase
  • Number of Poles: 4 Poles /8 Poles /10 Poles
  • Rated Voltage: 24v /36v /48v /310v
  • Rated Speed: 3000rpm /4000rpm /or customized
  • Rated Torque: Customized
  • Rated Current: Customized
  • Rated Power: 23w~2500W
Date Sheet
Item Specification
Winding type Star
Hall effect angle 120° (electrical angle)
Shaft run out 0.025mm
Radial play 0.06mm@450g
End play 0.08mm@450g
Max.radial force 200N@10mm from the flange
Max.axial force 60N
Insulation class Class B
Dielectric Strength 500VDC for one minute
Insulation resistance 100MΩMin.500VDC

Product Series
Poles No.
Rated Voltage
Rated Speed
Rated Torque
Rated Power
Motor Length
42mm BLDC Motor
8
24v
4000rpm
0.0625~0.25N.m
26~105w
41~100mm
57mm BLDC Motor
4
36v
4000rpm
0.055~0.44N.m
23~184w
37~107mm
60mm BLDC Motor
8
48v
3000rpm
0.3~1.2N.m
94~377w
78~120mm
80mm BLDC Motor
4
48v
3000rpm
0.35~1.4N.m
110~440w
78~138mm
86mm BLDC Motor
8
48v
3000rpm
0.35~2.1N.m
110~660w
71~138.5mm
110mm BLDC Motor
8
310v
3000rpm
1.65~6.6N.m
518~2073w
83~173mm
130mm BLDC Motor
10
310v
3000rpm
2.39~11.94N.m
750~2500w
115~190mm

Electric BLDC Motor 48v 310vdc BLDC Motor 6000rpm 1000W
