Specifications
Brand Name :
PV
Model Number :
42BLS SERIES BLDC MOTOR
Certification :
CE
Place of Origin :
China
MOQ :
10pcs
Price :
Can be negotiated
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000000pcs per month
Delivery Time :
15-30DAYS
Packaging Details :
Carton, Wooden case
Hall effect angle :
120 degree electrical angle
Phase :
3, 3-phase
Winding type :
Y
Shaft run out :
0.025mm
Magnet material :
Bonded NdFeB
Insulation class :
Class B
Insulation resistance :
100MΩmin 500VDC
Efficiency: :
IE3
Description

Prevail Brand 42mm 24V 4000RPM High Torque 1.65-4.5A BLDC Motor

Introduction

​1. Advantages of BLDC Motor

  • Better speed versus torque characteristics.
  • High dynamic response.
  • High efficiency.
  • Long operating life due to a lack of electrical and friction losses.
  • Noiseless operation.
  • Higher speed ranges.
  • 2. Applications

  • The cost of the Brushless DC Motor has declined since its presentation, because of progressions in materials and design. This decrease in cost, coupled with the numerous focal points it has over the Brush DC Motor, makes the Brushless DC Motor a popular component in numerous distinctive applications. Applications that use the BLDC Motor include, yet are not constrained to:

  • Consumer electronics
  • Transport
  • Heating and ventilation
  • Industrial engineering
  • Model engineering​​

Specification

Motor Model Unit 42BLS40WD2440 42BLS60WD2440 42BLS80WD2440
Number of Poles 8 8 8
voltage VDC 24 24 24
Rated speed rpm 4000 4000 4000
Rated torque N.m 0.063 0.125 0.185
Rated current Amps. 1.65 3.4 4.5
Rated power Watt. 27 52 77
Peak torque N.m 0.185 0.38 0.55
Torque constant N.m/Amps 0.035 0.041 0.042
Back EMF V/Krpm 3.17 3.13 3.28
Rotor inertia Kg.mm2 5.2 9.3 13.4
Body Length mm 40 60 80
Weight Kg 0.3 0.47 0.65

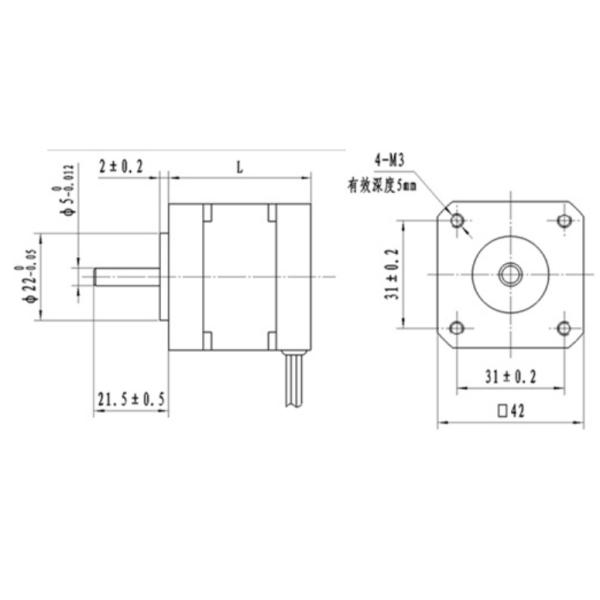

Size

Prevail Brand High Torque BLDC Motor 42mm 24V 4000RPM 1.65-4.5A

Prevail Brand High Torque BLDC Motor 42mm 24V 4000RPM 1.65-4.5A

  • Factory site

​Prevail Brand High Torque BLDC Motor 42mm 24V 4000RPM 1.65-4.5A

Prevail Brand High Torque BLDC Motor 42mm 24V 4000RPM 1.65-4.5A

Prevail Brand High Torque BLDC Motor 42mm 24V 4000RPM 1.65-4.5A

Prevail Brand High Torque BLDC Motor 42mm 24V 4000RPM 1.65-4.5A

Prevail Brand High Torque BLDC Motor 42mm 24V 4000RPM 1.65-4.5A
