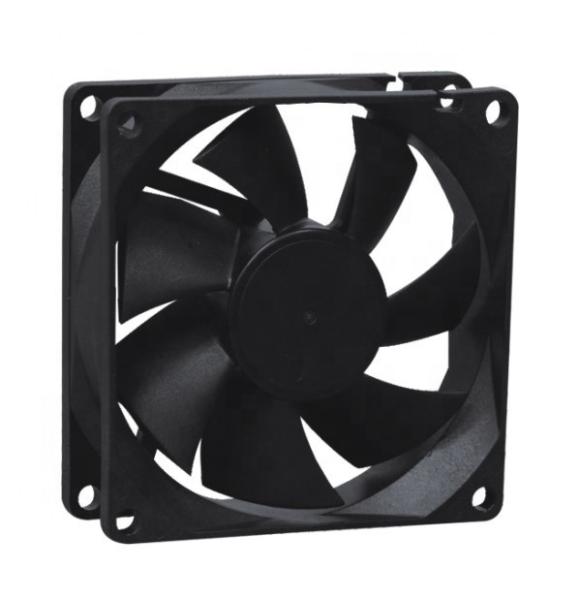

Anti Acid Waterproof DC Brushless Fan 5V Eco Friendly Moisture Proof
Anti Acid Waterproof DC Brushless Fan 5V Eco Friendly Moisture Proof
Specifications
Brand Name :
Cheng Home
Model Number :
B8012-XX
Certification :
UL TUV
Place of Origin :
China
MOQ :
2000 pcs
Price :
USD1.00-8.00 per piece
Payment Terms :
T/T
Supply Ability :
200-400K pieces per month
Delivery Time :
4-6 weeks
Packaging Details :
cartons on pallets
Feature :
easy to operate
Samples :
available
Option :
signal output
Bearing :
ball bearing or sleeve bearing
name :
DC Brushless Fan
voltage :
12v
Description

Ati-Acid , Ati-Alkali And Waterproof Dc Brushless Fan 5v Moisture-Proof​

This is DC smal axial fan 80*80*24.5mm which is widely application in HVAC system and industrial business area. We can custom power supply 12v and 24v , 100% copper motor, sleeve or ball bearing customization with very good balance and stable quality with CE, REACH, RoHS , ISO 9001 certificates.

Customize

1. Special voltage:Any voltage in the range of 3-48v
2. Material: Eco-friendly material,Flame-proof material
Moisture-proof,waterproof(IP55,IP56,IP68) or Complete
waterproof(Ati-acid,Ati-alkali and waterproof)
4. OEM,ODM service supported. Customize fan stickers.
5. Customize Cable length,connector.
6. Function customize.

Electric Strength 5mA max at 1500VAC for 1 min between lead wire and frame
Insulation Resistance 10M ohm between lead wire and frame(DC 500V)
Life Expectancy(Ball bearing) 50000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
Life Expectancy(Hydraulic bearing) >40000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
Life Expectancy(Fluid Dynamic bearing) >60000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
Operation Temperature -10~75 degree C(+14~167 degree F),normal; -10~90 degree C(+14~194 degree F), specification
Storage Temperature Storage Temperature: -40~75 degree C(-40~167 degree F)
Protection Motor protection and polarity protection
Lead wire UL1571 AWG28,30; UL1007 AWG24,26; UL1061 AWG26
Plastic Material Black PBT(UL94V-0)

Material

Frame Plastic PBT 94V0

lmpeller Platic PBT 94V0

Lead Wire: AWG26 "+" Red "-" Black Standard UL 1007

Option Signal output

Bearing:Ball bearing or Sleeve bearing

Anti Acid Waterproof DC Brushless Fan 5V Eco Friendly Moisture Proof

Specification:

Model Rated Voyage (DCV) Operating Voltage (DCV) Rated input (W) Rated Current (A) Operating Temperature (°. Storage Temperature | (°C) Speed (RPM) Max. Air Flow (CFM) Max. Aire Pressure (mmHjO) Noise (DB) Bearing Type Weight (g)
CHB8012A 12 6-13.8 1.08 0.09 -10-70 -40-70 2100 22.4 1.52 25 B/S 62
CHB8012B 12 6-13.8 1.44 0.12 -10-70 -40-70 2500 26.9 2.1 29 S/SB/B 62
CHB8012C 12 6-13.8 2.04 0.17 -10-70 -40-70 3000 32.5 3.02 34 B/S 62
CHB8012D 12 6-13.8 3.6 0.3 -10-70 -40-70 3600 37.7 4.02 39 S/B 62
