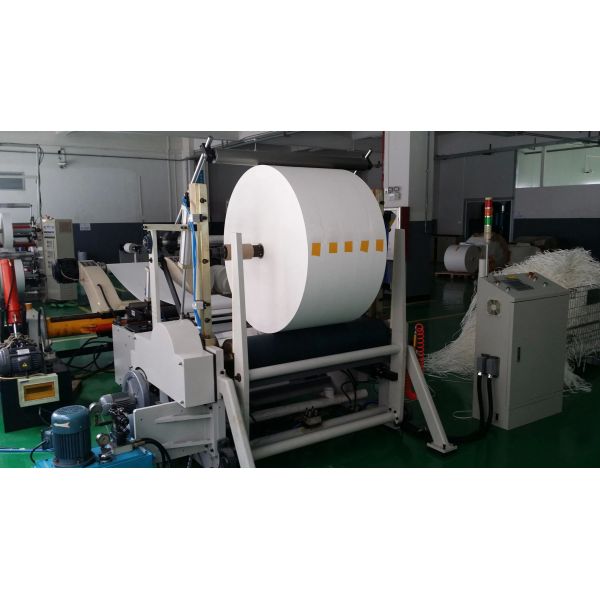

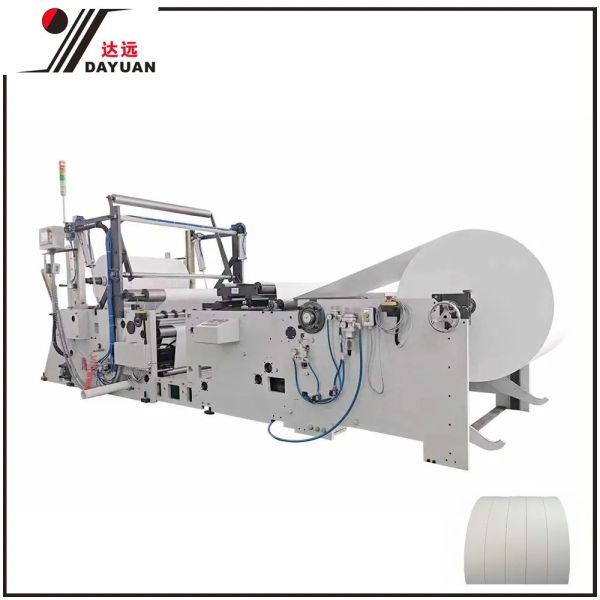

High-Capacity Roll Paper Slitter and Rewinding Machine with 400 m/min Speed
High-Capacity Roll Paper Slitter and Rewinding Machine with 400 m/min Speed
High-Capacity Roll Paper Slitter and Rewinding Machine with 400 m/min Speed
High-Capacity Roll Paper Slitter and Rewinding Machine with 400 m/min Speed
High-Capacity Roll Paper Slitter and Rewinding Machine with 400 m/min Speed
High-Capacity Roll Paper Slitter and Rewinding Machine with 400 m/min Speed
High-Capacity Roll Paper Slitter and Rewinding Machine with 400 m/min Speed
High-Capacity Roll Paper Slitter and Rewinding Machine with 400 m/min Speed
High-Capacity Roll Paper Slitter and Rewinding Machine with 400 m/min Speed
High-Capacity Roll Paper Slitter and Rewinding Machine with 400 m/min Speed
Specifications
Max. diameter :
1500mm
Model Number :
Fqbg-1100
Slitting Accuracy :
± 0.4mm
Max. rewinding diameter :
1200mm
Certification :
CE
Max. width :
1100mm | 1400mm
Brand Name :
DaYuan
MOQ :
1
Max. speed :
Up to 400 m/min
Place of Origin :
CHINA
Total power :
9kw | 11kw
Description

High-Capacity Roll Paper Slitter and Rewinding Machine FQBG-1100 & FQBG-1400

Product Overview

The FQBG-1100 slitting machine is a high-performance system utilizing gravity surface coiling technology, featuring precise cutting, robust construction, high winding speeds, and large diameter capacity. This advanced slitting machine incorporates shaftless uncoiling mechanism, automatic tension system, automatic web-guide system, motor-driven winding system, edge material winding device, and hydraulic unloading mechanism for optimal efficiency and operational convenience.
The FQBG-1100 is suitable for paper manufacturers processing base paper, as well as printing and packaging enterprises for roll paper subsection operations.
Compatible Materials: 30-300 GSM kraft paper, paper cups, and various scroll papers.
High-Capacity Roll Paper Slitter and Rewinding Machine with 400 m/min Speed

Technical Specifications

Machine Model No. FQBG-1100 FQBG-1400
Max. width of the roller paper 1100mm 1400mm
Max. diameter of the roller paper 1500mm 1500mm
Max. rewinding diameter 1200mm 1200mm
Max. speed Up to 400 m/min Up to 400 m/min
Slitting Accuracy ± 0.4mm ± 0.4mm
Voltage 380v/50Hz 380v/50Hz
Total power 9kw 11kw
The size of the machine 5.5m × 2.1m × 1.8m 5.5m × 2.4m × 1.8m
The weight of the machine 3T 3.5T

Detailed Photos

High-Capacity Roll Paper Slitter and Rewinding Machine with 400 m/min Speed High-Capacity Roll Paper Slitter and Rewinding Machine with 400 m/min Speed High-Capacity Roll Paper Slitter and Rewinding Machine with 400 m/min Speed High-Capacity Roll Paper Slitter and Rewinding Machine with 400 m/min Speed

Packaging & Shipping

Packaging The normal package is wooden box (Size: L×W×H). We will pack according to customer's special request. If exporting to European countries, the wooden box will be fumigated.
Packaging Dimension We will confirm and send you before booking or shipping
Shipping By Sea, or as arranged

Company Profile

Dayuan Industrial Co. Ltd is a professional manufacturer of eco-friendly paper processing machines, following the enterprise development mission "Create Value for Customers". Founded in 1995, the company is located in Zhongshan, Guangdong.
In the early 1990s, snack box production relied heavily on manual operation or expensive imported machines from Europe and America. Dayuan entered this industry to address challenges including poor sanitation conditions, inconsistent product quality, low efficiency, and high service costs.
With over 20 years of exploration and development, Dayuan's four series of self-innovative products (Ice Cream Paper Cone Machine, Carton Erecting Machine, Paper Cone Cup Machine, and Punching Machine) rank first in the domestic market. The products have exported to more than 70 countries and are favorably reviewed by domestic and international customers.
High-Capacity Roll Paper Slitter and Rewinding Machine with 400 m/min Speed High-Capacity Roll Paper Slitter and Rewinding Machine with 400 m/min Speed High-Capacity Roll Paper Slitter and Rewinding Machine with 400 m/min Speed High-Capacity Roll Paper Slitter and Rewinding Machine with 400 m/min Speed High-Capacity Roll Paper Slitter and Rewinding Machine with 400 m/min Speed High-Capacity Roll Paper Slitter and Rewinding Machine with 400 m/min Speed High-Capacity Roll Paper Slitter and Rewinding Machine with 400 m/min Speed

Frequently Asked Questions

Are you a factory or trading company?
We are a factory with more than 20 years of exploration and development. You are welcome to visit our factory anytime for machine demonstrations.
What certificate do you have?
We have ISO9001, SGS and CE certificates.
How does your factory do regarding quality control?
All products undergo 100% inspection before shipment, including 72 hours of continuous running to confirm no problems.
Can you design according to our voltage requirements?
Yes, we can provide OEM service to meet your specific requirements.
What's the main market of your company?
We serve customers all over the world.
What is your delivery time?
Normally, 45 days after order confirmation.
Do you offer wear-out spare parts?
Yes, we provide a one-year guarantee for our high-quality machines and offer one year of wear-out spare parts for free. If machines experience issues within one year, we provide phone support and, if necessary, send engineers to resolve problems on-site.
What payment terms do you accept?
Usually T/T 30% deposit, 70% balance before shipment.
