Roll Paper Slitter And Rewinder Introduction:

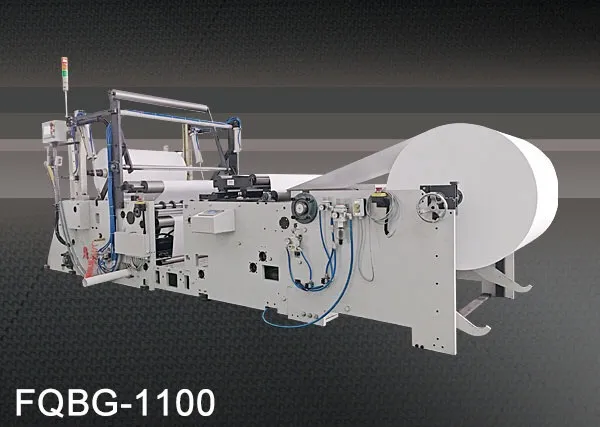

FQBG - 1100 slitting machine is a high-performance machine that rely on its own gravity surface coiling, with neat cutting and burliness, winding speed and large diameter, etc. The slitting machine is equipped with shaftless uncoiling mechanism, automatic tension system, automatic web-guide system, automatic slitting surface motor winding system, wind edge material device and hydraulic unloading mechanism. It is convenient operation and high efficiency.

FQBG - 1100 slitting machine is suitable for paper manufacturer slitting base paper, also suitable for printing and packaging enterprises slitting roll paper subsection.

Materials: 30-300 GSM kraft paper, paper cups and other scroll paper.
High-Capacity Roll Paper Slitter and Rewinding Machine Fqbg-1100&Fqbg-1400


Specification

Machine Technical Specification:

Machine Model No. FQBG-1100 FQBG-1400

Max. width of the roller paper

1100mm

 1400mm

Max.diameter of the roller paper

1500mm

 1500mm

Max.rewinding dieameter

1200mm

 1200mm

Max.speed

Up to 400 m/min

 Up to 400 m/min

Slitting Accuracy

± 0.4mm

 ± 0.4mm

Voltage

380v/50Hz

 380v/50Hz

Total power

9kw

 11kw

The size of the machine

5.5m*2.1m*1.8m

 5.5m*2.4m*1.8m

The weight of the machine

3T

 3.5T

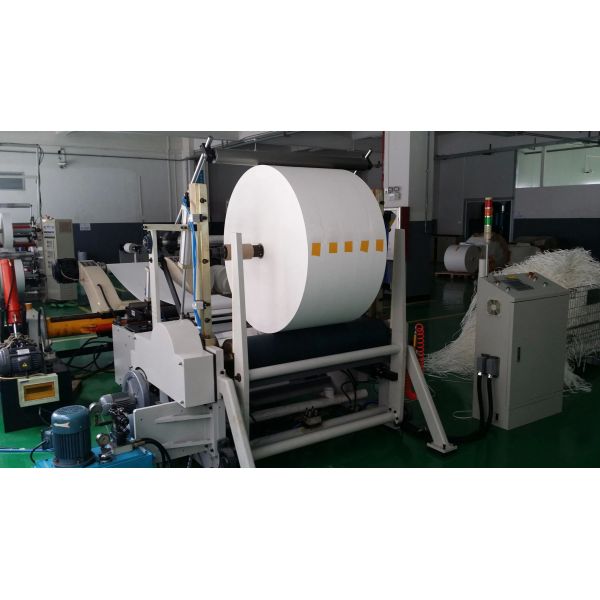

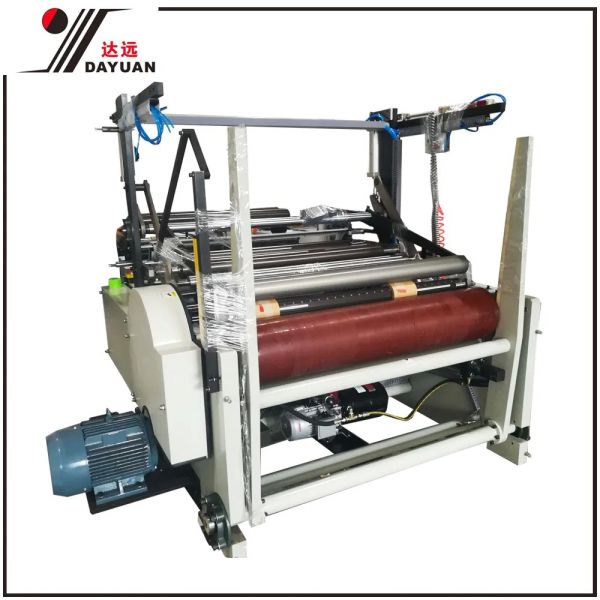

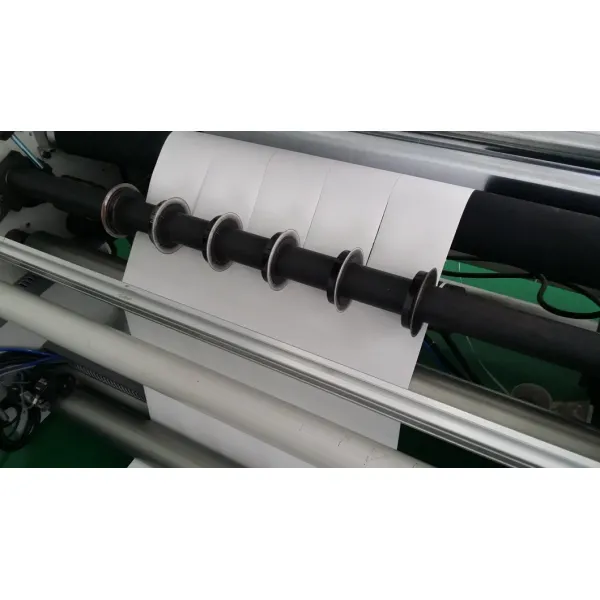

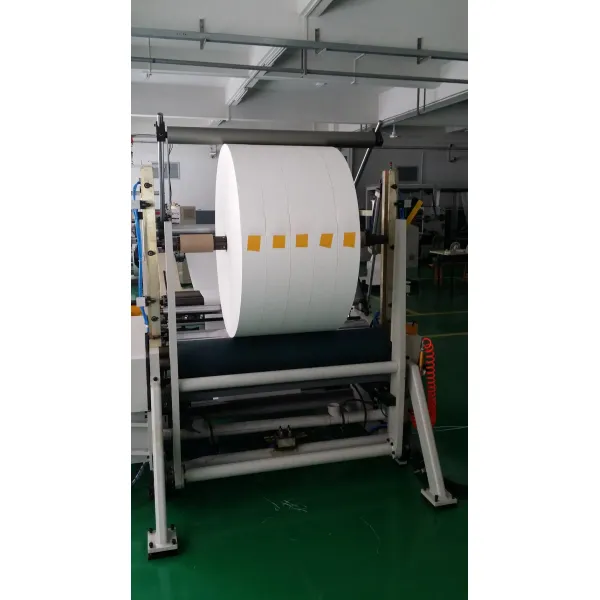

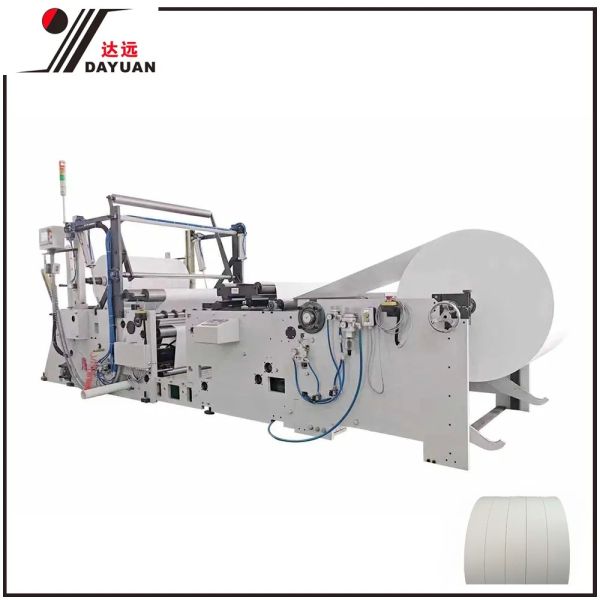

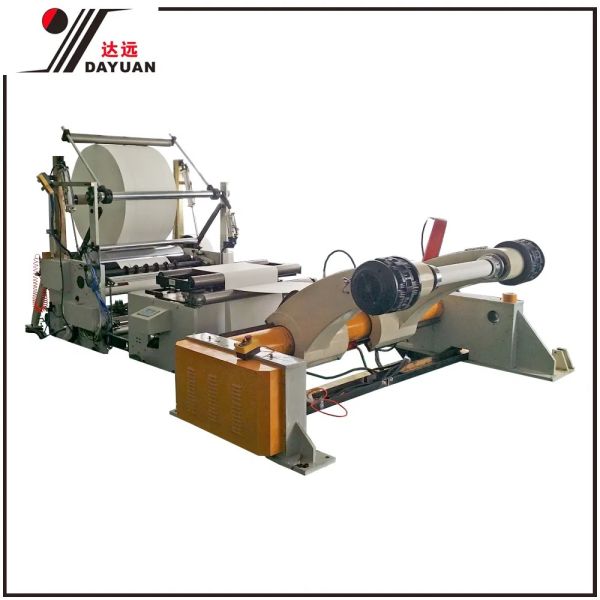

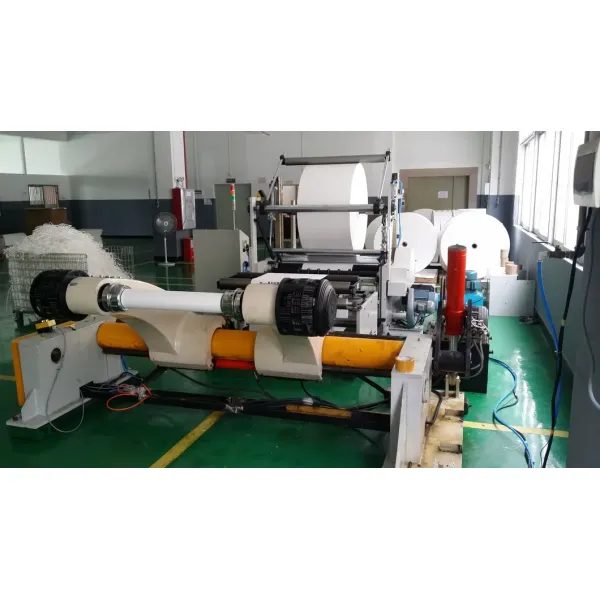

Detailed Photos
High-Capacity Roll Paper Slitter and Rewinding Machine Fqbg-1100&Fqbg-1400
High-Capacity Roll Paper Slitter and Rewinding Machine Fqbg-1100&Fqbg-1400

High-Capacity Roll Paper Slitter and Rewinding Machine Fqbg-1100&Fqbg-1400
High-Capacity Roll Paper Slitter and Rewinding Machine Fqbg-1100&Fqbg-1400

Company Profile

Packaging And Shipping:

Packaging The normal package is wooden box(Size: L*W*H). We will pack it according to customer's special request.If export to Europe countries, the wooden box will be fumigated.
Packaging Dimension We will confirm and send you before booking or shipping
Shipping By Sea, or as arranged



(Dayuan Industrial Co. Ltd) Company Develop:
a professional manufacturer of eco-friendly paper processing machines, following the enterprise development mission" Create Value for Customers".Founded in 1995, the company is located at Zhongshan, Guangdong, the hometown of Sun Yat Sen.

At the beginning of 1990s, the production of snack boxes(such as ice cream paper cone, hamburger box, etc) mainly relies on manual operation or machines imported from European and American countries. The poor sanitation condition and product consistency, low efficiency, expensive imported machines, long delivery period and high service cost all restricts the development of domestic paper production enterprises. With rapid development of Chinese national industry, Dayuan determinedly enters this completely new industry.

With more than 20'years exploration and development, the sales volume of four series self-innovative products(Ice Cream Paper Cone Machine, Carton Erecting Machine,Paper Cone Cup Machine and Punching Machine) rank first in the domestic market, the products have also exported to more than 70 countries and are favorably reviewed by domestic and overseas customers.

High-Capacity Roll Paper Slitter and Rewinding Machine Fqbg-1100&Fqbg-1400High-Capacity Roll Paper Slitter and Rewinding Machine Fqbg-1100&Fqbg-1400High-Capacity Roll Paper Slitter and Rewinding Machine Fqbg-1100&Fqbg-1400High-Capacity Roll Paper Slitter and Rewinding Machine Fqbg-1100&Fqbg-1400High-Capacity Roll Paper Slitter and Rewinding Machine Fqbg-1100&Fqbg-1400High-Capacity Roll Paper Slitter and Rewinding Machine Fqbg-1100&Fqbg-1400High-Capacity Roll Paper Slitter and Rewinding Machine Fqbg-1100&Fqbg-1400

FAQ

1. Q: Are you a factory or trading company?

A: We are a factory,with more than 20'years exploration and development.You are welcome to visit our factory anytime for the machines' demo.

2. Q: What certificate do you have?
A: We have ISO9001, SGS and CE certificate.

3. Q: How dose your factory do regarding quality control?
A: All the products will be 100% checked before the shipment.72 hours running without stop to confirm no problem.

4. Q: The voltage,if you can design according to our request?
A: Yes,we can provide OEM service.

5. Q: What's the main market of your company?
A: All over the world.

6. Q: What is your delivery time?
A: Normally, 45 days after order confirmed.

7. Q:If we buy your machines, can you offer us wear-out spare pats?
A: Yes,We provide our high quality machine one year guarantee,and we will also offer you one year wear-out spare parts for free. Once your machines broken or doesn't work within one year and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.

8. Q: What's the payment terms you can accept ?
A: Usually T/T 30% deposit,70% balance before shipment.
