CC1200 Thick Cardboard Paper punching machine Heavy-Duty Thick Cardboard · Wide-Format Multi-Application Die Cutting
CC1200 Thick Cardboard Paper punching machine Heavy-Duty Thick Cardboard · Wide-Format Multi-Application Die Cutting
CC1200 Thick Cardboard Paper punching machine Heavy-Duty Thick Cardboard · Wide-Format Multi-Application Die Cutting
CC1200 Thick Cardboard Paper punching machine Heavy-Duty Thick Cardboard · Wide-Format Multi-Application Die Cutting
CC1200 Thick Cardboard Paper punching machine Heavy-Duty Thick Cardboard · Wide-Format Multi-Application Die Cutting
CC1200 Thick Cardboard Paper punching machine Heavy-Duty Thick Cardboard · Wide-Format Multi-Application Die Cutting
CC1200 Thick Cardboard Paper punching machine Heavy-Duty Thick Cardboard · Wide-Format Multi-Application Die Cutting
CC1200 Thick Cardboard Paper punching machine Heavy-Duty Thick Cardboard · Wide-Format Multi-Application Die Cutting
CC1200 Thick Cardboard Paper punching machine Heavy-Duty Thick Cardboard · Wide-Format Multi-Application Die Cutting
CC1200 Thick Cardboard Paper punching machine Heavy-Duty Thick Cardboard · Wide-Format Multi-Application Die Cutting
CC1200 Thick Cardboard Paper punching machine Heavy-Duty Thick Cardboard · Wide-Format Multi-Application Die Cutting
CC1200 Thick Cardboard Paper punching machine Heavy-Duty Thick Cardboard · Wide-Format Multi-Application Die Cutting
Specifications
Die Cutting Accuracy :
±0.25 mm (standard)
Certification :
CE
Material Range :
Thick paperboard (250-600+ gsm), corrugated board (E/B-flute), laminated boards
Power Supply :
380V / 50Hz, 3P+PE
Maximum Roll Width :
~1200 mm (wide-format)
Place of Origin :
CHINA
Maximum Production Speed :
380 strokes/min
Brand Name :
DaYuan
Maximum Roll Diameter :
~1200-1500 mm
MOQ :
1
Description

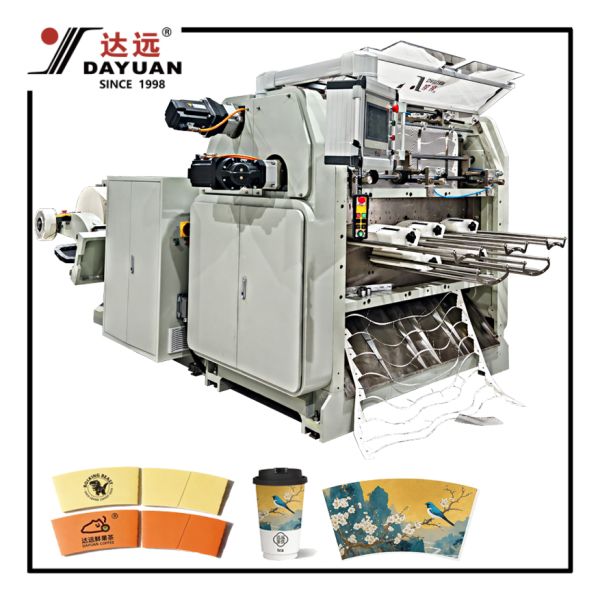

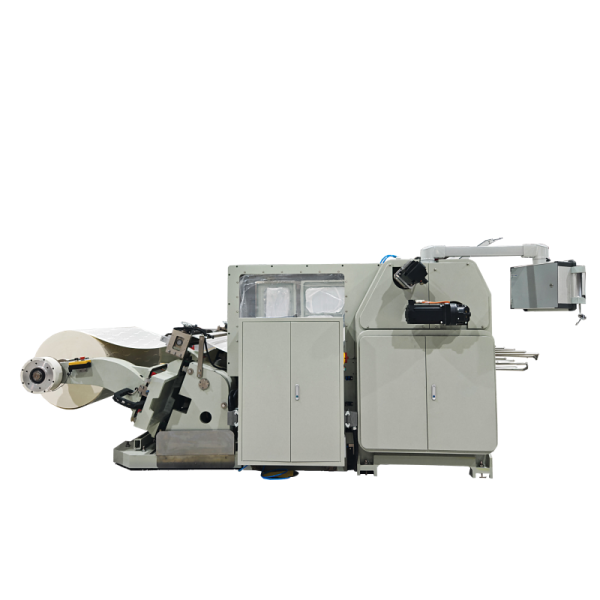

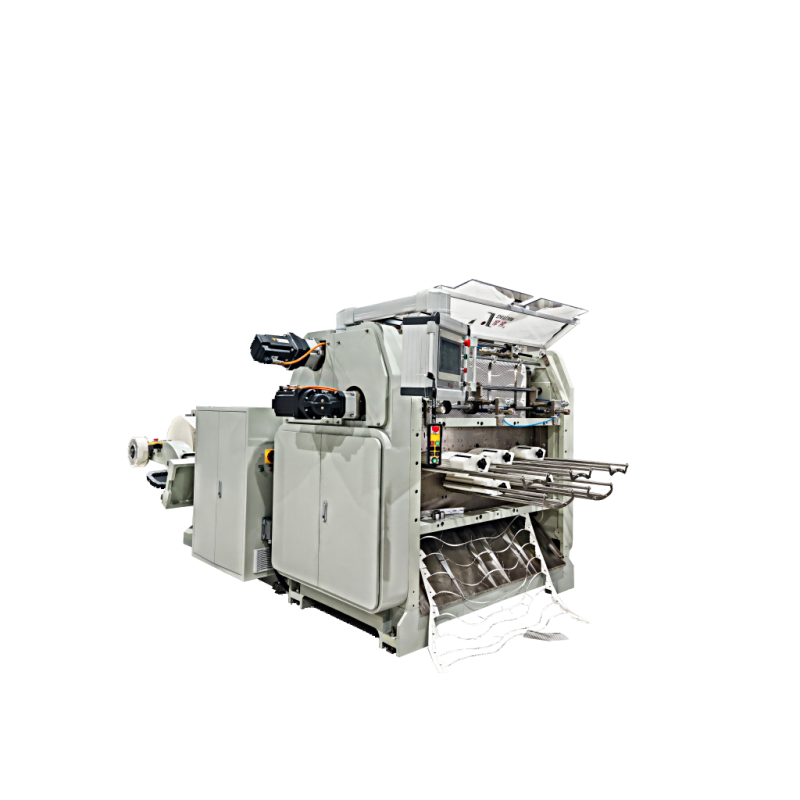

CC1200 Thick Cardboard Paper Punching Machine

Heavy-Duty Thick Cardboard · Wide-Format Multi-Application Die Cutting
Automatic Die Cutting Machine CC1200
380 Strokes/Min · Heavy-Duty Thick Cardboard · Wide-Format Multi-Application Die Cutting

Product Overview

The CC1200 is a heavy-duty, wide-format automatic die cutting machine engineered for high-speed converting of thick cardboard and heavy paperboard, manufactured by Dayuan Intelligent Manufacturing — a company with 28 years of dedicated expertise in paper packaging equipment. CE certified and exported to over 80 countries worldwide, the CC1200 is purpose-built for demanding die cutting applications requiring both wide-format capability and heavy-material processing power.
With a maximum production speed of 380 strokes per minute and a wide-format die cutting area optimized for thick cardboard, the CC1200 delivers exceptional versatility across a broad spectrum of applications — from heavy food service containers and corrugated packaging to industrial paperboard products and premium rigid boxes. Unlike lightweight die cutters that struggle with thick materials, the CC1200's reinforced structure and powerful drive system handle heavy cardboards with ease, making it the ideal solution for manufacturers and contract converters working with diverse, demanding substrate ranges.
CC1200 Thick Cardboard Paper punching machine Heavy-Duty Thick Cardboard · Wide-Format Multi-Application Die Cutting CC1200 Thick Cardboard Paper punching machine Heavy-Duty Thick Cardboard · Wide-Format Multi-Application Die Cutting

Core Advantages

1. Exceptional Application Versatility — One Machine, Diverse Heavy-Material Applications

The defining advantage of the CC1200 is its ability to serve a broad spectrum of die cutting applications involving thick and heavy materials. While many die cutters are limited to thin papers and light cardstocks, the CC1200's heavy-duty architecture opens up a wide range of applications that lighter machines simply cannot handle:
  • Heavy food service packaging: Thick paperboard meal trays, takeaway containers, burger boxes, french fry holders, food bucket blanks, and heavy-duty carryout boxes
  • Corrugated & fluted materials: E-flute and B-flute corrugated die cutting, corrugated inserts, corrugated tray blanks, and corrugated shipping container components
  • Rigid & setup box blanks: Thick greyboard die cutting for rigid gift boxes, shoe boxes, consumer electronics packaging, and luxury product containers
  • Industrial paperboard products: Paper angle boards, edge protectors, paper pallets, honeycomb board die cutting, and heavy-duty industrial paper components
  • Premium packaging: Thick coated board for cosmetics packaging, confectionery boxes, spirits packaging, and high-end retail boxes
  • Food & beverage carrier packaging: Cup carriers, bottle carriers, multi-pack holders, and heavy-duty beverage packaging
  • Display & POS materials: Thick board display stands, shelf talkers, hanging tags, and point-of-sale structural components
This versatility means one CC1200 can handle applications that would otherwise require multiple specialized machines, reducing capital investment, floor space requirements, and operator training costs.
CC1200 Thick Cardboard Paper punching machine Heavy-Duty Thick Cardboard · Wide-Format Multi-Application Die Cutting

2. Heavy-Duty Construction for Thick Cardboard

The CC1200 is built from the ground up for heavy-material processing:
  • Reinforced frame structure: Heavy-gauge steel frame engineered for vibration-free operation even when die cutting thick, rigid materials at full speed
  • High-force die cutting system: Powerful punching mechanism delivers consistent, high-pressure die cutting through thick cardboards and corrugated materials without incomplete cuts or die wear
  • Wide-format capability: Optimized for wide web processing, maximizing material utilization and production efficiency for large-format blanks
  • Durable components: Heavy-duty bearings, reinforced linkages, and wear-resistant construction ensure long-term reliability in demanding production environments

3. High-Speed 380 Strokes/Min Production

Despite its heavy-duty capability, the CC1200 does not compromise on speed. With a maximum production speed of 380 strokes per minute, it delivers high-volume output that rivals much lighter machines — while handling materials those lighter machines cannot process.

4. Full-Link Intelligent Control System

The CC1200 integrates core intelligent functions ensuring reliable performance across diverse materials:

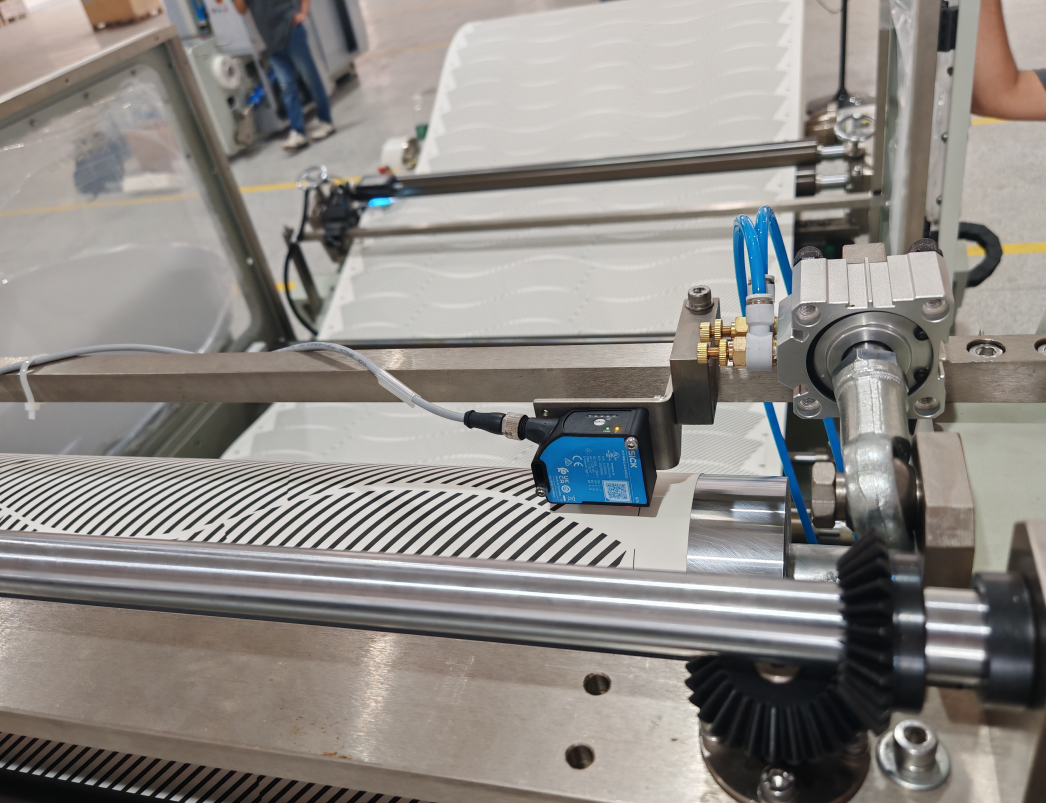

  • Automatic Web Guiding System: Real-time detection and correction of web position deviation — essential when running heavy, stiff materials that are prone to misalignment
  • Intelligent Register Tracking System: Accurately identifies printing color marks for precise die cut registration, regardless of material thickness or design complexity
  • High-Precision Tension Control System: Closed-loop tension control adapted for heavy materials, preventing stretching, wrinkling, and mis-feeding — critical when switching between different board weights
  • Finished Product Anti-Curvature System: Shaping and anti-curvature treatment ensures flat, stackable finished blanks — especially important for thick cardboards that tend to retain curl
CC1200 Thick Cardboard Paper punching machine Heavy-Duty Thick Cardboard · Wide-Format Multi-Application Die Cutting

5. Wide Material Compatibility

The CC1200 handles an extensive range of heavy and medium-weight materials:
  • Thick paperboard: 250-600 gsm and beyond, including greyboard, ivory board, coated board, and kraft board
  • Corrugated board: E-flute, B-flute, and thin corrugated materials
  • Laminated & composite boards: PE-coated board, foil-laminated board, and multi-layer composite materials
  • Specialty heavy papers: Metallized board, textured board, and other premium heavy substrates
CC1200 Thick Cardboard Paper punching machine Heavy-Duty Thick Cardboard · Wide-Format Multi-Application Die Cutting

6. Quick Mold Change & Compact Footprint

With efficient mold change capability and a compact, space-efficient layout, the CC1200 enables flexible production scheduling for multi-product factories.

Technical Specifications

Item CC1200 Specification
Machine Type Heavy-duty automatic die cutting machine (thick cardboard optimized)
Maximum Production Speed 380 strokes/min
Die Cutting Accuracy ±0.25 mm (standard)
Maximum Roll Width ~1200 mm (wide-format)
Maximum Die Cutting Area Wide-format optimized for large blanks
Maximum Roll Diameter ~1200-1500 mm
Material Range Thick paperboard (250-600+ gsm), corrugated board (E/B-flute), laminated boards
Control System Servo control with intelligent web guiding & register tracking
Web Guiding Automatic
Register Tracking Intelligent photoelectric
Tension Control High-precision closed-loop
Anti-Curvature Finished product shaping system
Power Supply 380V / 50Hz, 3P+PE
Certification EU CE Certification
Average Service Life More than 15 years
Note: Specific parameters may vary by configuration. Please contact our sales team for detailed technical specifications tailored to your application.

Application Scenarios — Detailed
