E-SC Cable Grip Field Installable Fiber Optic Adapter SC APC Fast Connector
E-SC Cable Grip Field Installable Fiber Optic Adapter SC APC Fast Connector
E-SC Cable Grip Field Installable Fiber Optic Adapter SC APC Fast Connector
E-SC Cable Grip Field Installable Fiber Optic Adapter SC APC Fast Connector
E-SC Cable Grip Field Installable Fiber Optic Adapter SC APC Fast Connector
E-SC Cable Grip Field Installable Fiber Optic Adapter SC APC Fast Connector
E-SC Cable Grip Field Installable Fiber Optic Adapter SC APC Fast Connector
E-SC Cable Grip Field Installable Fiber Optic Adapter SC APC Fast Connector
E-SC Cable Grip Field Installable Fiber Optic Adapter SC APC Fast Connector
E-SC Cable Grip Field Installable Fiber Optic Adapter SC APC Fast Connector
Specifications
Brand Name :
Yuhui
Model Number :
E-SC Cable Grip Field Installable Fiber Optic Adapter SC APC Fast Connector
Certification :
ISO9001,UL,SGS,RHOS
Place of Origin :
China
MOQ :
5000 piece
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20000 piece per day
Delivery Time :
10 days
Packaging Details :
10piece per bag
application :
E-SC Cable Grip Field Installable Fiber Optic Adapter SC APC Fast Connector
certificate :
ISO,UL,ROHS,SGS
material :
see details
used life :
30 years
size :
customers need
Description

E-SC Cable Grip Field Installable Fiber Optic Adapter SC APC Fast Connector

Product Details:

Place of Origin: China
Brand Name: YUHUI
Certification: ISO,RHOS,UL,CE
Model Number: YH-FO-ESC

Payment & Shipping Terms:

Minimum Order Quantity: 5000pieces
Price: Negotiation
Packaging Details: 10piece/bag
Delivery Time: 10days
Payment Terms: TT,LC,West Union, D/A
Supply Ability: 5000000pieces/month

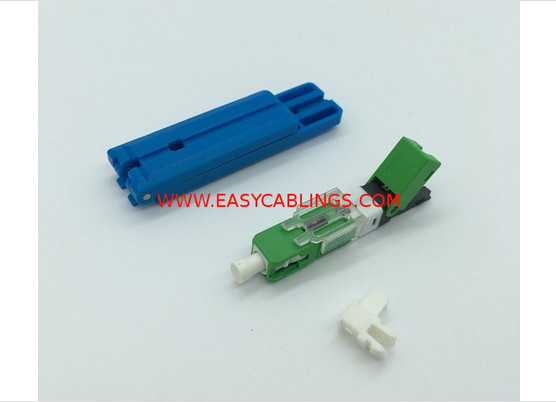

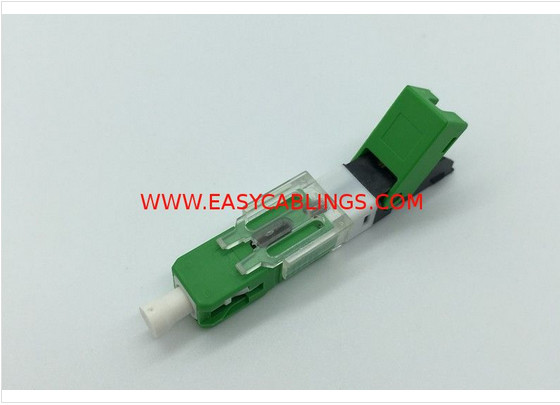

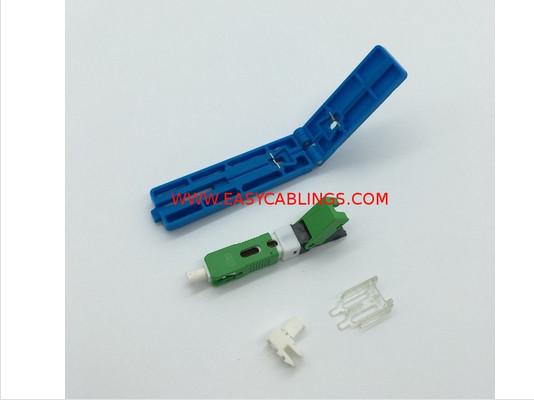

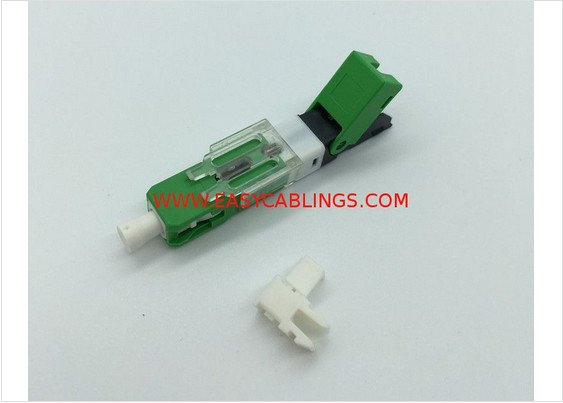

Name: SC/APC Fast Connector Fiber Type: SM
PC: Housing Color Blue APC: Housing Color Green
Polishing: APC Or PC Applicable Cable: Indoor Cable Or Drop Cable

Mechanical Field-Mountable Fiber Optic SC APC Fast Connector Buckle Device For Narrow Space

Quick Detail:

1. Connector Type: fast connector SC, RoHS compliant , 100% Optical Test

2. Size:49.5*7*6mm

3. Mechanical Field-Mountable Fiber Optic Connector is worked without fusion splicing machine

4. Used widely in ONU

Description:

Easy operating, The connector can be directly used in ONU, also with fasten strength more than 5 kg, it is widely used in FTTH project of network revolution. It also reduce the use of sockets and adapters, save cost of project.With 86 standard socket and adapter, the connector makes connection between drop cable and patch cord. The 86 standard socket provides complete protection with its unique design.Applicable to connection with field mountable indoor cable, pigtail, patch cord and transformation of patch cord in data room and directly used in specific ONU.

Operation:

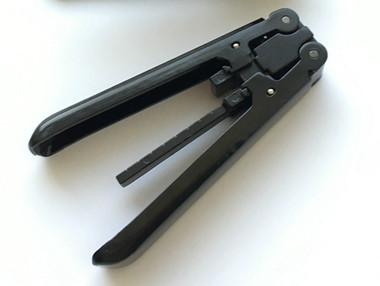

Step 1. Stripper the drop wire sheath with professinal fiber optic stripper.You can Use our tool Drop wire sleeve stripping vise YH-1609.

Step 2. Clean the fiber core with cleaning alcohol and set prepared cable onto insertion Guide,Cut with fiber cleaver

Step 3. Insert fiber/cable until souds "Click"

Step 4. Remove the squeeze wedge plate

Applicable to connection with field mountable indoor cable, pigtail, patch cord and transformation of patch cord in data room and directly used in specific ONU.

Applications:

High speed Enterprise servers

Multiplexers,switches and routers

Optical Access and ATM Networks Equipment

Optical Transport and Telecommunications,FTTH,FTTD,FTTX

Switching Equipment

Specification

Cable Scope 3.01x 2.0 mm Bow-type Drop Cable
Fiber Diameter 125μm ( 652 & 657 )
Coating Diameter 250μm
Mode SM
Operation Time about 15s(exclude fiber presetting)
Insertion Loss ≤ 0.3dB(1310nm & 1550nm)
Return Loss ≤ -55dB
Success Rate >98%
Reusable Times >10 times
Tighten Strength of Naked Fiber >5 N
Tensile Strength >50 N
Teperature -40～+85℃
On-line Tensile Strength Test (20 N) △ IL ≤ 0.3dB
Mechanical Durability(500 times) △ IL ≤ 0.3dB
Drop Test(4m concrete floor, once each direction, three times total) △ IL ≤ 0.3dB

Tag:

optical fiber adapter,

fiber optic network adapter

E-SC Cable Grip Field Installable Fiber Optic Adapter SC APC Fast ConnectorE-SC Cable Grip Field Installable Fiber Optic Adapter SC APC Fast ConnectorE-SC Cable Grip Field Installable Fiber Optic Adapter SC APC Fast ConnectorE-SC Cable Grip Field Installable Fiber Optic Adapter SC APC Fast ConnectorE-SC Cable Grip Field Installable Fiber Optic Adapter SC APC Fast Connector
