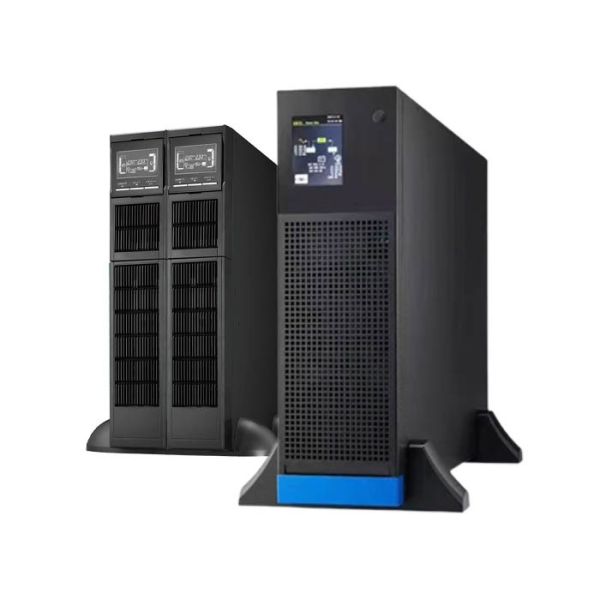

Bespoke Double Conversion Online UPS System Uninterrupted Data Center Backup Power
Bespoke Double Conversion Online UPS System Uninterrupted Data Center Backup Power
Bespoke Double Conversion Online UPS System Uninterrupted Data Center Backup Power
Bespoke Double Conversion Online UPS System Uninterrupted Data Center Backup Power
Specifications
Brand Name :
Soeteck
Model Number :
SY-RT
Certification :
CE, ISO, UL
Place of Origin :
China
MOQ :
1
Price :
To Be Negotiated
Payment Terms :
D/A
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
2-4W
Packaging Details :
Cartons, Wooden boxes
System Capacity :
10-60kVA
Dimensions :
Varies by model, typically 680*438*133 mm
Waveform :
Sine wave or Simulated sine wave
Backup Time :
5 to 60 minutes depending on load
Type :
Power Backup Device
Weight :
27 to 45 kg
Battery Type :
Sealed Lead Acid (SLA) or Lithium-ion
Output Voltage :
3*360-415 VAC
Communication Ports :
USB, RS-232, SNMP
Operating Temperature :
0°C to 40°C
Input Voltage :
190-520 VAC
Noise Level :
Less than 62 dB
Description

Tailored for large-scale enterprise data centers, industrial control systems, and core network backbone facilities, the Double Conversion High-frequency UPS addresses the stringent power stability requirements of high-load critical infrastructure. Boasting a high power factor, it maintains consistent rated output performance even under fluctuating input conditions, while its pure sine wave output acts as a robust barrier against power sags, surges, and interruptions—establishing itself as a core safeguard for scenarios where uninterrupted operation is non-negotiable.

Available in 10kVA, 20kVA, 30kVA, 40kVA, 50kVA, and 60kVA configurations, this UPS aligns precisely with the load demands of large-scale systems without excess capacity waste. Its flexible rack-tower dual-mount design seamlessly integrates into standard 19-inch server cabinets or dedicated equipment rooms, while its advanced high-frequency double-conversion architecture achieves up to 96% operational efficiency—cutting unnecessary energy consumption and lowering long-term operational costs. Compliant with strict international safety and performance standards, it delivers continuous backup power and multi-layered protection mechanisms to shield mission-critical devices from potential power hazards.


Product Family

Model No. System Capacity Module Power Input Voltage Output Voltage Efficiency Wiring
SYRT10kVA › 10kVA/10kW 10kVA × 1 190-520VAC (3-phase) at 50% load; 305-478VAC (3-phase) at 100% load 3 x 360/380/400/415 VAC (3PH N) 95.5% (AC mode); 98.5% (ECO mode); 94.5% (Battery mode) 3 phase in, 3 phase out
SYRT15kVA › 15kVA/15kW 15kVA × 1 190-520VAC (3-phase) at 50% load; 305-478VAC (3-phase) at 100% load 3 x 360/380/400/415 VAC (3PH N) 95.5% (AC mode); 98.5% (ECO mode); 94.5% (Battery mode) 3 phase in, 3 phase out
SYRT20kVA › 20kVA/20kW 20kVA × 1 190-520VAC (3-phase) at 50% load; 305-478VAC (3-phase) at 100% load 3 x 360/380/400/415 VAC (3PH N) 95.5% (AC mode); 98.5% (ECO mode); 94.5% (Battery mode) 3 phase in, 3 phase out
SYRT30kVA › 30kVA/30kW 30kVA × 1 190-520VAC (3-phase) at 50% load; 305-478VAC (3-phase) at 100% load 3 x 360/380/400/415 VAC (3PH N) 95.5% (AC mode); 98.5% (ECO mode); 94.5% (Battery mode) 3 phase in, 3 phase out
SYRT40kVA › 40kVA/40kW 40kVA × 1 190-520VAC (3-phase) at 50% load; 305-478VAC (3-phase) at 100% load 3 x 360/380/400/415 VAC (3PH N) 95.5% (AC mode); 98.5% (ECO mode); 94.5% (Battery mode) 3 phase in, 3 phase out
SYRT60kVA › 60kVA/60kW 60kVA × 1 190-520VAC (3-phase) at 50% load; 305-478VAC (3-phase) at 100% load 3 x 360/380/400/415 VAC (3PH N) 95.5% (AC mode); 98.5% (ECO mode); 94.5% (Battery mode) 3 phase in, 3 phase out

Product Features

Bespoke Double Conversion Online UPS System Uninterrupted Data Center Backup Power

3-Phase Input & Output with Balanced Load

Supports 3-phase input and output to adapt to large-scale industrial equipment and data center cluster demands, while its built-in load balancing function ensures stable power distribution across phases—avoiding single-phase overload risks and enhancing overall system reliability.


High-Efficiency Double-Conversion Topology

Adopts advanced high-frequency double-conversion architecture to reach up to 96% efficiency in normal operation, outperforming traditional UPS solutions. This reduces energy loss and cuts long-term operational costs for large-scale power systems.


Stable Pure Sine Wave Output

Delivers consistent pure sine wave output to shield high-power core devices (such as large servers, industrial controllers, and backbone network switches) from power disturbances. It also integrates multi-layered protection against surges, overloads, and overvoltages to extend connected equipment lifespan.


Intelligent Remote & Local Monitoring

Equips a high-definition local display for real-time tracking of load rate, battery health, and operating mode, while supporting remote monitoring via network interfaces. Graded sound and light alarms trigger for anomalies (low battery, overload, etc.), enabling timely maintenance and uninterrupted operation.

Bespoke Double Conversion Online UPS System Uninterrupted Data Center Backup Power

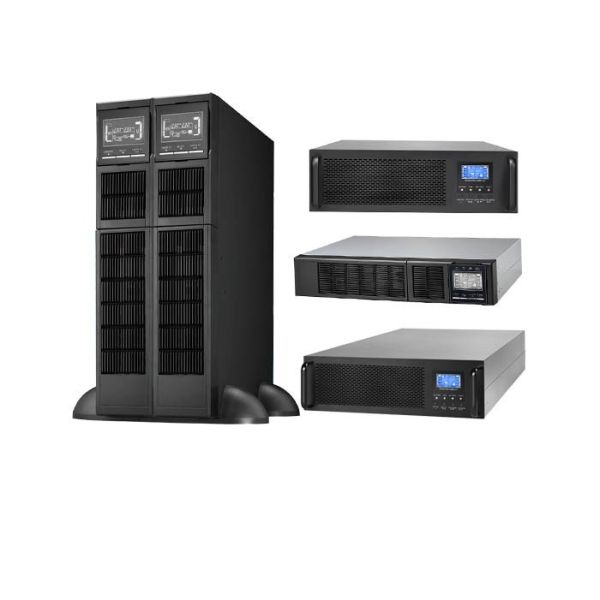

Featured Types of UPS Series


With diverse UPS series spanning industrial-grade resilience, highly scalable modularity, and smart space-efficient designs, Soeteck delivers fully personalized, industry-leading high-availability power solutions to safeguard all critical electronics with unwavering reliability.

Bespoke Double Conversion Online UPS System Uninterrupted Data Center Backup Power

1-60 kVA

Rack/Tower UPS

rack/tower convertible, space-saving, cost-effective, suitable for small-to-medium devices.

Bespoke Double Conversion Online UPS System Uninterrupted Data Center Backup Power

1-600 kVA

Industrial UPS

3-phase unbalance allowed, high overload, ideal for critical industrial & healthcare scenarios.

Bespoke Double Conversion Online UPS System Uninterrupted Data Center Backup Power

1-1200 kVA

Tower Online UPS

high-frequency, wide input range, high integration, fits small server rooms to large facilities.

Bespoke Double Conversion Online UPS System Uninterrupted Data Center Backup Power

20-1600 kVA

Modular Online UPS

hot-swappable modules, N+X redundancy, flexible expansion for dynamic load demands.

APPLICATIONS


Bespoke Double Conversion Online UPS System Uninterrupted Data Center Backup Power
Data Center & IDC
Bespoke Double Conversion Online UPS System Uninterrupted Data Center Backup Power
Medical & Healthcare
Bespoke Double Conversion Online UPS System Uninterrupted Data Center Backup Power
Industrial Automation
Bespoke Double Conversion Online UPS System Uninterrupted Data Center Backup Power
Telecommunications

FAQ


1. What benefit does hot-swappable battery bring to on-site maintenance?
Our product realizes battery replacement without power shutdown, eliminating maintenance downtime for mission-critical 3-phase loads.
2. Can the UPS realize battery maintenance without power interruption?
Yes,it supports hot-swappable batteries, allowing on-site battery replacement with zero system downtime for critical 3-phase applications.
3. Does the system have integrated EPO emergency power off function?
Yes,it is equipped with a dedicated EPO port for fast, safe power cutoff to meet on-site emergency safety management requirements.
