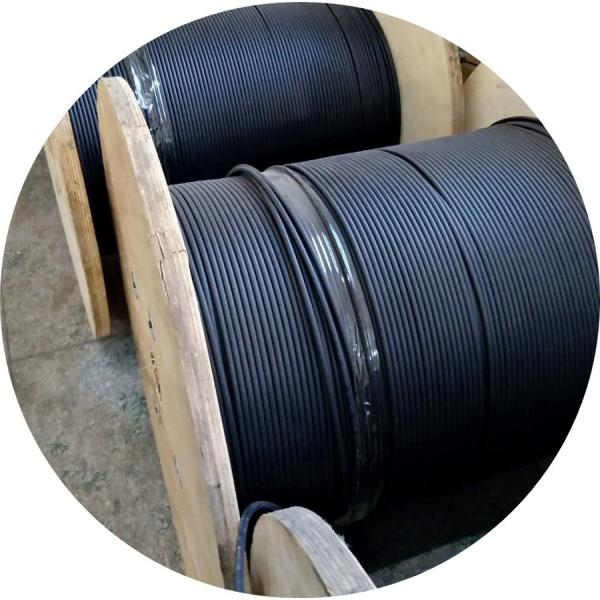

GYTS Outdoor Armored Stranded Long Distance Fiber Optic Cable For Telecommunication
GYTS Outdoor Armored Stranded Long Distance Fiber Optic Cable For Telecommunication
GYTS Outdoor Armored Stranded Long Distance Fiber Optic Cable For Telecommunication
GYTS Outdoor Armored Stranded Long Distance Fiber Optic Cable For Telecommunication
GYTS Outdoor Armored Stranded Long Distance Fiber Optic Cable For Telecommunication
GYTS Outdoor Armored Stranded Long Distance Fiber Optic Cable For Telecommunication
Specifications
MOQ :
No
Payment Terms :
T/T, Western Union
Place of Origin :
Shenzhen,China
Price :
contact us for the price
Model Number :
Fiber Optic Cable
Certification :
CE
Packaging Details :
Drum
Delivery Time :
10-15 days upon receipt of payment
Packing :
Wooden Drum
Product name :
GYTS fiber optical cable
Armour Material :
Corrugated Steel Tape
Fiber count :
2-144core
operation temperature :
--40°C~+70°C
Application :
Telecommunication Long distance communication and lan
Description

GYTS Outdoor Armored Stranded Fiber Optic Cable For Telecommunication

GYTS Outdoor Armored Stranded Long Distance Fiber Optic Cable For Telecommunication

Description

The fibers, 125μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.

Outdoor armored cable is a direct buried type that prevents itself from animal bite. The metal armoring between two jackets effectively prohibits rodent penetration. Outdoor armored cable can be divided into light armored and heavy armored types. The former has the protective plastic jacket with the same durability and longevity of a stainless steel cable with a lighter weight. The latter is wrapped in a wire circle to be applied for underwater regions that near shores and shoals.

Characteristics
· Good mechanical and temperature performance
· High strength looes tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Specially designed compact structure is good at preventing loose tubes from shrinking
· Crush resistance and flexibility
· PE sheath protects cable from ultraviolet radiation

· The following measures are taken to ensure the cable watertight:

- Steel wire used as the central strength member

- Loose tube filling compound

- 100% cable core filling

- PSP enhancing moisture-proof

Technical Parameters
Cable Type Fiber Count Tubes Fillers Cable Diameter mm Cable Weight kg/km Tensile Strength Crush Resistance Bending Radius
Long/Short Term Long/Short Term Static/ Dynamic
N N/100mm mm
GYTS-2~6 2~6 1 4 9.5 95 600/1500 300/1000 10D/20D
GYTS-8~12 8~12 2 3 9.5 95 600/1500 300/1000 10D/20D
GYTS-14~18 14~18 3 2 9.5 95 600/1500 300/1000 10D/20D
GYTS-20~24 20~24 4 1 9.5 95 600/1500 300/1000 10D/20D
GYTS-26~30 26~30 5 0 9.5 95 600/1500 300/1000 10D/20D
GYTS-32~36 32~36 6 0 9.5 95 1000/3000 300/1000 10D/20D
GYTS-38~48 38~48 4 1 10.5 141 1000/3000 300/1000 10D/20D
GYTS-50~60 50~60 5 0 10.5 141 1000/3000 300/1000 10D/20D
GYTS-62~72 62~72 6 0 12 159 1000/3000 300/1000 10D/20D
GYTS-74~84 74~84 7 1 13.6 209 1000/3000 300/1000 10D/20D
GYTS-86~96 86~96 8 0 13.6 209 1000/3000 300/1000 10D/20D
GYTS-98~108 98~108 9 1 15.4 232 1000/3000 300/1000 10D/20D
GYTS-110~120 110~120 10 0 15.4 232 1000/3000 300/1000 10D/20D
GYTS-122~132 122~132 11 1 17.2 280 1000/3000 300/1000 10D/20D
GYTS-134~144 134~144 12 0 17.2 280 1000/3000 300/1000 10D/20D
