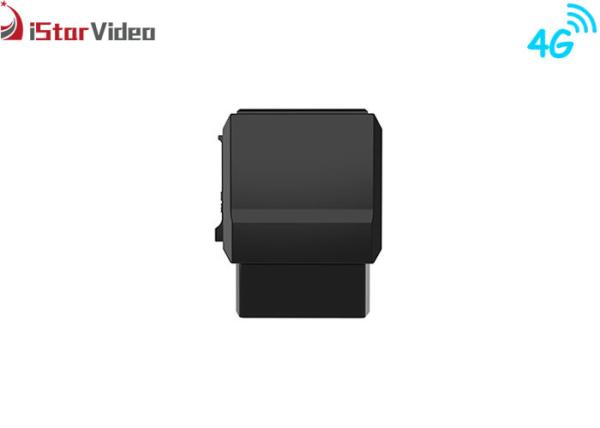

2G 3G 4G OBD GPS Tracker / Small Fleet GPS Tracking With Free Platform
2G 3G 4G OBD GPS Tracker / Small Fleet GPS Tracking With Free Platform
Specifications
Brand Name :
iStarVideo
Model Number :
iSV-GTX105(4G,OBD)
Certification :
CE
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100,000pcs per month
Delivery Time :
3-5 work days
Packaging Details :
Giftbox Size: 160*90*75mm
Product Type :
4G OBD GPS Tracker
Network :
4G
Function :
Location / Real time Tracking / With ACC to Detect
Use :
Automotive
Application :
Real-time Tracking
Track View :
PC, iOS / Android App, SMS Coordinate
Location Mode :
GPS+BDS+LBS 3Modes
Map :
Google Map
Geo-Fence Alarm :
Support
Over Speed Alarm :
Support
ACC Detection Function :
Support
Vibration Alarm :
Support
Built-in Battery :
180mAh / 3.7V
Input Voltage :
9-35V DC
Description

2G 3G 4G OBD Tracking Device / Small Fleet GPS Tracking With Free Platform

New Easy Install New Design Small 2G 3G 4G GPS Tracker OBD2 for Car with Free Platform

Main Feature: (4G OBD GPS Tracker)

* OBD standard interface.

* Built-in 180mAh/3.7V battery.
* Voltage: 9-35V DC

* Real-time vehicle tracking.

* Shock Alarm

* Low battery Alarm

* Over speed Alarm
* Work with any 16 pin OBD interface cars.
* Can locate and get the position of your vehicle remotely via GPRS.
* Support function of map location inquiry.
* No installation, no wiring harness, simply plugs into OBD port.

* Working model:support GPRS & SMS model


Functions: (4G OBD GPS Tracker)

Remote Audio Monitoring , Remote Power/Fuel OFF , SOS Alarm , ACC Engion Detection , Power OFF Alarm , Overspeed Alarm , Vibration Alarm , Move Alarm , ACC Illegal Engion Alarm , etc.

Specification: (4G OBD GPS Tracker)

Model iSV-GTX105(4G, OBD)
GSM Module QUECTEL EC20, ARM stm32
Communication Band LTE/4G
LTE-FDD: B1/B3/B5/B8, LTE-TDD: B34/B38/B39/B40/B41
GPRS Class12, TCP/ IP Build in GSM Module
GPS Chipset MT2503
Location Mode GPS+BDS+LBS 3Modes
GPS / GSM Antenna Built-in
GPS Channels 64~66
GPS Sensitivity (Tracking) -165dBm
Acquisition Sensitivity (Tracking) -148dBm
GPS Frequencies L1:1575.42±1.023MHz
BDS Frequencies B1:1561.098±2.046MHz
GPS Starting Time Hot start: < 2 Sec (Open Sky)
Cold start: < 30 Sec (Open Sky)
GPS Position Accuracy <10 Meters
GPS Velocity Accuracy 0.1 m/s
Voice Monitoring Range 5 Meters
Backup Battery 180mAh / 3.7V
Data Transmit TCP, SMS
Over Speed Alarm Support
Low Power Alarm Support
Movement Detection Support
Kilometer Report Support
ACC Detection Function Support
Oil Cut OFF Support
Vibration Alarm Support
History Playback Support 1 Months
UART-TTL 3.3V UART-TTL 1 channel
LED Indicators 2 LED Indicator: GPS-blue / GSM-red
Input Voltage 9-35V DC
Operating Temperature -20°C - 70°C
Operating Humidity 5% - 95% Non-condensing
Weight 54g
Dimension(L*W*H) 59 * 45 * 22mm
