24V 130A Brushed DC Motor Controller For Electric Forklifts,Floor-Cleaning Vehicles,And More
24V 130A Brushed DC Motor Controller For Electric Forklifts,Floor-Cleaning Vehicles,And More
24V 130A Brushed DC Motor Controller For Electric Forklifts,Floor-Cleaning Vehicles,And More
24V 130A Brushed DC Motor Controller For Electric Forklifts,Floor-Cleaning Vehicles,And More
24V 130A Brushed DC Motor Controller For Electric Forklifts,Floor-Cleaning Vehicles,And More
24V 130A Brushed DC Motor Controller For Electric Forklifts,Floor-Cleaning Vehicles,And More
24V 130A Brushed DC Motor Controller For Electric Forklifts,Floor-Cleaning Vehicles,And More
24V 130A Brushed DC Motor Controller For Electric Forklifts,Floor-Cleaning Vehicles,And More
Specifications
Brand Name :
DALA
Model Number :
D3P
Place of Origin :
Chengdu,China
MOQ :
Negotiable
Price :
Negotiable
Packaging Details :
standard packing, as customer demands
Delivery Time :
7 - 15 working Days
Payment Terms :
L/C,T/T,etc.
Motor type :
Brushed DC Motor (Bi-Di)
Function :
Traction
Appolication :
electric forklifts,floor-cleaning vehicles,and more
Nominal Voltage Range (VDC) :
24V
Maximum Current :
130A
Size :
131*72*41mm
Description

Bldc Motor Controller D3P 24V 130A For Electric Forklifts,Floor-Cleaning Vehicles

Product Description:

The D3P controller series are brushed DC motor controllers with higher specification than D2P and applies to larger battery powered industrial vehicles. It supports serial communication port only but has a counterpart that supports CAN communication protocols. With a highly programmable software, the product could applied to almost any low power DC motor controlling scenarios without much limitation.

Features:

Full Featured

  1. 5 x Input Switch, 2 x NPN Output, Voltage Throttle.
  2. Build-in regenerate break to recycle energy and charge to battery when motor stop working.
  3. Advanced motor control algorithm provides smooth starting on a ramp.

Safety & Reliability

  1. It has advanced MOSFET power section which enables smooth and seamless motor controlling performance.
  2. The sealing and heat dissipation technologies are unique and self-developed by DALA.
  3. Powerful Fault detection mechanisms are adopted such as the over/under voltage protection, overcurrent and overheat preventions etc.
  4. Follow industrial practices plus innovative design and technologies for short circuit protection, brake control interface with hardware watchdog.

Specifications

Content Parameters
Model D3P
Nominal Input Voltage 24
20s output Current Rating (A) 130A
2 Min output Current Rating (A) 70A
60 Min output Current Rating (A) 45A
Communication Serial
Operating Temperature -30℃~55℃
Storage Temperature -40℃~85℃
IP Rating IP65
Motor Type Brushed DC Motor (Bi-Di)

Applications

24V 130A Brushed DC Motor Controller For Electric Forklifts,Floor-Cleaning Vehicles,And More

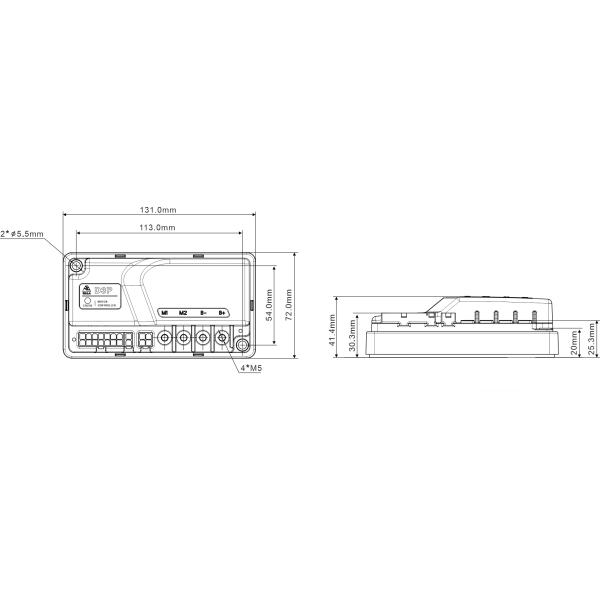

Dimensions

24V 130A Brushed DC Motor Controller For Electric Forklifts,Floor-Cleaning Vehicles,And More
