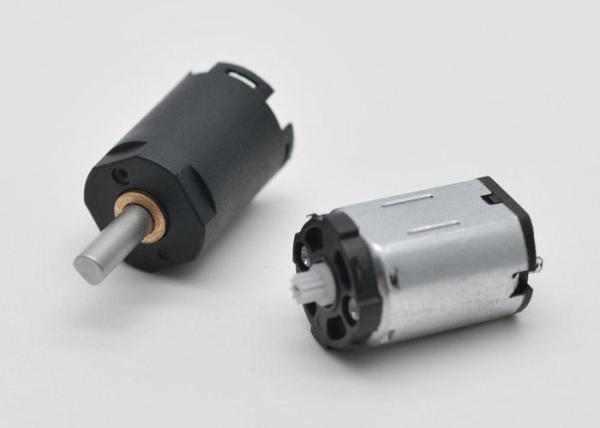

4.2v 8mm DC Gear Motor Small Planetary Gearbox For Home Appliance
4.2v 8mm DC Gear Motor Small Planetary Gearbox For Home Appliance
Specifications
Place of Origin :
China
Brand Name :
DAITTO
Certification :
ISO,CE
Model Number :
DA008008-69
MOQ :
500
Description
Type: DC Brush Motor Rated Load Speed: 162rpm
Rated Load Current: 160mA No Load Speed: 207rpm
No Load Current: 95mA Gear Ration: 69:1
Torque: 44g.cm Max Rated Torque Of Gear Box: 200g.cm

4.2v 8mm DC Gear Motor Small Planetary Gearbox For Home Appliance

Product specification:OD8MM planetary gearboox

Voltage: 2.5-6V( can customize)

Ratio: 4-809
Output speed: 14-3111r/min

The new R&D planetary gearbox within metal and plastic shell, At present, we have the following items:

The technical paratmeters of 8mm gearbox motor
Item Number Use scope Voltage Rated Voltage No-load current/mA No-load speed/rpm Load Torque/g.cm Load Speed/rpm Load current/mA Output Power Gear Ratio
DA008008-47 2.5-6V 4.2V 75 351 46 253 130 0.12 47:1
DA008008-69 2.5-6V 4.2V 75 237 68 171 130 0.12 69:1
DA008008-102 2.5-6V 4.2V 75 160 101 115 130 0.12 102:1
DA008008-152 2.5-6V 4.2V 75 108 150 78 130 0.12 152:1
Note: The technical paratmeters can be customized according to client's requirement.

Description

Parameters

diameter

8mm

motor

DC brush motor

noise level

less than 60dB at the 30cm distance

life time

300 hours

working temperature

-40 to 95℃

tolerance

<0.3mm

Certification

ROHS/ISO9001/ISO14001/SGS/TS16949

Suitable for

Robot, Hair curler, Respirator, Automatic door & window, Monitoring equipment, and etc.

OSD Language

English, French, German, Italian, Russian, Spanish, Portuguese, Dutch, Greek, Japan, Korean

The basic specifications for reference only, specifications can be customized.
